Ensure accurate routing: Map each conductor path with precise measurements, avoiding sharp bends and overlaps. Maintaining uniform spacing prevents localized overheating and guarantees consistent thermal distribution along the entire run.
Select proper voltage and amperage: Match the cable specification to the circuit capacity, considering environmental conditions. For industrial installations, using a thermostat with integrated monitoring ensures reliable operation and prevents energy waste.
Integrate protective devices: Install ground-fault interrupters and fuses at strategic points to safeguard against short circuits and leakage currents. Positioning sensors along critical junctions provides early detection of anomalies, reducing maintenance downtime.
Plan connectors and terminations: Use pre-approved junction kits and weatherproof sealing for outdoor or wet locations. Ensure mechanical stability and secure clamping to prevent conductor movement during thermal expansion or vibration.
Document routing schematics: Create labeled schematics with color codes and identifiers for each segment. Reference these maps during inspections and future expansions to maintain consistent operational standards and compliance with electrical codes.

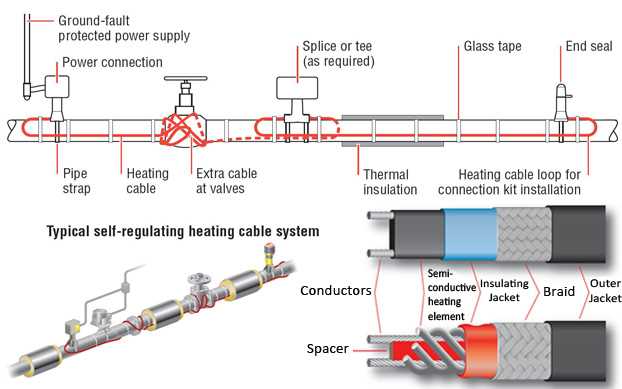

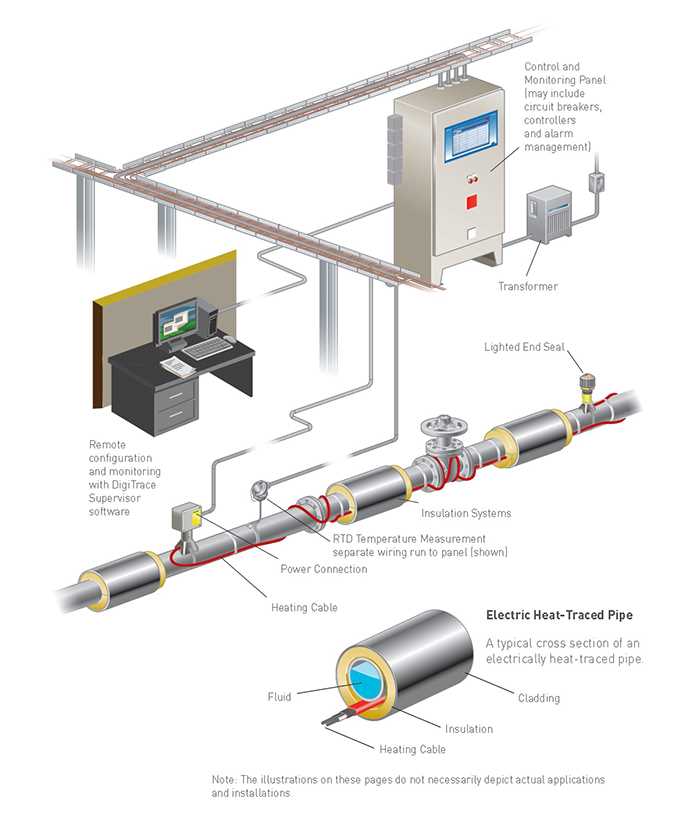

Heat Trace Configuration Layout

Connect the self-regulating conductor directly to a dedicated 240V circuit with a 20A breaker. Ensure that each segment is fused separately if running multiple lines in parallel to prevent overloads. Use stranded copper leads with at least 12 AWG gauge for runs longer than 50 feet to minimize voltage drop.
Install thermal sensors at both the midpoint and the end of each line. These sensors must be rated for -40°C to +65°C and positioned away from insulation compressions. Avoid placing the monitoring units near metal clamps that can conduct heat unevenly, creating inaccurate readings.
Route the conductor in a serpentine pattern over metal piping, maintaining a 2-inch separation from overlapping segments. All connection points must be secured with high-temperature rated crimp terminals and insulated with silicone sleeves to prevent short circuits under moisture exposure.
Grounding is mandatory. Attach the grounding wire to the metal pipe using a corrosion-resistant clamp, ensuring continuity throughout the length. Use a dedicated ground bus in the control panel to isolate the system from other electrical circuits, reducing interference and preventing stray currents.
Label every lead at both ends with voltage, length, and sensor position. Maintain an installation log noting start and end points, thermal sensor placement, and connection torque. Regularly inspect the assembly for insulation wear or loose terminations, especially after thermal cycling, to guarantee reliable operation over time.
Choosing the Right Power Supply for Your Heat Control System
Select a supply rated at least 20% above the total load of your system to prevent voltage sag during peak operation. For a 1500 W heating circuit, a 1800–2000 W transformer or switch-mode unit ensures stable output. Confirm compatibility with single-phase or three-phase sources depending on your installation layout.
Voltage matching is critical: most circuits operate at 120 V, 208 V, or 240 V. Using a supply with incorrect voltage can trigger circuit protection or degrade cable longevity. If multiple lengths of conductive elements are powered in parallel, calculate cumulative wattage rather than assuming uniform distribution.
Temperature-rated enclosures safeguard the supply in outdoor or industrial environments. Units with NEMA 4X or IP66 ratings resist moisture, dust, and mechanical stress. Include a dedicated breaker sized to the supply’s maximum current, and consider an RCD or GFCI for added protection against leakage currents.
Efficiency affects energy costs and system stability. Low-voltage drop units reduce thermal loss along the conductors. For circuits exceeding 50 ft, choose a supply with built-in current limiting or remote sensing terminals to maintain uniform performance along extended lengths of the conductive network.
