To design a reliable binary adding system, first understand the difference between basic components that handle bitwise operations. A simple adding unit only processes two input bits, whereas a more complex one can handle the carry-in as well, allowing for the addition of multi-bit numbers.
For the simpler version, focus on creating a logic system that handles the sum of two bits and outputs the result alongside a carry. This unit typically involves basic logic gates, like XOR and AND, to produce the correct sum and carry outputs. By understanding the behavior of these components, you can efficiently integrate them into larger systems.
The second, more advanced version, incorporates an additional input for the carry bit from a previous addition. This configuration ensures that a full range of multi-bit binary numbers can be added, managing overflows without manual intervention. Both types can be used as building blocks for arithmetic circuits that perform larger operations in computers and digital systems.

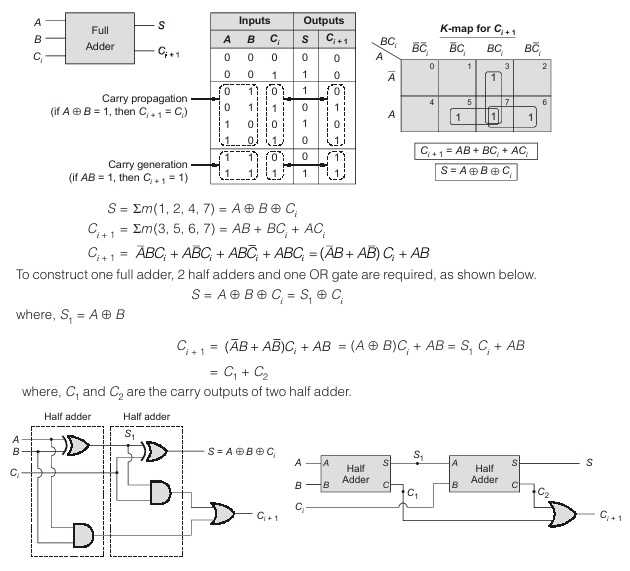

Half Adder and Full Adder Circuit Diagram
To build a binary adding system, first focus on the fundamental unit responsible for adding two single bits. This unit outputs the sum and carry using logic gates such as XOR for the sum and AND for the carry. The key aspect to ensure is that the sum bit is calculated while the carry bit is correctly passed for the next calculation.
The more advanced adding system involves the addition of a carry input, allowing it to handle multi-bit additions. This configuration typically uses an additional OR gate to combine the carry from the previous step with the current calculation. The result is a more robust system capable of handling larger binary numbers without the risk of overflow errors.
To optimize these systems for real-world applications, make sure that the gates are appropriately configured. The XOR gate in the first unit ensures that the sum is accurate, while the AND gate handles the carry logic. The second unit, featuring a carry input, can be used in a chain of operations to add multiple numbers in sequence.
These two systems–one with only basic inputs and the other with an additional carry-in–are the building blocks for more complex arithmetic circuits. Understanding the functioning of each bit-wise operation can help in constructing processors or any digital system that requires binary arithmetic at the core of its operations.
Understanding the Functionality of a Half Adder Circuit
A basic adding unit operates by processing two binary inputs, typically denoted as A and B. The primary output consists of two signals: the sum and the carry. The sum output is generated using an XOR gate, which performs the bitwise addition, while the carry is produced by an AND gate, indicating whether there is an overflow from the addition.
The XOR gate outputs a high signal (1) if exactly one of the inputs is high (1), meaning it effectively calculates the sum bit. If both inputs are low or both are high, the XOR gate outputs a low (0). The AND gate, however, only outputs a high (1) if both inputs are high (1), thereby generating the carry bit that will be used in subsequent addition stages.
To understand its practical use, imagine adding the binary numbers 1 and 1. The XOR gate outputs a 0 for the sum, and the AND gate outputs a 1, representing the carry. This process helps prevent overflow by carrying the excess bit into the next stage of addition, which is critical in larger systems.
This unit’s main limitation is its inability to handle a carry-in, which is necessary for adding more than one binary number or handling multi-bit addition. For this reason, more complex units build on this basic design by incorporating additional carry inputs.
The simplicity of this unit makes it ideal for fundamental digital systems. It is often used in various arithmetic operations where binary addition is required, from basic computational tasks to more advanced processor designs. It is a foundational block for understanding more sophisticated logic circuits used in digital systems.
