For smooth installation and operation, ensure that the power to your system is completely turned off before starting any connections. Double-check the wiring connections by referring to the color-coded labels on each terminal. This will help you avoid potential issues when activating your system for the first time.
Start by identifying the connections for your heating and cooling system. In most setups, a few key wires such as R, C, Y, and W need to be connected properly to ensure correct function. For example, the red wire (R) typically goes to the power terminal, while the white wire (W) connects to heating. Proper identification and attachment of these wires are critical for the system’s operation.
If you’re upgrading an old system, compare the existing wiring setup with the new system’s requirements. You may need to adjust certain connections or even replace old wires to accommodate the newer model. In this case, ensure compatibility by verifying the manual or online resources provided by the manufacturer.
Lastly, always check for any loose connections after installation. Loose connections can result in intermittent power loss or improper functioning. After ensuring everything is securely connected, proceed with configuring your settings via the interface. If you face any issues, troubleshooting guides or professional support are recommended for a quick resolution.
Wiring Connections for Your Smart Control System
Start by identifying the power terminal (typically labeled “R”) and connecting the red wire. Then connect the cooling wire (usually “Y”) to its appropriate terminal, ensuring it’s firmly secured. For heating systems, attach the white wire (labeled “W”) to the designated heating terminal. Always ensure the blue wire is connected to the “C” terminal, which provides a continuous power supply.
After making these primary connections, double-check the wiring based on the model’s manual to confirm that each wire corresponds to the correct terminal. Incorrect connections can cause the system to malfunction or not work at all. Once everything is in place, power up the system and test the functionality by adjusting the temperature settings. If problems persist, it’s recommended to consult a professional technician for assistance.
How to Connect Your Smart Control System to the HVAC Setup
Begin by turning off all power to your HVAC system to avoid any electrical issues or safety concerns. Once the power is off, remove the old control unit from the wall, keeping track of which wires are connected to each terminal. Take a photo of the existing connections for reference if needed.

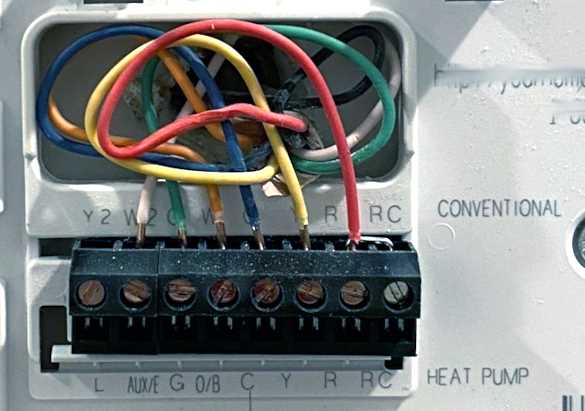

Identify the terminals on your new control unit. Commonly, these include terminals for heating, cooling, and a common terminal (often labeled “C”). Match each wire from your HVAC system to the corresponding terminal on the new unit. For instance, connect the red wire to the “R” terminal, the cooling wire to “Y”, and the heating wire to “W”.
If your system includes additional functions like a fan or humidity control, ensure the corresponding wires are connected properly. These functions are usually labeled clearly, such as “G” for the fan. Double-check the wire labels on both the HVAC system and the new unit to ensure accuracy.
Once all wires are connected, securely fasten them to prevent any loose connections. Ensure that each wire is tightly secured to its respective terminal to avoid any intermittent connection issues, which could result in malfunctioning or erratic performance.
After securing the wires, mount the new unit to the wall, aligning it with the previously marked holes. If the unit requires a mounting plate, ensure that it is attached firmly to the wall, then attach the main unit to the plate.
With everything securely mounted, restore power to your HVAC system and test the connection by adjusting the temperature settings. Check that the system responds correctly to changes, activating the heating or cooling as per the settings.
If the system doesn’t respond as expected, double-check all connections for any loose wires or misplacements. Refer to the unit’s manual for troubleshooting tips, or contact a technician if the problem persists.
