If you are working with electrical outlets that require ground fault protection, make sure you connect them properly to avoid potential hazards. Start by turning off the power at the circuit breaker before making any adjustments. This ensures safety during installation and prevents accidental shocks.
When installing a protection device for electrical outlets, pay close attention to the line and load terminals. The line side receives power from the circuit, while the load side connects to additional outlets. Incorrectly wiring these terminals can lead to a nonfunctional outlet or, worse, electrical hazards.
It’s also important to verify the connections to ensure a tight fit, as loose connections can result in malfunctioning outlets or fire hazards. For proper grounding, make sure the ground wire is securely attached to the designated terminal, and that no exposed wiring is present to avoid short circuits.
After installation, test the setup with a proper tester to confirm it is working. This will help you detect any mistakes in the installation process and avoid unexpected electrical failures in the future. If you are uncertain about the wiring process, consider hiring a licensed electrician to guarantee the safety and functionality of the system.
GFCI Wiring Diagram Guide

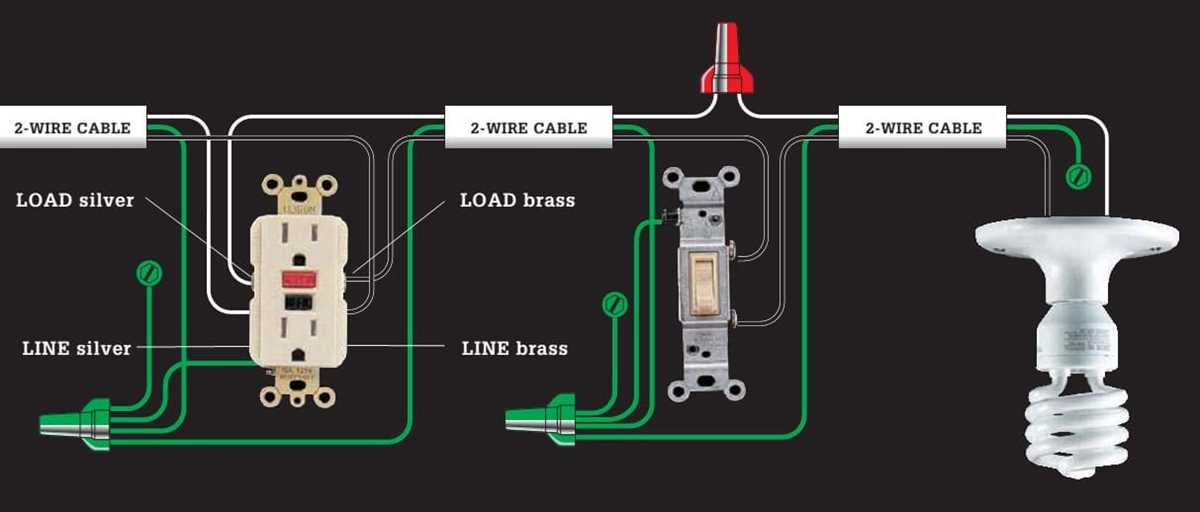

When connecting outlets with ground fault protection, always ensure that the incoming power lines are correctly attached to the “line” terminals. These terminals are typically marked and are the points where the current enters the device. Misconnecting these can prevent the protection feature from functioning properly.
Next, the “load” terminals must be connected to the downstream outlets or devices that need protection. It’s crucial not to confuse these with the line terminals, as reversing these connections will result in an inoperative safety feature for the connected devices.
Ensure that the ground wire is attached to the designated ground terminal. The ground connection is vital for the safety of the system, as it provides a path for excess electricity to flow harmlessly into the earth in case of faults.
For extra safety, check all connections twice before turning on the power. Loose connections can create potential fire risks or prevent the safety mechanism from working as designed. Tighten all screws securely to avoid any hazards.
After confirming that all wiring is correct, it’s important to test the protection device. A simple tester can be used to verify if the device trips when it should, ensuring the outlet is providing the intended protection against electrical faults.
If you are using the device in a high-humidity area, such as a kitchen or bathroom, consider using a weatherproof box and cover to protect the electrical connections from moisture. This is especially important in areas prone to splashes or exposure to water.
Always use the proper rated devices for the intended circuit. For example, a 15-amp device should only be used in a 15-amp circuit. Using mismatched devices and circuits could result in malfunctions or failure to meet safety standards.
If unsure about the process, don’t hesitate to consult with a certified electrician. They can ensure that all components are correctly installed and that the safety system works as intended, minimizing the risk of electrical hazards in your home or building.
How to Wire a GFCI Outlet Step by Step

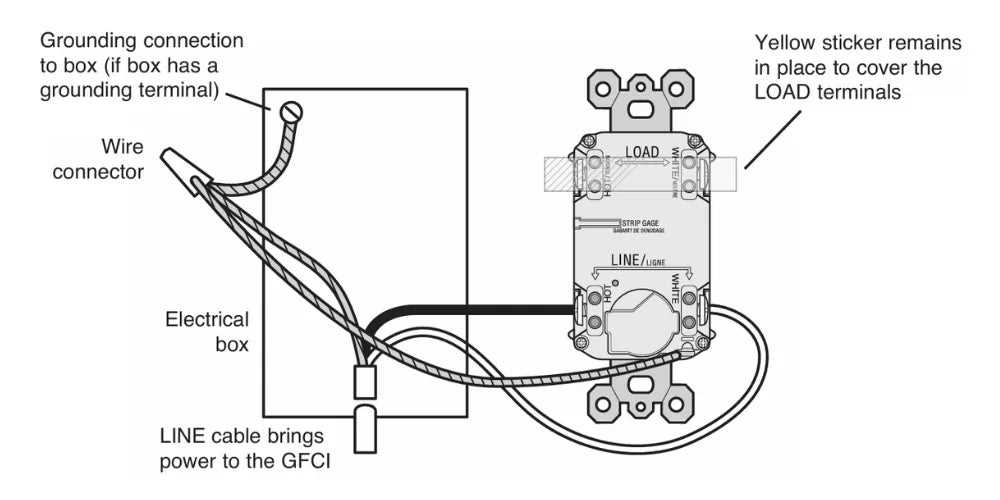

Start by turning off the power at the circuit breaker to avoid any electrical accidents. Then, remove the existing outlet cover and unscrew the outlet from the electrical box. Next, inspect the incoming wires and note which are live, neutral, and ground. Typically, black is live, white is neutral, and green or bare copper is ground. Attach the live wire to the “line” terminal, the neutral wire to the other “line” terminal, and the ground wire to the designated ground terminal on the device.
After making all connections, carefully screw the outlet back into the box and replace the cover. Turn the power back on at the circuit breaker. Test the outlet by using a tester or plugging in a device. Press the test button on the device to ensure it functions correctly. If the device trips when you press the test button, the connection is successful, and the outlet is properly set up to protect against electrical faults.
