Implement a voltage-interrupting switch with built-in reclosing functionality for uninterrupted service in medium-voltage distribution networks. Select a switching device rated for at least 15 kV with a trip current capacity matching the feeder load, and integrate a timing controller capable of up to three reclosing attempts within a 5–10 second interval.
Incorporate protective relays with adjustable thresholds to detect transient faults and avoid unnecessary trips. Ensure the relays communicate with the trip mechanism to isolate only the affected section, preventing widespread outages.
Use electromechanical or solid-state mechanisms depending on maintenance requirements. Electromechanical units provide robustness in harsh environments, while solid-state versions offer programmable settings and precise timing control. Proper coordination with upstream and downstream isolators guarantees selective fault management.
Install monitoring points for voltage, current, and trip events to facilitate diagnostics. Integrating these sensors allows for automated logging of interruptions and rapid restoration sequences, reducing downtime and improving reliability of the distribution network.

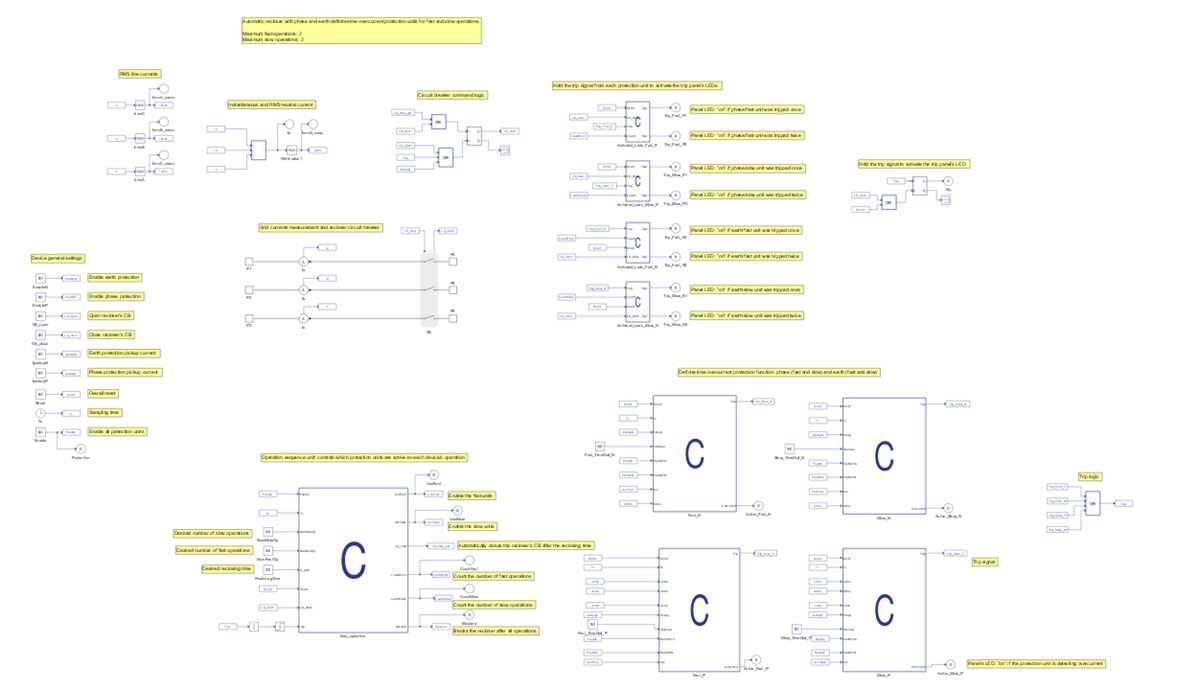

Auto Reclosing Control Layout
Integrate a three-phase protection relay directly with a solenoid-operated switch to allow automatic restoration after transient faults. Ensure the relay is rated for the line voltage, typically 11 kV to 33 kV, and features adjustable timing for the trip and closing sequences.
Use current transformers on each phase to feed the monitoring unit, providing real-time feedback on load and fault conditions. Position the transformers at least one meter from any high-voltage bus to avoid electromagnetic interference that could trigger false operations.
The switching mechanism should include a spring-charged actuator capable of performing up to three consecutive closures without manual intervention. Limit the inter-trip interval to 0.5–2 seconds to prevent system instability while allowing sufficient time for temporary faults to clear.
Control Panel Layout
Incorporate a timer module that records each trip event with phase-specific fault details. Connect the timer to a visual indicator panel for immediate identification of problem phases. This setup helps maintenance teams isolate issues without disrupting the entire feeder.
Integrate an auxiliary power supply, preferably 24 V DC with battery backup, to ensure that the switching sequence completes even during short-term utility power interruptions. Include fuses rated slightly above the operational current of the relays to protect control electronics without nuisance tripping.

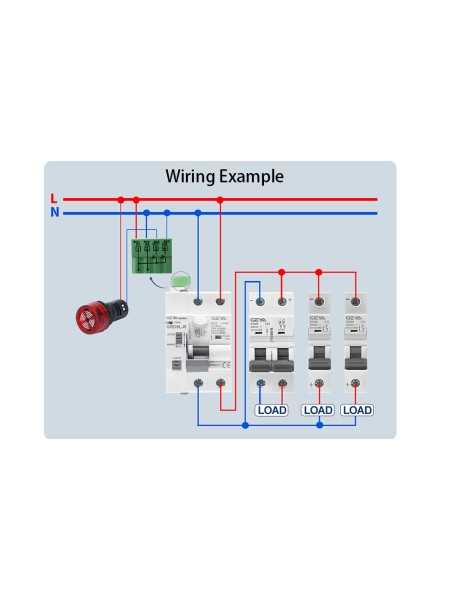

Wiring Recommendations
Route signal cables separately from high-voltage conductors to reduce induced voltages. Use shielded wires for communication between the monitoring unit and the actuator to maintain signal integrity. Label each connection with phase and function identifiers to simplify troubleshooting and future modifications.
Choosing Components for a Reliable Switching Device
Select vacuum or SF₆ circuit interrupters rated at least 20% above the system’s maximum fault current to prevent premature wear. Ensure dielectric strength meets a minimum of 36 kV for medium-voltage lines to withstand transient overvoltages.
Pick control relays with dual redundancy and a response time under 10 milliseconds. Mechanical relays should have a minimum operational life of 100,000 cycles, while solid-state relays must tolerate voltage spikes of up to 1.5 times nominal line voltage.
For sensors, use Rogowski coils for current detection in systems above 15 kV. Their linear response avoids saturation and allows precise fault measurement without adding significant insertion impedance. Hall-effect sensors can supplement for low-voltage monitoring.
- Use surge arresters rated 10% above line-to-ground voltage.
- Install thermal cutouts with trip curves matching conductor rating.
- Choose insulating materials with tracking index over 600 for outdoor exposure.
Capacitors for snubber networks should be polypropylene, 1 µF per phase, with voltage ratings 25% above nominal. This reduces switching transients and limits inrush currents during reclosing cycles. Resistors must handle at least 5 kW peak for 10 ms intervals.
Power supplies should maintain ±2% voltage regulation under 50% load fluctuation. Backup capacitors must provide at least 2 seconds of hold-up time to support relay operation during short disturbances.
Wire gauge selection: minimum 2 AWG copper for main paths and 14 AWG for control loops. Terminals must be vibration-resistant and rated for 150% of operating current to prevent overheating under repeated switching events.
