To build a stable voltage control system, focus on selecting the right components. Use a transformer with appropriate ratings to step down the input voltage, followed by a rectifier to convert AC to DC. Next, integrate a voltage regulator to ensure a steady output, even with load fluctuations.
Connect a control unit to monitor voltage levels and adjust the system accordingly. An optocoupler or a transistor circuit can be used for voltage sensing. Ensure that the feedback loop is responsive to small changes in voltage to maintain stability.
When designing this system, pay close attention to filtering capacitors, as they will smooth out any ripple that may occur after rectification. Choosing the right capacitor values will improve the overall performance of the voltage regulation stage.
Building a Stable Voltage Control System
Begin by selecting an appropriate transformer with the correct voltage rating. A step-down transformer should reduce the input voltage to a manageable level. Ensure the transformer can handle the expected load without overheating. If the input voltage is high, consider using a multi-stage transformer to avoid excessive strain on a single component.
The next step is converting AC to DC. This is done using a bridge rectifier consisting of four diodes arranged in a specific configuration. The rectifier must be rated for the peak input voltage to prevent diode failure. Make sure to include heat sinks to dissipate heat generated during the conversion process.
Choosing the Right Voltage Regulator
Once rectified, the voltage needs to be regulated. A voltage regulator ensures that the output remains constant despite changes in the input voltage or the load. For small loads, a linear regulator is ideal due to its simplicity and low noise. For larger loads, a switching regulator may be more efficient, as it generates less heat.
- Linear regulators: Best for small devices and low-current applications.
- Switching regulators: Recommended for larger systems with varying loads.
For the feedback loop, use operational amplifiers (op-amps) to monitor the output voltage. The op-amp compares the output to a reference voltage and adjusts the regulator accordingly. Ensure that the op-amp chosen can handle the expected voltage range for accurate regulation.
Stabilizing with Feedback and Filters
Incorporate capacitors at both the input and output stages to filter any noise or ripple that may appear after rectification. Electrolytic capacitors with high capacitance values are best for smoothing low-frequency ripple, while ceramic capacitors work well for high-frequency noise.
Proper placement of these capacitors is key to the system’s performance. Position them close to the voltage regulator to ensure that any ripple is quickly suppressed. A low-pass filter can also be added to the feedback loop to improve the accuracy of the feedback signal.
- Use low ESR (equivalent series resistance) capacitors to ensure stable operation.
- A low-pass filter with the correct cutoff frequency will improve response time and stability.
When selecting components, always ensure that their ratings are appropriate for the system’s voltage and current requirements. Choosing undervalued components can lead to overheating, inefficiency, and potential failure of the entire system.

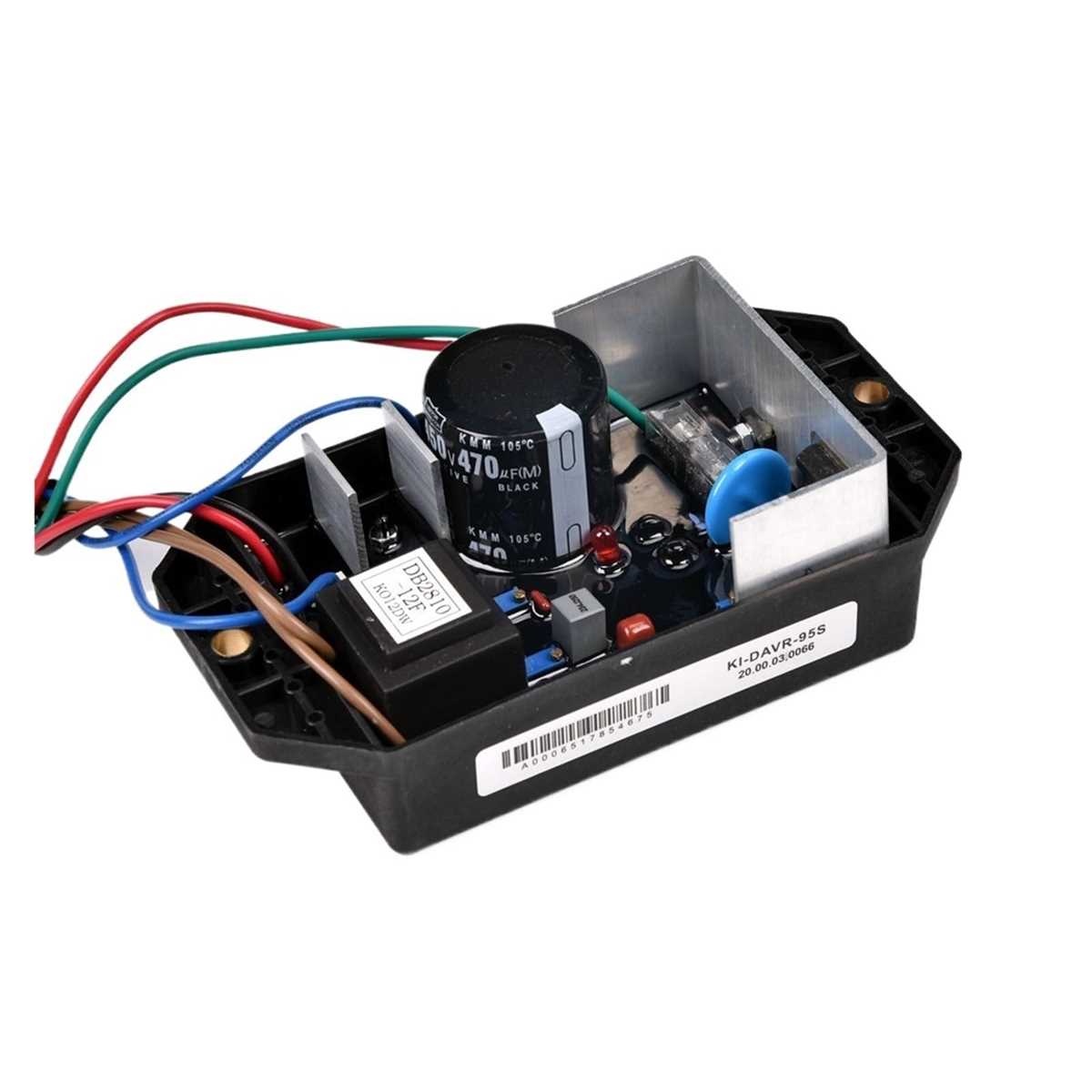

How to Design an AVR Generator Circuit for Stable Voltage Control
To achieve stable voltage output, start by choosing the appropriate transformer that can handle the input voltage and current demand. A step-down transformer is typically used to reduce the AC voltage to a lower level. Ensure that the transformer has the correct power rating to prevent overheating or inefficient operation.
Once the AC voltage is reduced, you’ll need to convert it to DC for easier regulation. This is done using a bridge rectifier with four diodes. Each diode should be rated for the peak input voltage to prevent breakdowns. Proper heat dissipation for the diodes is necessary, especially under high loads.
Selecting the Voltage Regulation Components
Voltage regulation can be done using a dedicated voltage regulator or by using a combination of components. For precise control, a linear voltage regulator works well for small loads, while a switching regulator is better for handling larger, variable loads. Choose the regulator based on the desired output tolerance and current capacity.
The regulator will require feedback to adjust the output voltage. This is done through a feedback loop that compares the output voltage to a reference voltage. Use an operational amplifier or comparator for this task. The feedback system ensures the output remains steady even if the input or load changes.
Adding Filtering for Stability
After rectification and voltage regulation, you need to smooth out any ripples in the DC voltage. Use capacitors at both the input and output stages. Electrolytic capacitors are ideal for handling larger capacitances, while ceramic capacitors can filter high-frequency noise effectively. Place the capacitors as close to the voltage regulation components as possible to improve performance.
For further stabilization, consider adding a low-pass filter in the feedback loop. This helps in reducing high-frequency noise and improving the accuracy of the feedback signal, which ensures the output voltage remains steady under varying load conditions.
Finally, always verify the voltage ratings of all components. Ensure that the regulator, diodes, and capacitors are rated for the expected operating conditions. Underrating components can lead to overheating, component failure, or instability in voltage control.
