Identify power, ground, and speaker leads with a multimeter before connecting any dashboard audio unit. Sport utility models from this manufacturer often use a multi-pin plug behind the center console that groups battery supply, ignition power, illumination, and speaker outputs. Correct identification prevents blown fuses and distorted sound.
Many vehicles in this series follow a recognizable color pattern. A yellow conductor usually carries constant 12-volt battery supply that keeps memory settings active. The red or red-black lead typically receives switched power from the ignition circuit. Ground is commonly black or black-green and connects to the chassis behind the dashboard.
Speaker channels appear as color pairs where a solid conductor marks positive and the striped version marks negative. Front left often uses white and white-black, front right gray and gray-black, rear left green and green-black, and rear right purple and purple-black. Maintaining polarity keeps bass response strong and prevents phase cancellation between speakers.
Dashboard connectors in these SUVs often include 16 or 20 pins arranged in two rows. Upper positions normally carry power and control signals such as antenna activation or panel lighting, while lower positions route sound output channels. Adapter plugs designed for this platform allow installation of an aftermarket head unit without cutting factory conductors.

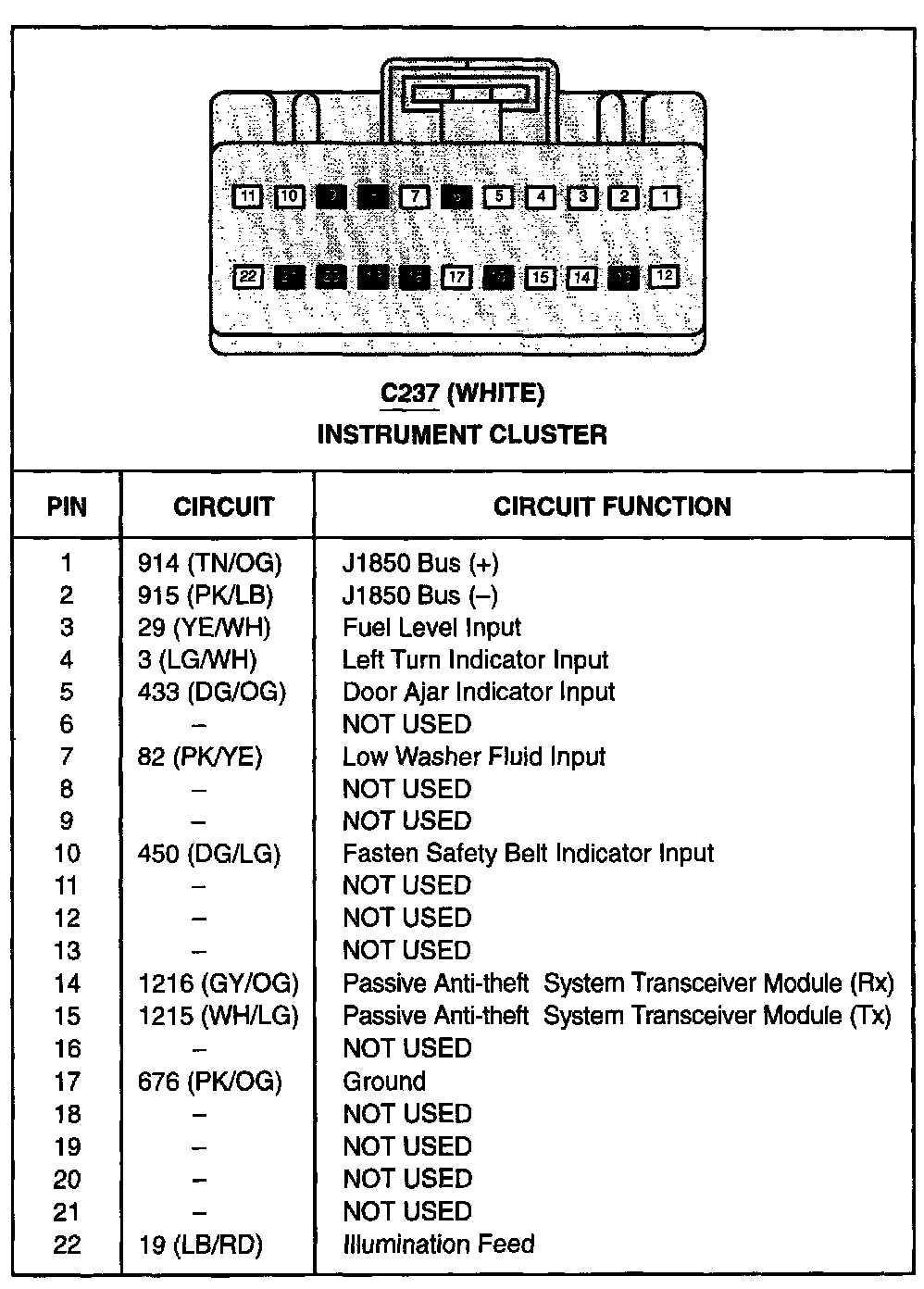

Ford Explorer Radio Wiring Diagram With Color Codes and Connector Pin Layout
Check conductor colors and connector positions before installing any dashboard audio receiver. Sport utility vehicles from this model line usually include a rectangular multi-pin plug behind the center console. This plug groups battery supply, ignition power, ground, antenna control, illumination, and speaker channels in fixed pin locations.
Typical power and control conductors
Most model years from the early 2000s through the mid-2010s follow a consistent color scheme. These conductors power the head unit and activate related components.
- Yellow – constant 12-volt battery supply for memory
- Red or red-black – ignition switched power
- Black – chassis ground connection
- Blue – power antenna or external amplifier trigger
- Orange or orange-black – dashboard illumination signal
The connector block behind the dashboard often contains 16 pins arranged in two rows. Upper positions usually carry power and control lines, while lower positions route audio output channels. Pin numbering typically begins at the upper left corner when the locking tab faces upward.
Speaker channel conductor pairs
Each speaker uses a pair where the solid color marks positive and the striped lead marks negative polarity.
- White and white-black – front left speaker
- Gray and gray-black – front right speaker
- Green and green-black – rear left speaker
- Purple and purple-black – rear right speaker
Test voltage before connecting the receiver. Battery supply should read around 12 to 12.6 volts with ignition off. The switched lead should show voltage only after the key is turned to ACC or RUN. If both lines remain live constantly, the memory circuit may drain the battery.
Use a vehicle-specific adapter plug rather than cutting factory conductors. Adapter kits connect directly to the dashboard connector and include labeled leads for each channel, which simplifies installation and allows removal of the audio unit without altering the original electrical system.
Ford Explorer radio wire color codes for power ground and speaker channels by model year
Check the vehicle production year before connecting any dashboard audio receiver. Color assignments remain similar across many SUV generations from this manufacturer, yet some early and later models shift ignition power or illumination leads to different shades. Identifying the correct set prevents fuse damage and silent speakers.
1998–2005 model years
Vehicles produced during this period typically use a yellow conductor for constant battery supply and a red-black lead for ignition power. Ground is usually black or black-green attached to a chassis point behind the center console. Speaker channels follow standard color pairs: white and white-black for front left, gray and gray-black for front right, green and green-black for rear left, and purple with purple-black stripe for rear right.
2006–2015 model years
Later versions keep a similar layout but sometimes move the ignition feed to a solid red lead. Illumination may appear as orange or orange-black connected to the dashboard light circuit. Some trims equipped with a factory amplifier include a blue or blue-white conductor that activates the amplifier once the head unit powers on.
Confirm polarity for each speaker pair. The solid conductor normally connects to the positive terminal, while the striped version marks negative. Reversed polarity weakens bass output because speaker cones move in opposite directions.
Measure voltage with a multimeter before attaching the receiver. Battery supply should show about 12 volts with the key removed, while the ignition lead becomes live only in ACC or RUN position.
