Check the cable positions on the drive direction selector before reconnecting any conductor. On most electric golf carts this component routes current from the battery pack to the traction motor through different contact paths, which determines rotation direction. Incorrect cable placement can cause the motor to spin the wrong way or prevent the vehicle from moving.
The selector assembly usually contains several heavy terminals connected to large gauge cables. These terminals route high current from the battery pack through the motor armature and field windings. Many models operate on 36-volt or 48-volt systems, so the cables must handle substantial current during acceleration.
Changing the handle position alters the path between the armature and field coils inside the traction motor. By reversing the polarity applied to one of these windings, the motor shaft rotates in the opposite direction. This mechanical selector performs the polarity change without complex electronics.
A clear connection layout showing terminal numbers, cable routing, and motor leads helps diagnose drive problems. Tracing each cable from the battery pack to the selector assembly and then to the traction motor reveals faults such as burned contacts, loose terminals, or damaged high-current cables.

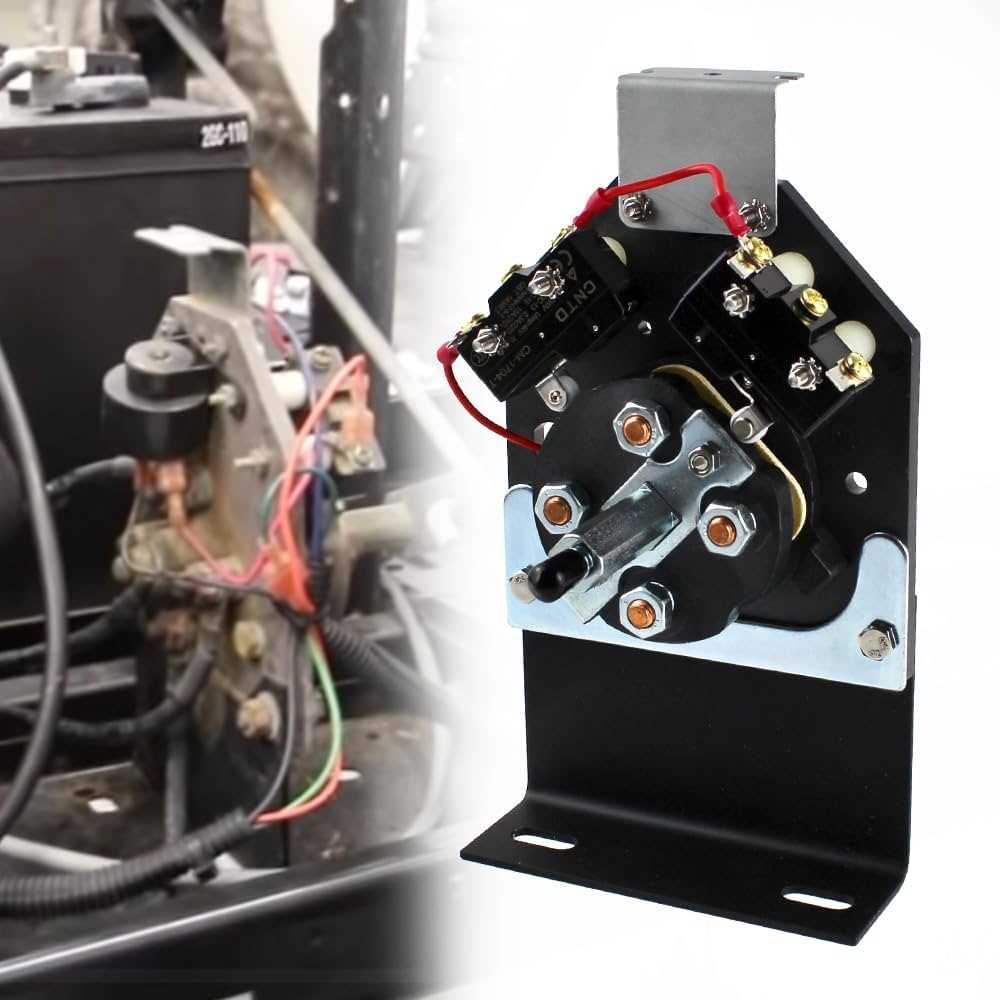

Ezgo Forward Reverse Switch Wiring Diagram With Terminal Layout and Motor Direction Control
Verify the position of each heavy cable on the drive direction selector before tightening the terminal nuts. The assembly typically connects the battery pack, the traction motor armature lead, and the field winding leads through several copper contact plates. These connections carry the full drive current, which may exceed 200 amps during acceleration on a 36-volt or 48-volt golf cart system.
The selector mechanism changes rotation by altering how current flows through the motor windings. In one handle position the armature and field coils receive current in the same orientation, producing normal wheel rotation. Moving the lever to the opposite position reroutes one of the windings so polarity flips, forcing the motor shaft to spin in the opposite direction. This mechanical contact system performs the polarity change instantly without electronic controllers.
A typical terminal layout includes two battery pack leads, two motor field connections, and one armature lead routed through the contact assembly. Burned contacts, loose copper lugs, or overheated cables interrupt this current path and cause loss of drive or movement in only one direction. Tracing each conductor from the battery pack to the selector unit and then to the traction motor allows quick identification of damaged cables or worn contact plates.
Ezgo forward reverse switch terminal connections and cable routing on golf cart drive system
Identify each terminal stud on the direction selector before attaching any cable. Most golf cart drive systems use five large copper posts: two from the battery pack, two from the motor field windings, and one armature lead. Use 4-gauge or 6-gauge conductors with clean ring lugs, tighten nuts firmly, and keep cable insulation away from moving parts under the seat compartment.
Battery pack and motor cable placement
The positive lead from the battery pack usually enters the contact assembly through a dedicated power post. From there the internal copper plates redirect current to the armature terminal and to one of the field winding connections depending on lever position. The remaining field cable connects directly to the motor housing terminal. Incorrect placement causes immediate drive loss or rotation in the wrong direction.
Cable routing and protection
Route high-current conductors along the frame rail and secure them with rubber-lined clamps every 20–30 cm. Avoid tight bends near the contact assembly and maintain clearance from suspension arms and steering components. Heat marks on insulation, loose ring terminals, or darkened copper studs indicate high resistance at the connection point and require cleaning or cable replacement.

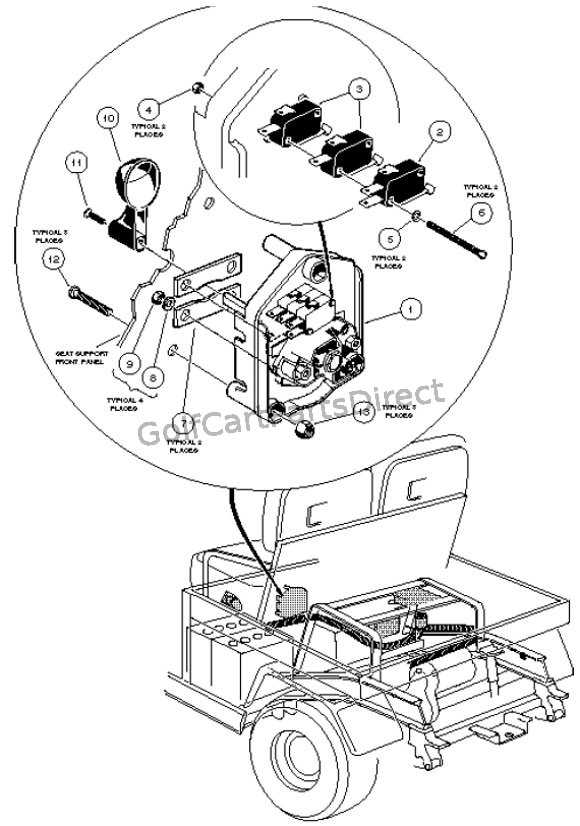

How Ezgo forward reverse switch changes motor rotation through controller and battery pack connections
Move the drive direction lever only after the cart has fully stopped, otherwise high current passes through the contact plates and damages them. The selector unit redirects current from the battery pack through the controller and traction motor, changing the polarity relationship between the armature and field windings.
The controller regulates motor speed by adjusting current flow from the battery pack. The direction selector sits between the controller output and the motor leads. By rearranging how the field coil connects to the armature circuit, the motor shaft turns in the opposite direction.
Current path during normal drive
In the standard drive position the electrical path typically follows this order:
- Battery pack positive cable
- Speed controller output terminal
- Contact assembly inside the direction selector
- Motor armature terminal
- Field winding connection
- Return cable to the battery pack negative
This configuration aligns magnetic fields in the armature and field coils so the motor rotates in the normal travel direction.
Current path after lever movement
Moving the lever shifts the copper contact plates inside the selector unit. This action swaps the polarity applied to the field winding while the armature polarity remains unchanged. The magnetic interaction inside the traction motor changes orientation, forcing the shaft to rotate the opposite way.
- Battery pack supplies power through the controller
- Controller output enters the contact assembly
- Internal copper plates reroute the field coil connection
- Field polarity flips relative to the armature
- Motor rotation direction changes
Loose lugs, burned copper contacts, or melted insulation increase resistance in this circuit. High resistance reduces current flow and produces symptoms such as weak acceleration, motion in only one direction, or complete loss of drive.
