Connect input signals A and B to the designated pins ensuring stable voltage levels between 0 and 5 volts. Use short jumper leads to minimize interference and maintain signal integrity.
Assign the control line to the selector’s control input accurately. Apply a logic HIGH to select input B and logic LOW to select input A, verifying that the transitions are clean without oscillation or noise.
Ensure proper grounding by linking the common reference to the negative rail. This prevents floating voltages that could cause unpredictable output behavior.
Power the selector module with regulated DC supply, checking current ratings do not exceed the module specifications. Avoid reverse polarity to protect internal logic components.
Test the output using a multimeter or logic probe. Switch the control line between HIGH and LOW while monitoring the output to confirm correct signal routing from the selected input to the output.
2 Input 1 Output Multiplexer Setup and Connection Guide
Connect the two signal inputs directly to the module pins, ensuring each source maintains a stable voltage level between 0 and 5 volts. Use short, insulated leads to prevent cross-talk and reduce signal degradation over distance.
Link the control pin to a reliable logic source. Apply HIGH or LOW levels precisely to select the corresponding input, and verify transitions using an oscilloscope or logic probe to avoid glitches at the output.
Ground the module properly by connecting the common reference to the negative rail of the power supply. This stabilizes the signals, prevents floating voltages, and ensures accurate routing of the selected input to the output terminal.

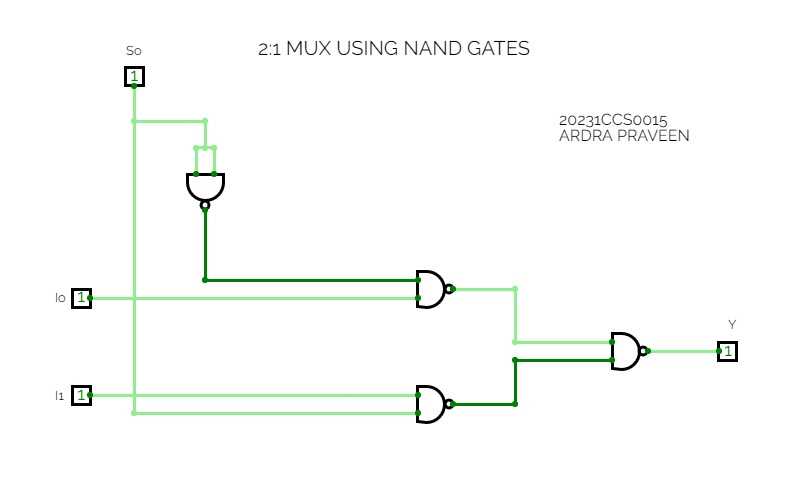

Selecting Components and Logic Gates for 2 to 1 Multiplexer
Use standard TTL or CMOS logic chips with guaranteed propagation delay below 20 nanoseconds to maintain timing accuracy. Choose resistors between 330Ω and 1kΩ for input protection and ensure the power supply provides a clean 5V regulated output to prevent logic errors.
Combine AND, OR, and NOT gates to implement the selection logic. For example, route each input through an AND gate controlled by the selection line, then merge the outputs with an OR gate to produce a stable output signal suitable for downstream components.
