To design a stable frequency generator, start by understanding the core components involved. The basic setup requires a transistor, a feedback network, and a combination of capacitors and inductors. The frequency output is determined by the resonance of the LC tank circuit, which consists of these components. Pay careful attention to the values of the inductance and capacitance to ensure accurate frequency generation.
The feedback network plays a crucial role in maintaining oscillations. This can be achieved using a combination of resistors and capacitors to control the phase shift and gain. Adjusting the feedback ratio allows you to fine-tune the amplitude and frequency stability of the output. It’s important to select high-quality components to avoid drift and ensure reliable performance over time.
Once the components are selected and wired correctly, testing and fine-tuning the system are essential. Use an oscilloscope to monitor the frequency output and adjust the component values to achieve the desired signal. With proper setup, this configuration can be used in a variety of applications, such as in signal generation for communications or clock circuits in digital devices.

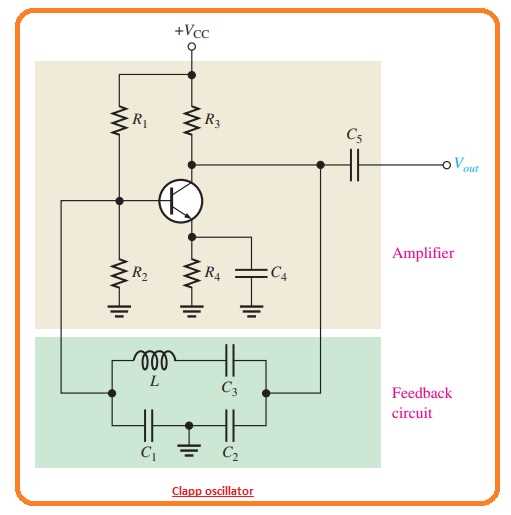

Clapp Oscillator Circuit Diagram
To begin with building a stable frequency generator, focus on using a transistor as the active component. The configuration requires a feedback network and a tank circuit, which typically includes a combination of inductance and capacitance. The key is to ensure that the values of the inductor and capacitor are carefully selected to define the desired frequency range. Using a variable capacitor can allow for tuning adjustments to achieve precision in the output signal.
Incorporate the feedback network, which is critical for sustaining oscillations. A resistor-capacitor network is commonly used to control the phase shift and gain. Adjusting the feedback level is important, as it determines the stability and amplitude of the output waveform. It’s advisable to test with different resistor values to achieve the right balance of gain and stability, ensuring that the signal remains consistent without distortion.
Once the setup is complete, use an oscilloscope to monitor the output signal. Observe the waveform for any instability or irregularities, and make small adjustments to the component values if necessary. Fine-tuning ensures that the frequency remains stable and the amplitude stays within desired limits. If the signal is not as expected, review the component values and connections to correct any issues, such as a faulty connection or incorrect component specifications.
Components and Construction of a Clapp Oscillator
Start with selecting the right active component, typically a transistor or an op-amp, as the core element in generating the oscillating signal. The transistor will amplify the input signal and allow the feedback loop to sustain the oscillations. The choice of transistor is crucial, as it needs to operate within its linear region to avoid distortion in the waveform. A general-purpose NPN transistor is often used for its stability and ease of use in low-frequency applications.
For the frequency-determining network, the combination of an inductor and a capacitor forms the tank circuit. The inductor is responsible for storing magnetic energy, while the capacitor stores electric energy. These two components work together to establish the resonant frequency of the system. Use an inductor with a value that allows the circuit to operate within your desired frequency range, and pair it with a variable capacitor to provide tuning flexibility.
Next, you need a feedback network to maintain the oscillations. This is usually achieved through a resistor and capacitor combination. The feedback network must provide the proper phase shift (usually 180 degrees) to ensure that the signal is in-phase with the input and can drive the system into sustained oscillation. A typical configuration uses a capacitor and resistor between the collector and base of the transistor, controlling the gain and phase shift.
Ensure the correct placement of the bypass capacitor, which is essential for stabilizing the voltage at the transistor’s emitter. This component filters out any unwanted high-frequency noise, ensuring that the transistor operates with a steady voltage. Choosing a capacitor with the right value can prevent distortion and help maintain the purity of the signal.
Once the active component and feedback network are configured, you need to set up the power supply. A stable and regulated DC source is required to ensure the system operates at the correct voltage. Typically, a 9V or 12V battery is used for simplicity, but the supply voltage will depend on the specific components chosen. Make sure to select a power source that matches the specifications of the transistor and other components.
After assembling the circuit on a breadboard or PCB, test the setup to verify proper function. Use an oscilloscope to observe the waveform generated by the circuit. If the signal is not clean, check the connections and ensure the transistor is biased correctly. Adjust the values of the feedback components to fine-tune the amplitude and frequency stability.
Once the circuit is tested and stable, consider enclosing the setup in a case to protect it from external interference and physical damage. A metal enclosure can shield the circuit from electromagnetic interference (EMI), which can degrade the quality of the oscillations. Finally, make sure to regularly check the components for signs of wear, especially the capacitor and inductor, which may degrade over time due to heat or usage.
