Connect the motor leads directly to the main control terminals and ensure the power supply matches the unit specifications, typically 120V AC for residential models. Verify tight connections to prevent voltage drops and overheating.
Install wall switch modules following polarity indicators. Confirm the switch wires reach the control board without crossing other power lines to avoid accidental shorts.
Pair remote transmitters using the learn button on the control unit. Hold the button until the LED indicator flashes, then activate the remote to register it. Test each remote before closing the cover.
Check safety sensors at door edges and near the floor. Align infrared beams so that the red indicator remains solid when the path is clear and blinks if obstructed.
Use labeled connectors for all auxiliary devices such as keypads or battery backups. Maintaining proper identification prevents misconnection during maintenance or upgrades.
Garage Door Opener Connection Guide
Connect motor leads directly to the main control terminals and confirm the voltage matches the unit specifications, typically 120V AC. Secure connections to avoid overheating and intermittent operation.

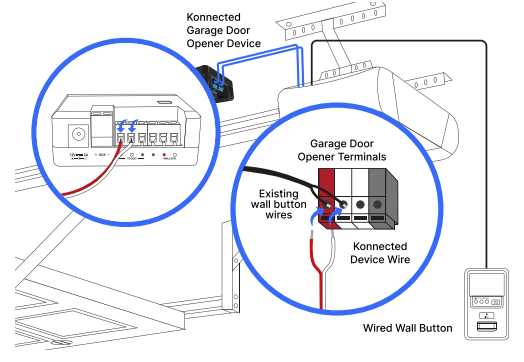

Attach wall control modules carefully observing polarity markings. Run the wires without crossing high-power lines to prevent interference or accidental shorts.
Pair remotes with the control unit by pressing the learn button until the LED flashes, then activate each remote. Test each unit individually to ensure proper registration.
Align safety sensors at the floor level and door edges. Red indicators should remain solid when the path is clear and blink when obstructed, confirming proper beam alignment.
Label all auxiliary connections including keypads, battery backups, and lighting modules. Clear identification simplifies future troubleshooting or upgrades.
Verify all circuits with a multimeter before powering the system. Measure continuity and voltage at each terminal to detect misconnections or potential faults that could damage components.
Connecting Motor and Power Supply Terminals Safely
Attach the motor leads to the control unit terminals and confirm the input voltage matches the rated specification, usually 120V AC for residential models. Tighten screws or clamps firmly to prevent loose connections that could cause arcing or overheating.
Use insulated connectors and keep power lines separated from signal or sensor cables. This prevents accidental shorts and reduces electromagnetic interference that could disrupt the opener’s operation.
Before applying power, verify continuity and proper polarity with a multimeter. Check that the motor draws current within specified limits under no-load conditions to ensure the installation is safe and reliable.
