Start by identifying each conductor and confirming its role with a voltage tester. Label live, neutral, and ground lines to prevent errors during assembly and maintain safety.
Use proper connectors and terminal blocks to secure each lead. Loose or exposed wires can cause short circuits or intermittent operation.
Separate control and power lines to reduce interference when using multiple speed settings or remote modules. Twist or shield signal leads if the run exceeds several meters.
Before energizing the system, check continuity and verify that each terminal is correctly matched. Double-check orientation for any reversible components to ensure proper operation and avoid damage.

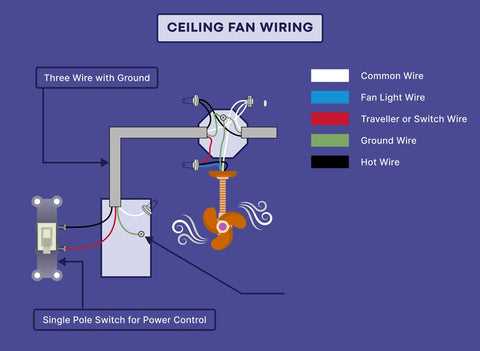

Overhead Rotating Unit Electrical Setup
Start by identifying each conductor with a voltage tester to determine live, neutral, and ground lines. Label every lead to avoid cross connections and ensure safe installation.
Use screw terminals or insulated connectors to secure each wire firmly. Loose contacts can cause intermittent operation or short circuits, creating fire hazards.
For models with multiple speed settings, separate control lines from power lines. Twist or shield signal leads when extending more than 2–3 meters to maintain accurate operation.
Confirm that all screws and clamps are tightened to recommended torque levels. Over-tightening can damage insulation, while under-tightening reduces contact reliability.
Typical conductor colors include:
- Black or red for live input
- White for neutral return
- Green or bare for grounding
- Blue or yellow for control functions
Before applying power, test each pathway with a multimeter for continuity and insulation resistance. Check orientation for reversible modules to prevent reverse operation.
Ensure the mounting bracket is securely attached to the ceiling box and can support the weight and rotation. Vibration or imbalance can loosen electrical contacts over time.
After energizing the system, operate all speeds and controls to confirm proper functionality. Monitor for unusual noises or flickering that may indicate poor electrical contact or misalignment.

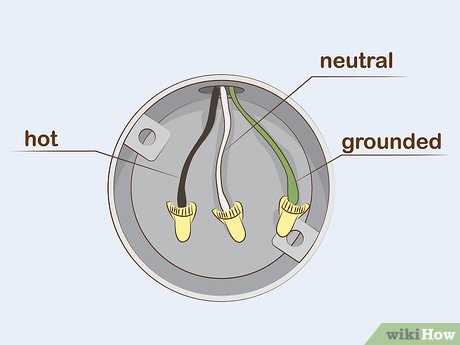

Identifying Each Wire and Its Function
Begin by testing each conductor with a voltage meter to determine live, neutral, and ground lines. Label every lead clearly before making any attachments to avoid misrouting during assembly.
Black or red wires typically carry the main supply, while white wires serve as the return path. Confirm each color assignment using a tester before linking to switches or control modules.
Green or bare copper wires are for grounding, providing safety against electrical faults. Ensure continuity from ground points to the metal mounting structure for proper protection.
Additional blue or yellow conductors handle control signals for variable speeds or remote modules. Check each control line individually to verify correct operation and prevent reverse triggering of functions.
