Before you begin, ensure you have the right tools: wire cutters, crimping tool, and a multimeter for testing. Identify the components of the electrical system you need to connect. This guide assumes you’re working with a 5-terminal connector, which typically includes connections for power, accessory, starting, and ground functions.
Start by inspecting the connectors and marking each terminal according to its function. For most systems, you’ll find a dedicated terminal for the battery, a terminal for the accessory circuit, and one for starting. Properly labeling each terminal will prevent confusion during the setup and ensure the system operates as intended.
Once the terminals are labeled, proceed with connecting the corresponding wires to the appropriate pins. It is critical to connect the battery lead to the power terminal first to avoid short circuits. Double-check the integrity of each connection and ensure that there are no loose wires that could lead to malfunction.
After completing the physical setup, use a multimeter to verify the voltage at each terminal. Ensure that the battery is supplying the correct voltage, and check the other terminals to confirm the functionality of the accessory and starting circuits. If any terminal does not show the expected voltage, trace the connections to identify any issues.

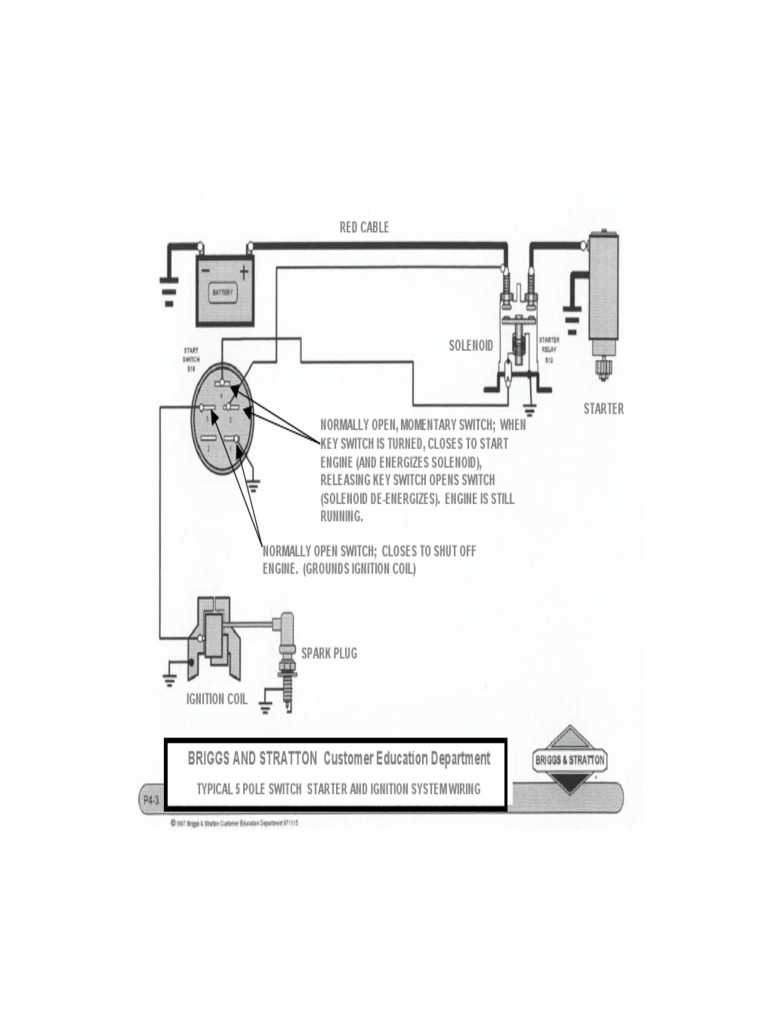

5 Pin Ignition Switch Wiring Guide
Start by identifying the correct connections for your electrical system. Typically, you’ll find terminals for power, ground, and accessory circuits. Each terminal should be clearly labeled to avoid mistakes. Using a multimeter, double-check that the battery is supplying the right voltage to the power terminal before proceeding with other connections.
Once the terminals are labeled, begin connecting the wires one by one. The power lead should be the first one connected to the appropriate terminal, followed by the ground connection. Ensure that all wires are securely fastened and that no terminals are left exposed, which could lead to short circuits.
For the accessory circuit, ensure you connect the wire to the terminal designated for accessories. This is crucial for powering on secondary systems, such as lights or radio, when the key is turned to the accessory position. After making all the connections, verify each with the multimeter to ensure proper voltage is flowing through the system.
If you encounter any issues during testing, retrace your connections to check for any loose or damaged wires. Sometimes, faulty connections or worn-out terminals can cause electrical issues that prevent the system from functioning correctly. Make sure the ground connection is solid, as this is a common area for connection failure.

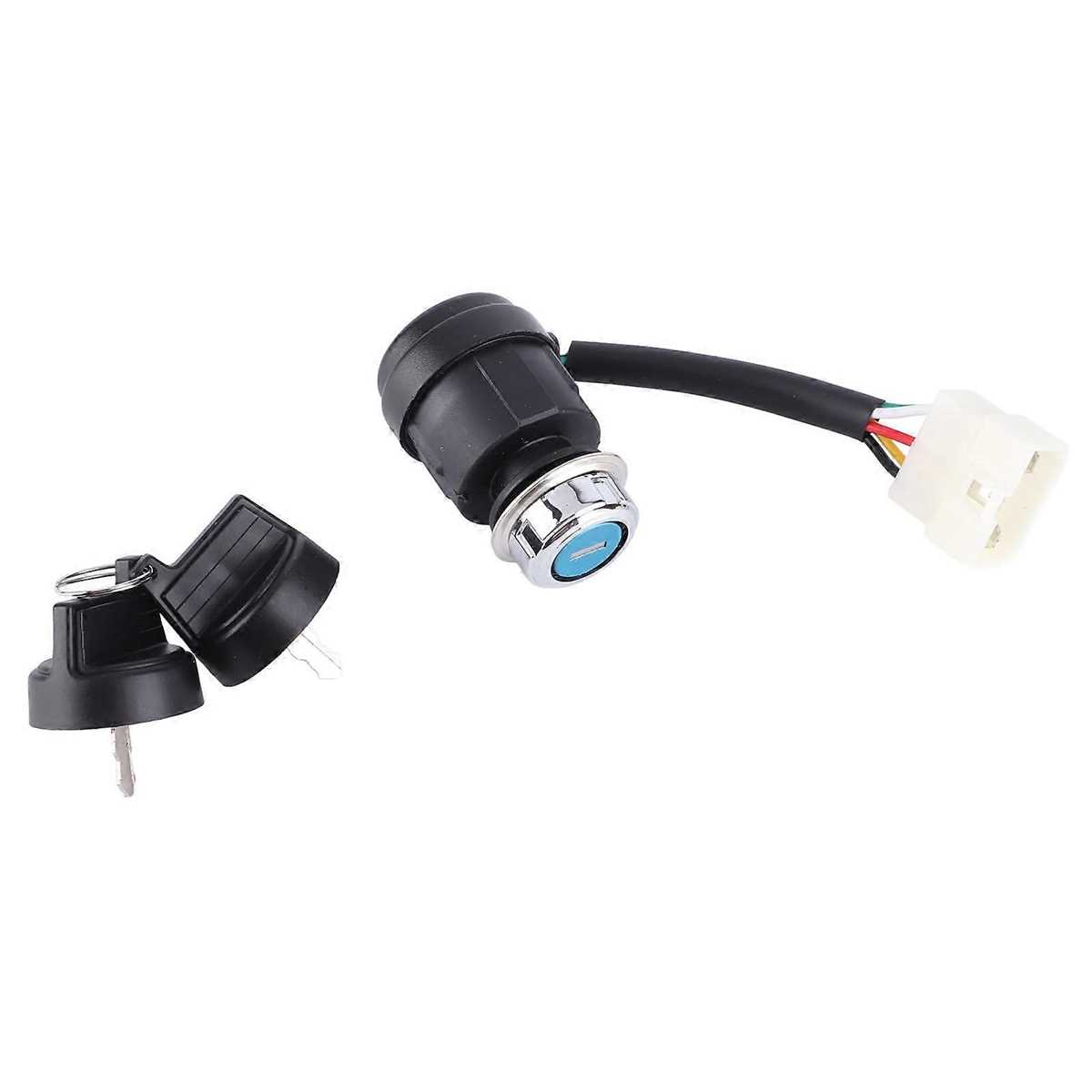

How to Identify and Label the Pins on a 5 Pin Ignition Switch
Begin by inspecting the switch for any visible labels or markings next to each terminal. Manufacturers often include indicators to help identify the connections, such as numbers or letters. If labels are present, match them with the corresponding wires according to your vehicle’s wiring guide or the manufacturer’s instructions.
If no labels are visible, use a multimeter to test each terminal. Start by checking for continuity between the terminals and the power source. This will help identify which terminal is for the power input. The terminal with constant power is typically the main input, while others will be connected to secondary circuits, such as accessories or lights.
Next, test the terminals for ground connection. The terminal that shows continuity to the vehicle chassis is the ground terminal. This is often critical for ensuring a stable electrical circuit. It’s essential to properly identify this terminal to prevent issues with electrical grounding later.
Once the power and ground terminals are identified, check for the remaining terminals. Usually, these are used for additional functions like accessory circuits or a start circuit. Use the multimeter to check which terminals become live or active when the switch is turned to specific positions (such as “on” or “start”).
After testing and confirming the function of each terminal, label them accordingly with permanent markers or labels. This will help avoid confusion during installation or future repairs. Ensure the labels are clear, such as “Power”, “Ground”, “Start”, and “Accessory”, to accurately reflect each terminal’s function.
Double-check your work by testing the completed connections before finalizing the setup. Use the multimeter once more to ensure that each circuit is operating correctly according to its intended function. Proper labeling and testing will reduce the risk of electrical malfunctions and provide clear guidance for troubleshooting in the future.
