Match each conductor to its corresponding terminal according to the T568A or T568B standard. Use consistent color coding to prevent cross-connections that can cause network errors or signal loss.
Strip insulation carefully to expose 10–12 millimeters of copper without nicking the strands. Twist each pair tightly to maintain proper pairing and reduce crosstalk between data lines.
Insert each conductor fully into the modular plug until it reaches the end of the channel. Ensure that the order matches the chosen standard before crimping to maintain reliable data transmission.
Use a crimping tool designed for RJ45 plugs to secure conductors. Apply firm, even pressure to avoid loose contacts that can result in intermittent connections and packet loss.
Test each terminated assembly with a continuity tester or network tester. Verify that each pin is correctly connected and that there are no shorts or open lines between pairs to ensure stable network performance.
Maintain proper cable management by avoiding tight bends or kinks. This preserves the integrity of the twisted pairs and prevents attenuation or signal degradation over long runs.
Label both ends of the assembly to indicate the standard used and the destination device. Clear identification simplifies troubleshooting and ensures compatibility across multiple network segments.
RJ45 Pin Assignment and Connection Standards
Arrange conductors according to the T568A or T568B standard before insertion into the modular plug. Ensure each twisted pair maintains its sequence to prevent signal interference and crosstalk, which can degrade network performance over long runs.
Use a quality crimping tool to secure conductors into the plug terminals. After crimping, test each link with a continuity or network tester to verify proper pin-to-pin connections and confirm that no shorts or open lines exist, ensuring reliable data transmission.

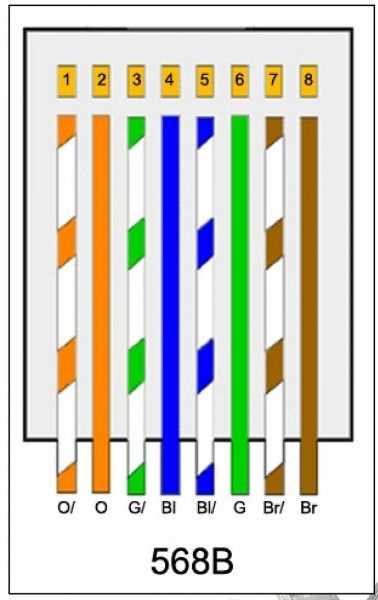

Identifying Pin Assignments and Color Codes
Follow the T568A or T568B standard when assigning conductors to each terminal. Use a consistent color scheme to distinguish pairs and maintain polarity, with specific colors designated for transmit and receive lines to prevent cross-talk and signal errors.
Check each pair by visually confirming that the twisted pairs match the standard sequence from pin 1 through pin 8. Misaligned pairs can cause data loss or intermittent connectivity, especially over long runs or high-speed transmissions.
Label both ends with the chosen standard and color sequence to simplify troubleshooting and future modifications. Proper identification ensures compatibility across multiple devices and reduces the chance of connection errors in complex network setups.
