How to Read and Create a Cat 3 Wiring Diagram for Network Setup

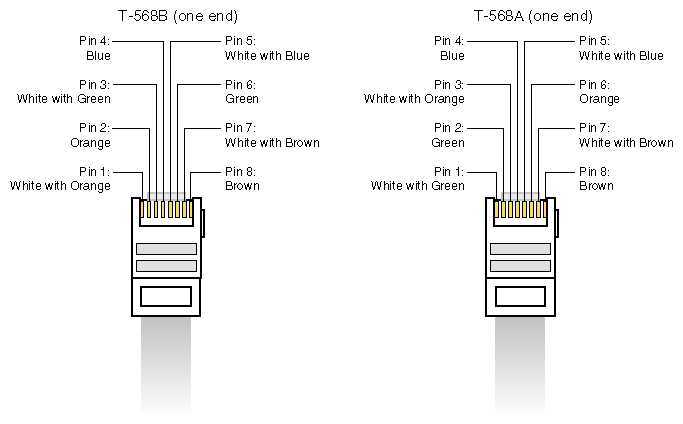

cat 3 wiring diagram

For reliable telephone and data connections, make sure to follow the correct color coding and pinouts. Start by identifying the appropriate wires for each pin to ensure optimal performance.

For T568A wiring: Place the green wire in the first slot, followed by the white/green wire, then the orange wire, and so on. This setup guarantees correct data transmission and reduces potential interference.

When creating the connection, ensure the cables are stripped to the correct length to avoid signal loss. Any extra exposed wire can lead to poor connectivity or connection failure.

Double-check the wiring order before finalizing the setup. It’s easy to mix up wires, and this simple mistake can cause connection issues that are difficult to troubleshoot.

Cat 3 Network Cable Configuration

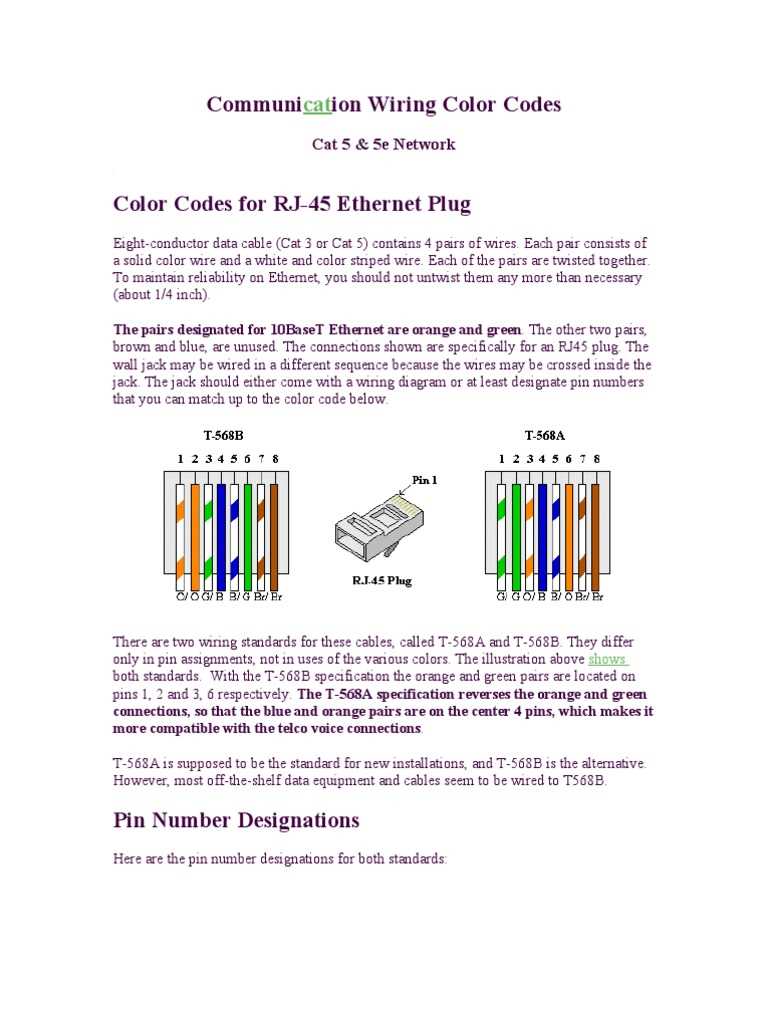

cat 3 wiring diagram

To set up a reliable connection with this type of cable, begin by making sure each wire is placed in the correct order. Proper wire management ensures signal integrity and prevents data loss.

The standard color code for wiring is as follows: Green with white stripes goes into the first slot, followed by solid green, then white with orange stripes, and finally solid orange. The last two slots should be filled with blue and white/blue wires, respectively. Ensure these are placed properly to avoid cross-talk or interference between wires.

Step-by-Step Connection Process

Strip the ends of the cables to expose enough wire, usually about 1.5 inches. Make sure not to strip too much, as this could lead to short circuits. Next, insert the wires into the connectors, keeping them in the correct order. Use a punch-down tool to secure the wires in place. Double-check that each wire is seated properly.

A quick visual check can help confirm the wiring order before crimping the connector. Misplacement can lead to unreliable performance or connectivity issues.

Why Wire Order Matters

cat 3 wiring diagram

The order of the wires determines the network speed and signal stability. Even minor mistakes in pinout sequences can disrupt data transfer. In networks relying on this setup, a faulty connection can lead to delays or a complete failure to establish a link.

It’s also important to verify that the connectors match the wiring standard you’re using. T568A and T568B are the two most common configurations. Both work, but they have different color schemes, so make sure to use the same standard on both ends of the cable.

Lastly, when connecting to a network device, make sure the cable is securely plugged in. Any loose connection can lead to intermittent issues, particularly when dealing with high-speed data transfers.

Understanding Pinouts and Wiring Colors for Network Cables

To ensure proper connectivity, start by identifying the correct pinout configuration. The most commonly used setup for this type of cable is the T568A or T568B standard. Both configurations have a unique order for the colored wires that must be followed carefully.

For the T568A pinout: The first wire should be white/green, followed by green, white/orange, blue, white/blue, orange, white/brown, and brown. For the T568B standard, switch the positions of the green and orange wires: white/orange, orange, white/green, blue, white/blue, green, white/brown, and brown.

Using the correct pinout will prevent data transmission errors. If the wires are not matched properly on both ends, the cable may not work at all or could provide inconsistent results, leading to connection drops or slow speeds.

Color coding plays a critical role in network installations. The colors help technicians quickly identify which wire should go to each pin. Always verify the wiring pattern with a reference diagram before finalizing the connection.

Additionally, check the cable’s length. Longer cables are more prone to signal loss, so ensure you don’t exceed the recommended length, typically 100 meters for standard installations.

After confirming the color coding and pinout, use a crimping tool to secure the connector onto the cable. Be sure that the tool presses the metal contacts firmly onto the wires. This prevents any loose connections that could disrupt network performance.
