Attach the output terminal directly to the battery positive post using a heavy-gauge wire to handle peak current. Ensure the connection is secure and free from corrosion to maintain stable voltage delivery.
Link the control input to the ignition switch or voltage regulator to allow proper excitation of the generator. Verify the wire is correctly routed and insulated to prevent shorts or signal loss.
Ground the housing firmly to the chassis using a clean, bare metal contact. A reliable earth ensures consistent performance and prevents flickering or erratic voltage readings under load.
Check all connections with a multimeter after installation. Measure voltage at the battery and across key terminals under different engine loads to confirm proper integration and detect any miswiring early.
Generator Connection Layout
Attach the main output terminal directly to the battery positive post using a thick, insulated conductor. Ensure the connection is tight and corrosion-free to support peak charging currents and stable voltage delivery.
Connect the excitation lead to the ignition-controlled input or voltage regulator. Verify insulation integrity and avoid routing near high-heat components to prevent shorts or signal degradation.
Secure the housing ground to the chassis with a bare metal contact. Proper grounding prevents voltage fluctuations and ensures accurate performance under varying engine loads.
Testing and Troubleshooting
Check continuity and voltage across key terminals using a multimeter. Measure battery voltage at idle and under load to confirm correct integration, and inspect all connections for tightness and clean contacts to prevent faults.

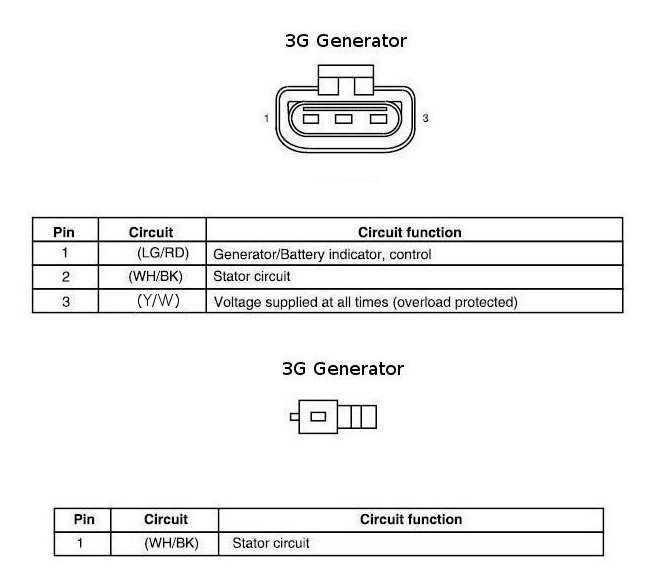

Identifying Alternator Terminals and Functions

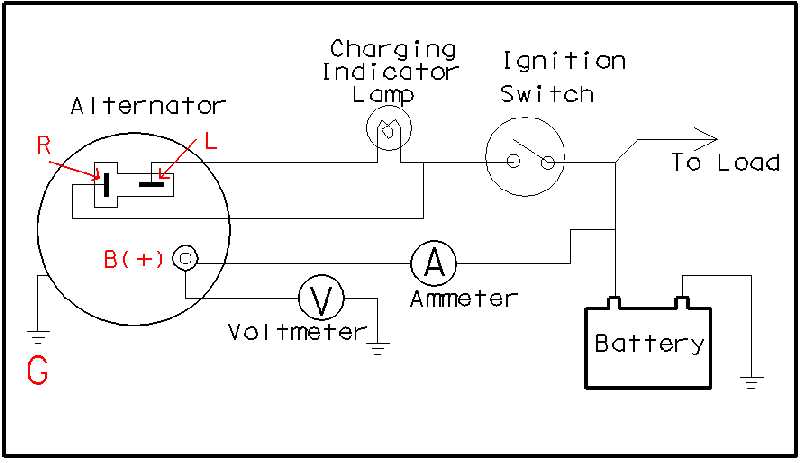

Locate the main output terminal and connect it directly to the battery positive post with a heavy-gauge conductor. This terminal carries the full charging current and must be secure and free of corrosion.
Identify the excitation input and link it to the ignition switch or voltage regulator. This connection provides the initial field current needed to start voltage generation when the engine runs.
Check the ground terminal on the housing and secure it to a clean metal surface on the chassis. Proper grounding stabilizes voltage and prevents flickering or erratic performance during operation.
Indicator and Auxiliary Connections
Locate the warning lamp terminal and connect it to the dashboard indicator. Ensure correct polarity to allow proper illumination when the generator is not producing voltage.
Assign terminals for additional functions such as voltage sensing or external load connections. Verify that each wire is rated for the expected current and insulated to prevent short circuits.
Test all terminals with a multimeter after installation. Confirm voltage readings at idle and under load, check continuity, and inspect for loose or oxidized contacts to maintain reliable performance.
