Connect the main power terminals first and verify the voltage matches the component rating. Use a properly rated fuse or breaker to protect the load during startup and operation.
Identify the gate and MT1/MT2 pins clearly before making any connections. Ensure the triggering device provides the correct current to reliably switch the load without overheating the component.
Run insulated leads from the load to the main terminals while maintaining separation from control lines. Tighten all screw terminals to prevent arcing and ensure stable operation.
Test the switching function at low voltage before applying full power. Observe that the load responds correctly to trigger signals and that there are no unexpected conduction paths or shorts.

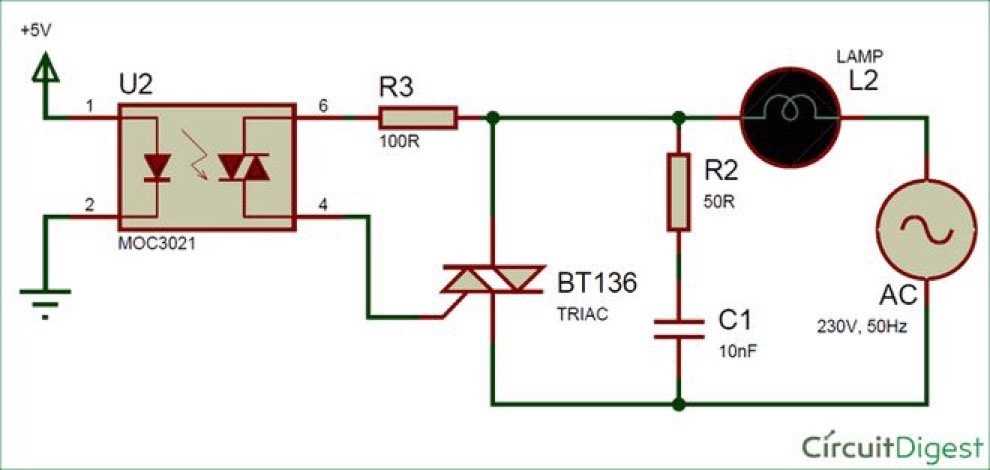

Triac Connections and Control
Connect the main load terminals to the AC supply ensuring the voltage and current ratings are within the component limits. Use insulated conductors and tighten all screws to prevent arcing and overheating during operation.
Attach the gate control line to a triggering device capable of supplying the required current. Verify that the control signal is synchronized with the AC waveform to ensure reliable switching and avoid false triggering or partial conduction.
Identifying Terminals and Pin Functions
Locate the main terminals labeled MT1 and MT2 and verify their connection points to the load. Ensure they can handle the maximum current rating of the component to prevent overheating.
Identify the gate pin which controls triggering. Use a multimeter to check continuity between the gate and main terminals before connecting to the control device to confirm proper functionality.
Mark each pin and terminal clearly for future reference.
- MT1 connects to one side of the AC load
- MT2 connects to the opposite side
- The gate pin links to the triggering source
Check for insulation and separation between pins to avoid short circuits.
- Inspect for visible damage or corrosion
- Ensure leads are properly stripped and secure
- Maintain consistent polarity when connecting to the control device
Document each connection and pin function in a reference sheet to simplify maintenance and troubleshooting. Include notes on voltage ratings, expected current, and safe operating limits to prevent misuse.
