To wire up a voltage reduction starter system for large motors, begin by ensuring that you understand the components involved. This setup is particularly useful for managing high starting currents, which can be damaging to electrical systems. By reducing the voltage applied to the motor during startup, the system minimizes wear and tear on both the motor and associated equipment.
Start by connecting the motor to a three-phase supply and incorporating a method for controlling the voltage applied during start-up. You will need a control panel, switches, and a set of relays to regulate the power levels. Also, verify that you have the appropriate protection devices, such as overload relays, to prevent short circuits or power surges from causing damage to the system.
Use step-down transformers to limit the initial voltage and ensure a smooth start for the motor. As the motor reaches its operating speed, the full voltage is gradually applied to bring it to the desired performance level. Make sure all connections are secure and comply with local electrical codes to ensure safe operation.
Lastly, test the system thoroughly before regular operation. A proper setup ensures a smooth transition from startup to full speed, reducing the mechanical stress and improving the motor’s longevity. Always consult the manufacturer’s guidelines for specific wiring recommendations to ensure proper integration with the motor system.
Auto Transformer Starter System Overview
The voltage reduction starter system is designed to reduce the high initial current drawn by motors during startup. By using a voltage-limiting mechanism, this system allows the motor to reach its operating speed without subjecting the electrical components to the stress associated with a full-voltage start. This setup is typically used for large motors in industrial and commercial settings.

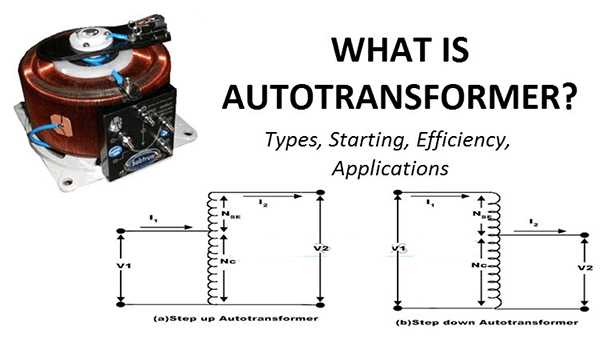

A key component of this system is the use of a step-down transformer to reduce the voltage at startup. Initially, the motor is supplied with a reduced voltage, typically about 50% to 70% of the rated voltage. Once the motor reaches a certain speed, the voltage is gradually increased to its full operational value, allowing the motor to run at its full capacity.
The starter incorporates control devices such as contactors and relays, which regulate the connection and disconnection of the motor from the reduced voltage. These relays also ensure that when the motor reaches full speed, it is safely switched to the full voltage supply. A time delay is built into the system to manage the transition between reduced and full voltage effectively.
Safety measures are an important aspect of this system. The inclusion of overload protection devices helps prevent damage to the motor in case of faults or abnormal conditions. The system should also be equipped with proper fuses and circuit breakers to safeguard against electrical overloads and short circuits.
Regular testing and maintenance of the system are critical for ensuring its reliable operation. Over time, components such as relays, contactors, and transformers may degrade or malfunction. Inspections should be conducted to verify that all components are functioning within specified parameters, and any signs of wear or damage should be addressed promptly.
While this setup is ideal for applications requiring heavy machinery to start smoothly, it is crucial to consult the motor and equipment manufacturers for specific wiring instructions. Proper integration with the motor’s characteristics ensures optimal performance and longevity of the system.
How to Wire an Auto Transformer for Motor Control
Start by connecting the primary terminals of the voltage-reducing device to the main power supply. Ensure that the connections are secure and meet the required voltage specifications for the motor in use. The secondary terminals should be linked to the motor’s input to deliver the reduced voltage during startup. Use appropriate gauge wiring based on the current rating of both the device and the motor.
Next, wire the control components such as relays and contactors to manage the transition from reduced voltage to full voltage. The relays should be wired in series with the motor’s connection to the reduced voltage supply, and they will be activated by the control system. A time-delay relay can be incorporated to automatically switch to full voltage once the motor reaches its operational speed.
Ensure that proper safety mechanisms, such as overload protection, are included in the system. Install fuses or circuit breakers on both the input and output sides of the motor to protect against electrical faults. Regularly check all wiring connections for wear, corrosion, or loose terminals, as these could lead to failure or inefficiency in motor operation.
