To properly install or troubleshoot the charging system, begin by identifying the primary connection points. These are typically the positive and negative terminals, as well as the voltage regulator connections. Each wire plays a specific role in maintaining power flow throughout the vehicle.
Before making any connections, double-check the color codes. In most systems, red wires indicate power input, while black wires are used for grounding. This ensures that the system remains safe and functional during installation or maintenance.
Pay close attention to the connections coming from the battery and regulator. These are responsible for maintaining the electrical balance between the engine’s power output and the vehicle’s electrical components. Incorrect wiring can result in an undercharging or overcharging scenario, which can damage both the battery and the vehicle’s electronics.
When troubleshooting, use a multimeter to test voltage at various connection points. If the system isn’t providing proper output, check for any loose connections or damaged cables that may be interrupting the electrical flow.
Once everything is connected and verified, ensure the system operates correctly by testing under different conditions, such as starting the engine or turning on accessories. This will confirm the reliability of the connections and the functionality of the system as a whole.
Understanding the Charging System Connection Map
Start by identifying the key components in the electrical network. The primary connections include the positive terminal from the battery, the voltage regulator, and the ground wire. Each of these parts ensures that the electrical flow is balanced, providing power to the vehicle’s systems and maintaining battery charge.
Checking the Color Coding for Proper Connections
Color coding is critical for accurate connections. Red typically represents the positive terminal, while black is used for ground. These markings allow for quick identification during installation. Make sure that each wire matches its corresponding terminal as shown on the system’s schematic.
Troubleshooting Incorrect Connections
If the system is not functioning correctly, the issue could be a loose connection, damaged wire, or incorrect component placement. Use a multimeter to measure the output voltage at key points. If the readings are inconsistent, check each wire for continuity and correct placement.

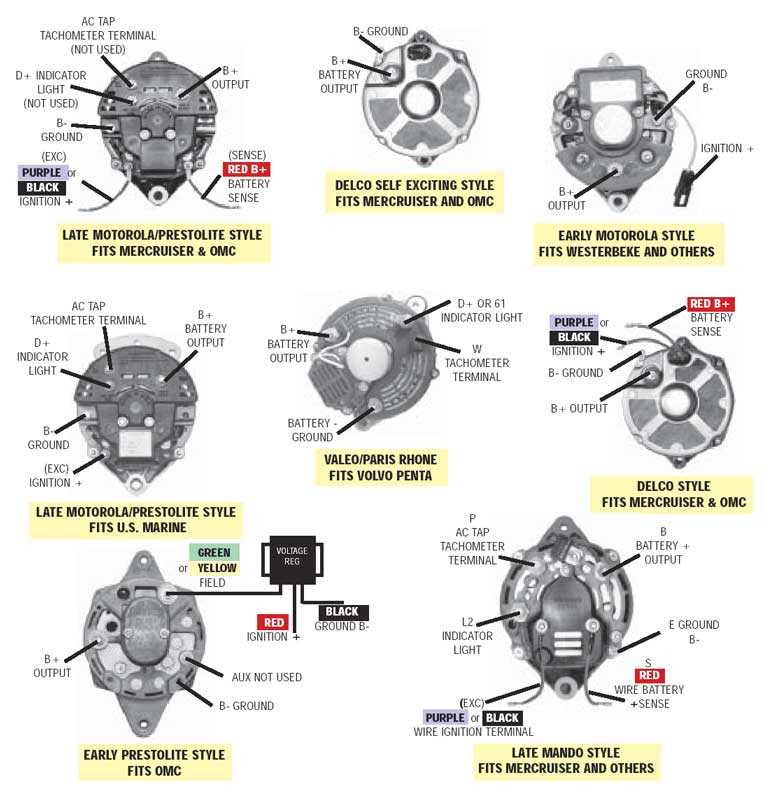

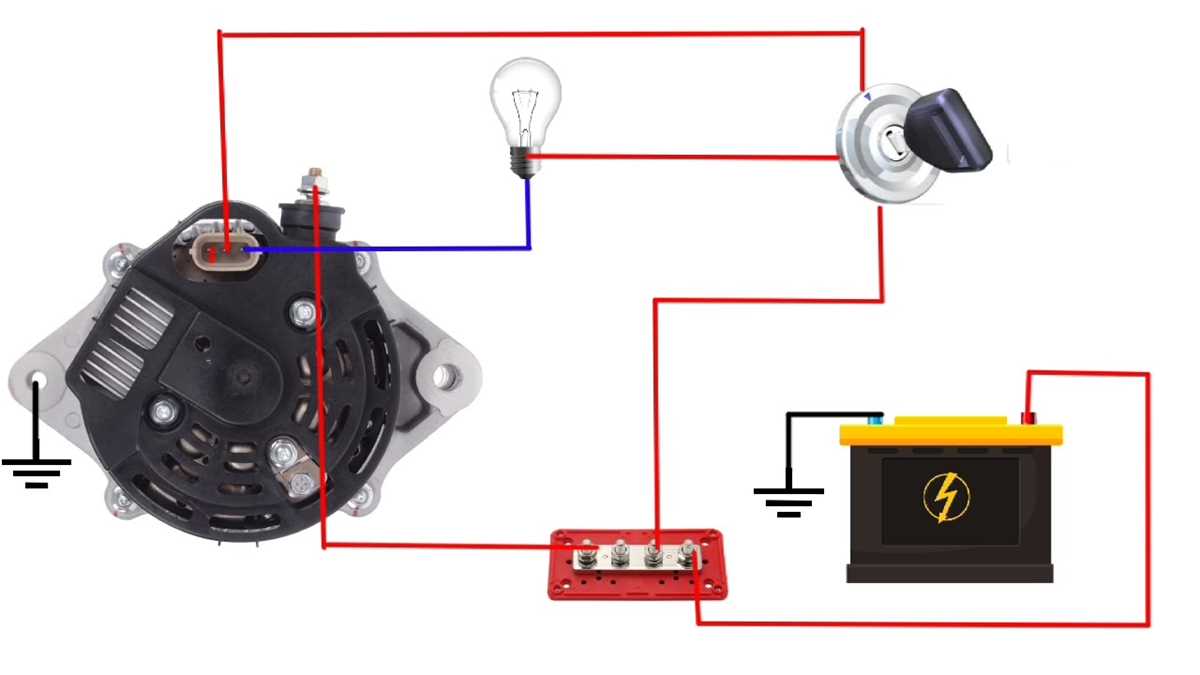

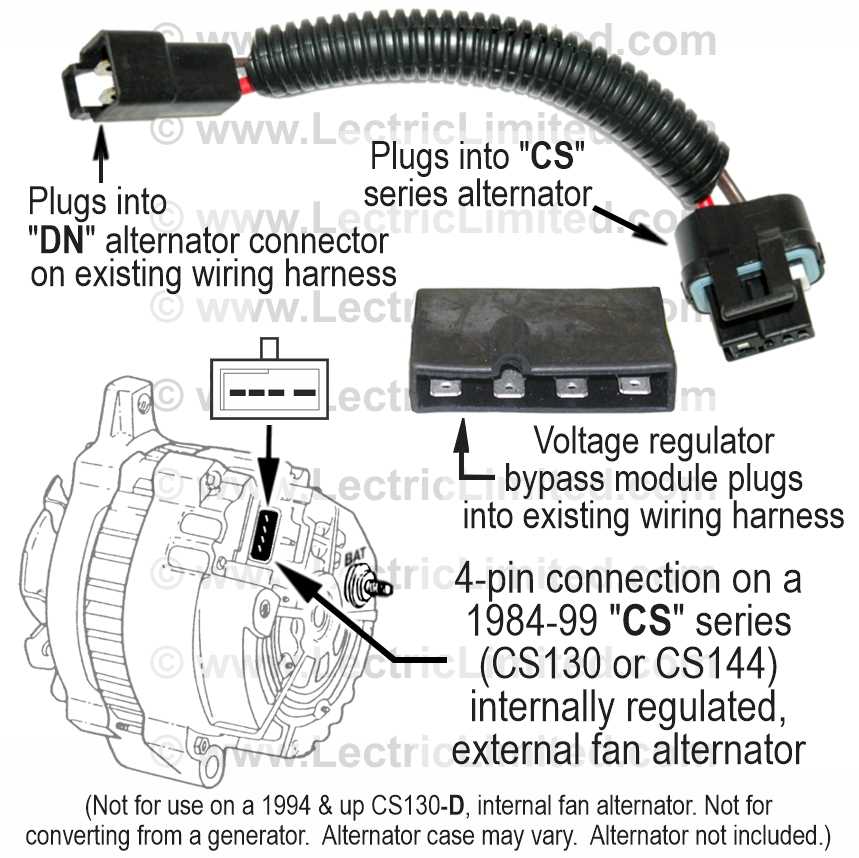

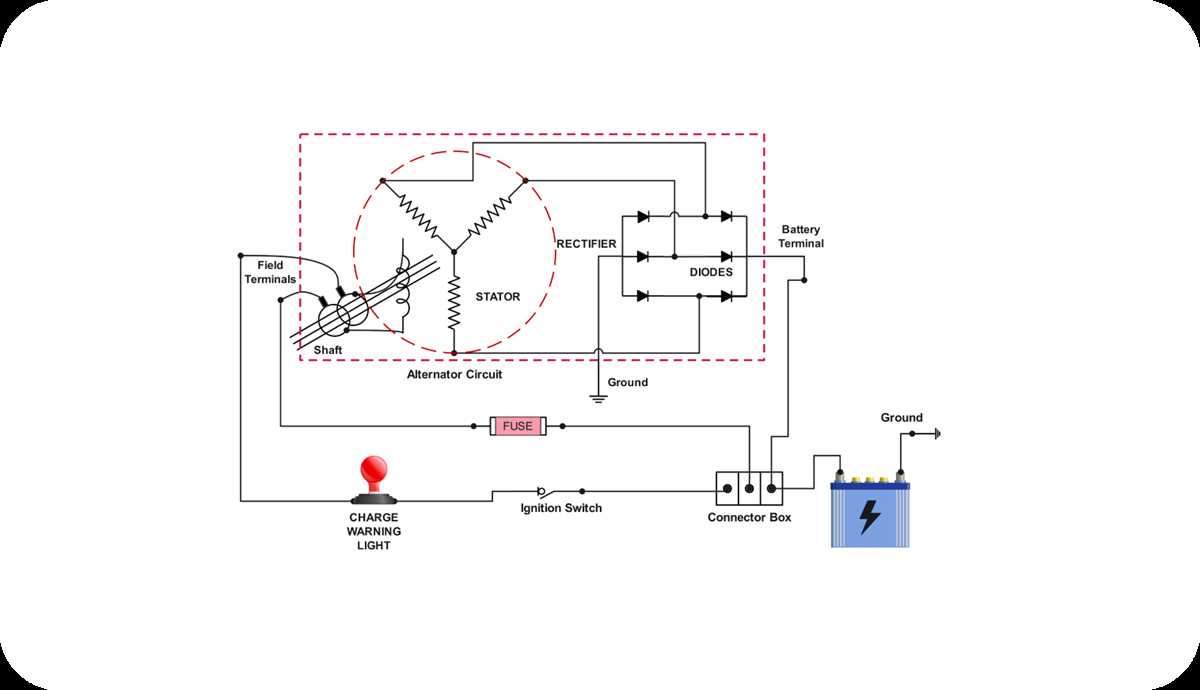

How to Identify Key Wires in an Alternator Wiring System
Start by locating the power input wire, which is typically the thickest wire in the setup. This wire connects directly to the battery and delivers electrical current to the system. It’s often red and should be connected to the positive terminal of the power source.
Recognizing the Ground Wire
The ground wire is crucial for completing the electrical circuit. Usually, it’s black and should be connected to a clean metal surface within the vehicle. If this wire is disconnected or improperly connected, it can cause the system to malfunction.
Identifying the Voltage Regulator Connections
The voltage regulator has a few specific wires that are vital for maintaining proper voltage levels. These wires are often smaller in gauge and are typically marked clearly. The main wire from the regulator will usually be blue or white and connects to the system’s voltage sensing wire.
Check for any additional wires that may be labeled with abbreviations like “S” or “L.” These correspond to the sensing and lamp connections. The sensing wire monitors the voltage levels, while the lamp wire connects to the indicator light on the dashboard.
Ensure that all wires connected to the voltage regulator are intact and free of corrosion. If any connections appear loose or damaged, it could cause improper voltage regulation, leading to overcharging or undercharging.
If you are dealing with a multi-wire setup, use a multimeter to check the output voltage at each key point. A properly functioning system will provide consistent voltage readings, usually in the range of 13.5 to 14.5 volts when the engine is running.
Finally, cross-reference the wire colors with the vehicle’s manual or the system’s schematic to verify that each wire is connected in the correct position. This will prevent miswiring and ensure optimal performance of the charging system.
