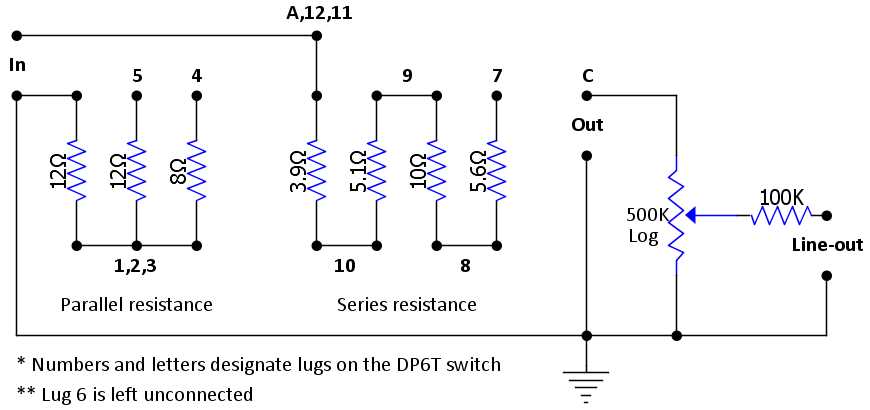

Attenuator Circuit Diagram Guide
To create an efficient signal reduction network, start by choosing the correct resistor values. These values should align with both the input and output impedance of the system you’re working with. Using mismatched resistances will result in poor performance, and the desired attenuation may not be achieved.
The most common configuration for these systems involves a voltage divider network. This setup is simple to design and allows for easy adjustment of signal strength. The resistors in the divider determine how much of the input signal is allowed to pass through, while the rest is dissipated as heat.
For practical applications, ensure that the resistors are rated for the expected power levels. Underrated resistors will overheat and could cause system failure. Check the power ratings of each component and select a resistor that can handle the power without exceeding its limits.
Building the Network
When building the network, first connect the resistors in series or parallel as required by your design. For a series network, connect the resistors end to end, with the input signal entering the first resistor and the output signal taken from the second. In a parallel network, the resistors are placed side by side, with the signal split across both paths.
It is important to place the components in the correct order. Typically, the higher value resistor is placed in series with the input, while the lower value resistor is connected in parallel with the output. This ensures that the majority of the signal is attenuated, but not entirely blocked.
Another key aspect is the placement of the ground reference. In many cases, grounding one side of the resistor network is necessary to complete the signal flow. Make sure that the ground is correctly connected to avoid any issues with signal quality or performance.
Testing and Calibration
Once the network is built, test the performance using an oscilloscope. Measure the amplitude of the output signal and compare it to the input. You can adjust the resistor values to fine-tune the attenuation level. If the signal is still too strong or too weak, consider recalculating the resistor values or changing the resistor configuration.
Lastly, check for any unwanted distortion or noise introduced by the network. Even small errors in resistor placement or values can lead to noticeable changes in signal clarity. If any issues are detected, troubleshoot the network and adjust the components until the desired signal quality is achieved.
How to Build a Simple Signal Reduction Network for Audio Signals
Start by selecting two resistors that will be used to decrease the volume of your audio signal. Choose values based on the desired level of reduction. A typical setup might involve a 10kΩ resistor in series with a 10kΩ resistor placed parallel to the output. This will create a basic voltage divider.
For the input, connect one end of the first resistor to the source of the audio signal, such as a guitar or audio output device. The other end should connect to the first terminal of your output device, such as an amplifier or speaker system. This creates the primary signal path that will be reduced.
The second resistor will be placed in parallel with the output. Connect one side to the signal path after the first resistor and the other side to ground. This helps dissipate some of the signal power, resulting in the desired attenuation level.
Choosing Resistor Values
Resistor values are important in determining how much of the signal is passed through and how much is reduced. For example, if you want a mild reduction in volume, use resistors with values that are close in range, such as two 10kΩ resistors. For a more significant reduction, you may want to increase the resistance, such as using a 100kΩ resistor in series with a 10kΩ resistor.
Experiment with different values to achieve the specific level of attenuation you need. A lower resistance in parallel will pass more signal, while a higher resistance will reduce the strength of the output signal more effectively.
Testing the Setup
After building the network, test it by feeding an audio signal into the system and measuring the output with a multimeter or oscilloscope. Check that the signal strength is reduced as expected without distorting the audio. If the reduction is too harsh, consider adjusting the resistor values or switching to different resistance combinations.
Ensure that the connection is stable and that there are no loose wires or poor contact points. A weak connection can lead to inconsistent attenuation or signal loss, which may affect the audio quality. Always double-check each connection before testing the network in a real-world scenario.
