Use a stable power source with proper voltage and current rating for the module. A rechargeable battery or low-voltage DC adapter rated between 3 and 5 volts is ideal for safe operation.
Identify all electronic components including the transformer, transistor, resistors, and switch. Verify polarity for each part to prevent damage during assembly.
Secure connections on a small breadboard or solder components to a perfboard. Keep leads short to reduce resistance and avoid unintended arcing between terminals.
Include a control switch to regulate the high-voltage output. This allows testing without continuous exposure to sparks and prevents accidental discharge during handling.
Test the module carefully by briefly activating the switch while keeping fingers and conductive objects away from the terminals. Observe the spark intensity and adjust connections if needed.
Electrical Assembly Guide for High Voltage Ignition Module
Begin by selecting a stable low-voltage power source rated between 3 and 5 volts. Rechargeable batteries or regulated DC adapters are recommended to prevent voltage spikes that can damage components.
Sort all components including the small transformer, transistor, resistors, capacitors, and the control switch. Verify orientation and ratings before installation to avoid overheating or short circuits.

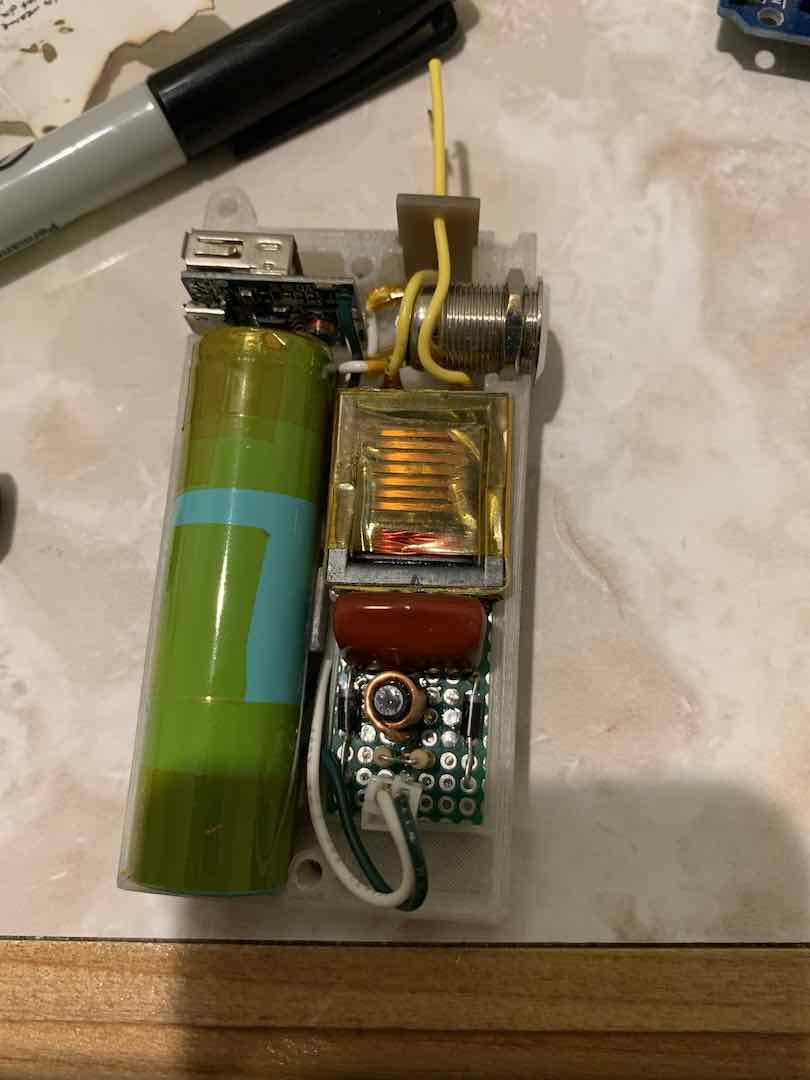

Mount components securely on a compact breadboard or solder them to a perfboard. Keep connections short and direct to reduce resistance and minimize unintended sparks.
Connect the transformer to the transistor following the polarity markings. Ensure that the primary coil connects to the control switch and power source, and the secondary coil leads are isolated to prevent accidental discharge.
Install a control switch to regulate high-voltage output. Use a momentary push button to test sparks safely and prevent continuous operation, which can overheat the module.

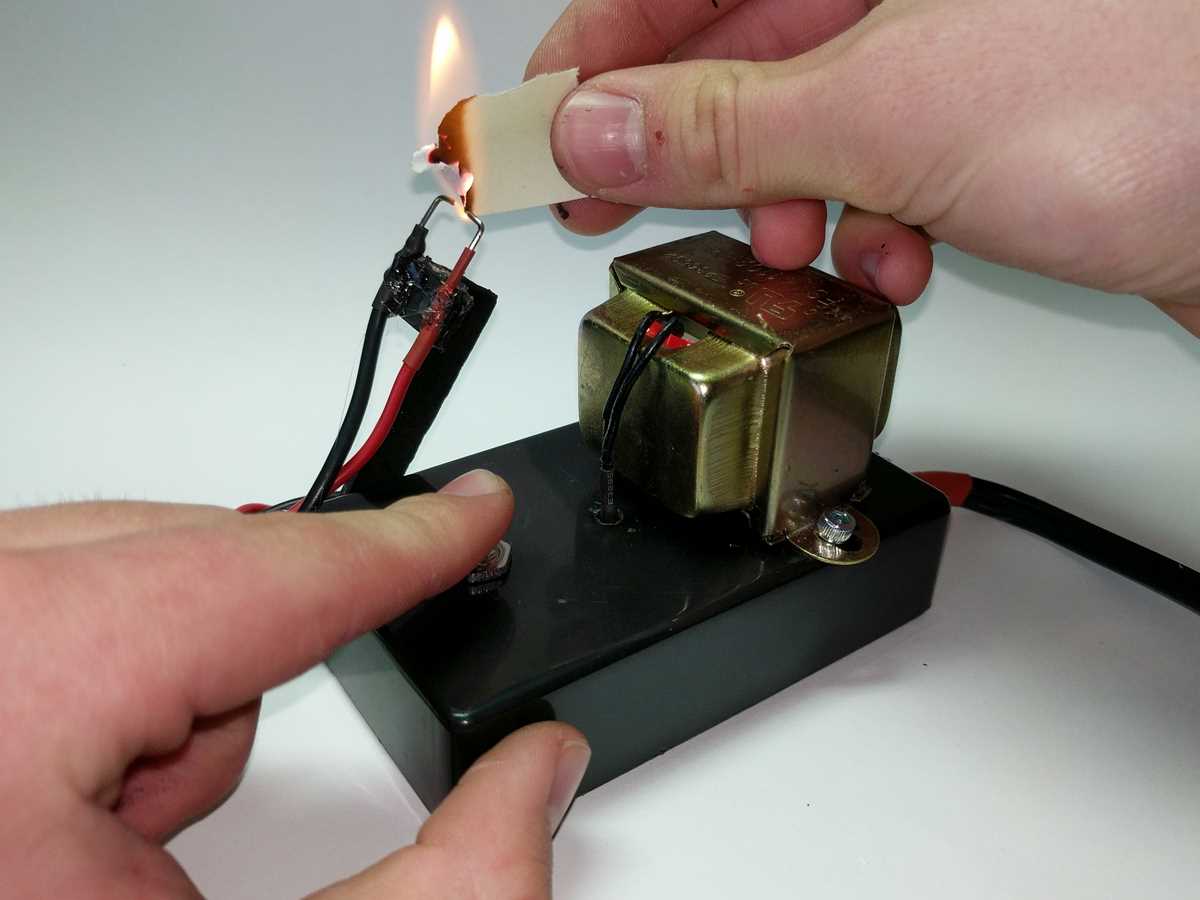

Test the assembled module carefully by activating the switch briefly while keeping all conductive objects at a safe distance. Observe spark formation and ensure consistent intensity before finalizing the assembly.
Inspect all connections for stability and insulation. Use heat shrink tubing or electrical tape on exposed leads, and verify that grounding paths are secure to prevent shock hazards during use.
Identifying Components and Their Functions for High Voltage Ignition Module
Start by locating the small transformer that steps up low voltage to high voltage. Its primary coil connects to the power source, while the secondary coil generates sparks when activated.
Examine the transistor, which acts as a switch and amplifier for current. Ensure it matches the voltage rating of the power source and is oriented correctly to handle the transformer load.
Check all resistors for their color-coded values. These limit current through the transistor and stabilize voltage across the module. Incorrect resistance can cause overheating or weak spark generation.
Identify the capacitor used for pulse shaping. Connect it in parallel with the transistor and transformer to smooth high-frequency spikes and increase spark intensity.
Inspect the control switch that regulates activation. A momentary push button is preferred for testing sparks safely and preventing continuous discharge, which can damage components.
Observe the leads and terminals for proper insulation and labeling. Keep positive and negative paths clear, and ensure high-voltage points are isolated to avoid accidental shocks.
Label each component on the assembly board for easy troubleshooting. Mark the transformer coils, transistor pins, and capacitor orientation, and confirm that all connections correspond to functional requirements before testing.
