Use appropriately rated conductors to prevent overheating and voltage drops in single-phase and three-phase setups. For 220V systems, select copper lines with a minimum of 14 AWG cross-section and verify insulation against heat and moisture exposure.
Label each terminal clearly to maintain consistency during installation and future troubleshooting. Assign standardized color codes for live, neutral, and ground paths to avoid accidental shorts and simplify maintenance procedures.
Include protective components such as fuses or circuit breakers sized to the operational current. For a 5A load, a 6A slow-blow fuse ensures safety without nuisance trips. Confirm the thermal rating of each device matches the maximum expected load.
Maintain proper spacing and secure fastening of all connections to reduce vibration-related loosening. Use insulated clamps and terminal blocks rated for the applied voltage to enhance system reliability and extend operational life.

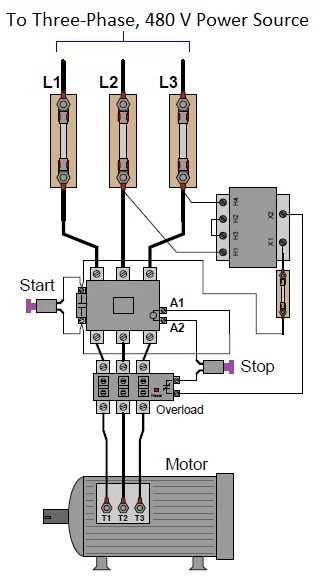

Consider control elements like relays or contactors to manage startup currents. For inductive loads, choose components with at least 1.5 times the nominal operating current to prevent premature wear and arcing.
Verify continuity and insulation resistance before energizing the assembly. Use a multimeter to check that no paths are shorted and confirm the insulation resistance is above 1 MΩ for circuits operating at 220V or higher.
AC Motor Electrical Layouts and Connection Guide
Use conductors rated for the operational voltage to prevent overheating and maintain stable performance. For single-phase systems operating at 220V, copper lines with a minimum 14 AWG cross-section provide reliable current flow. Ensure insulation is suitable for ambient temperature and humidity.
Identify each terminal clearly using standardized color codes for live, neutral, and protective paths. This labeling minimizes errors during installation and simplifies future troubleshooting, especially when multiple units share a control panel.
Include protective components such as fuses or miniature breakers sized slightly above the nominal load. For a device drawing 7A, a 10A slow-blow fuse accommodates startup surges while preventing excessive current from damaging the system.
Proper Connection Techniques
Secure all fasteners and maintain adequate spacing between terminals to reduce the risk of shorting and vibration-induced loosening. Use insulated clamps or terminal blocks rated for the applied voltage and mechanical strain to enhance reliability.
Testing and Verification
Check continuity and insulation resistance before energizing the assembly. Use a multimeter to confirm no unintended paths exist and that insulation resistance exceeds 1 MΩ for circuits at 220V or higher. Verify that control elements like relays or contactors are correctly rated for the expected load and switching frequency.
Identifying Terminals and Color Codes for AC Motors
Label each connection point before installation using durable markers or heat-shrink labels. Proper identification prevents misconnection and simplifies maintenance for both single-phase and three-phase assemblies.
Follow standard color conventions for conductors to ensure consistency across different setups. For example, in single-phase 220V systems, black or brown is typically used for live, blue for neutral, and green-yellow for protective paths.
For three-phase units, maintain phase order using colors like red, yellow, and blue. Consistent phase labeling avoids phase reversal, which can cause abnormal rotation and mechanical stress on the system.
Terminal Types and Configuration
Common connection points include line terminals, neutral points, and grounding lugs. Use insulated screw terminals or spring-loaded connectors rated for the maximum applied voltage. Ensure spacing between terminals accommodates thermal expansion and reduces the risk of accidental shorts.

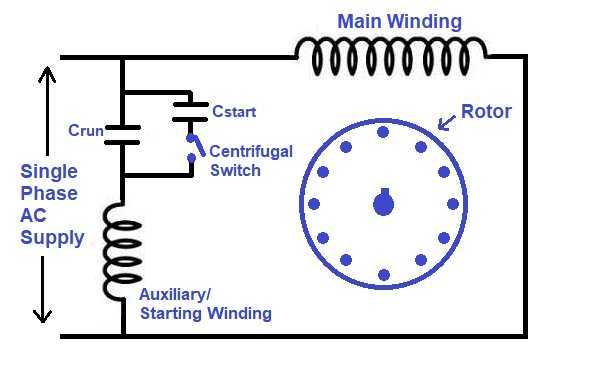

Some assemblies include auxiliary contacts for overload relays or capacitors. Mark these separately using distinct colors or symbols to prevent confusion during testing or replacement.
Inspection and Verification
Measure continuity and voltage presence before energizing the setup. Confirm that each color-coded conductor leads to the intended terminal, and verify that protective paths are uninterrupted to ensure safe operation.
Document the terminal assignments in a reference sheet attached near the control panel. Include details such as color codes, function, and recommended torque values for secure fastening.
Regular inspection of labels, color codes, and terminal integrity is recommended after six to twelve months of operation to maintain operational safety and reduce downtime caused by misidentification.
