When setting up a cooling system, focus on understanding the placement of key components, their connections, and the flow of electricity. Accurate connections are paramount to ensure functionality and prevent damage to any unit or its electrical circuits. Identifying the correct terminals for power input, ground, and control lines is the first step towards a reliable setup.
Ensure that the power supply and control systems are connected in accordance with the specifications outlined in the system’s manual. Most systems require a dedicated power line to avoid overloading. The connection for remote controls or thermostats should also be routed separately to allow for seamless communication and operation, ensuring the optimal performance of all components.
Proper grounding is another critical consideration to avoid electrical shorts or hazards. Use heavy-duty wires for high voltage areas and follow the manufacturer’s instructions for all wiring types. Double-check the fuse and breaker settings to ensure that the system can handle fluctuations without risk of short-circuiting or overheating.
Wiring Setup Guide for Cooling Systems
Start by connecting the power supply to the designated input terminal on the system. Ensure that you use the correct gauge of wire to handle the voltage, typically 220V or 110V depending on your region. The live and neutral wires should be clearly identified to avoid any confusion. Always connect the ground wire securely to prevent electrical hazards.
After securing the power lines, move on to the connections for control and communication signals. These typically include connections for thermostats, remote controls, or any other devices used for regulating temperature. Make sure to verify all connections against the manufacturer’s wiring guide and check the fuse or circuit breaker ratings to ensure the system operates safely without overloading the circuit.
How to Identify Key Components in the Cooling System
First, locate the power supply unit, which is typically connected to the main electrical panel. This is the primary source of electricity that powers the entire unit. It is essential to check the input voltage and ensure proper grounding to avoid electrical shocks. Verify the voltage rating of the system to confirm it matches the power supply output.
Next, identify the compressor, which is the heart of the system. This component compresses refrigerant gas and helps circulate it through the system. The compressor is typically located at the base or rear of the appliance and should be checked for any visible wear or damage. A malfunctioning compressor may result in improper cooling or complete system failure.
The condenser is another key component, usually found near the compressor. It is responsible for releasing heat from the refrigerant gas, allowing it to cool down and transition into a liquid state. Check for any blockages in the condenser coils that may reduce efficiency, and ensure the fan connected to it is working properly.
The evaporator coil plays an important role in absorbing heat from the environment, thus cooling the air. These coils are typically located inside the indoor unit. Inspect them for any ice buildup, which could indicate an issue with airflow or refrigerant levels. A blocked or frozen evaporator coil reduces cooling performance.
The expansion valve controls the flow of refrigerant into the evaporator coils. It regulates refrigerant pressure and helps maintain a steady temperature inside the space. A malfunctioning expansion valve can cause temperature fluctuations or poor cooling efficiency. Inspect for any leaks around the valve or signs of excessive wear.
Identifying Fans and Airflow Components
Fans play a vital role in both the condenser and evaporator sections, aiding in the circulation of air and the dissipation of heat. The condenser fan pushes air over the coils, while the evaporator fan moves the cooled air into the room. Check each fan for any obstructions or wear, as a malfunctioning fan can severely impact the system’s performance.
Electrical Components and Controls

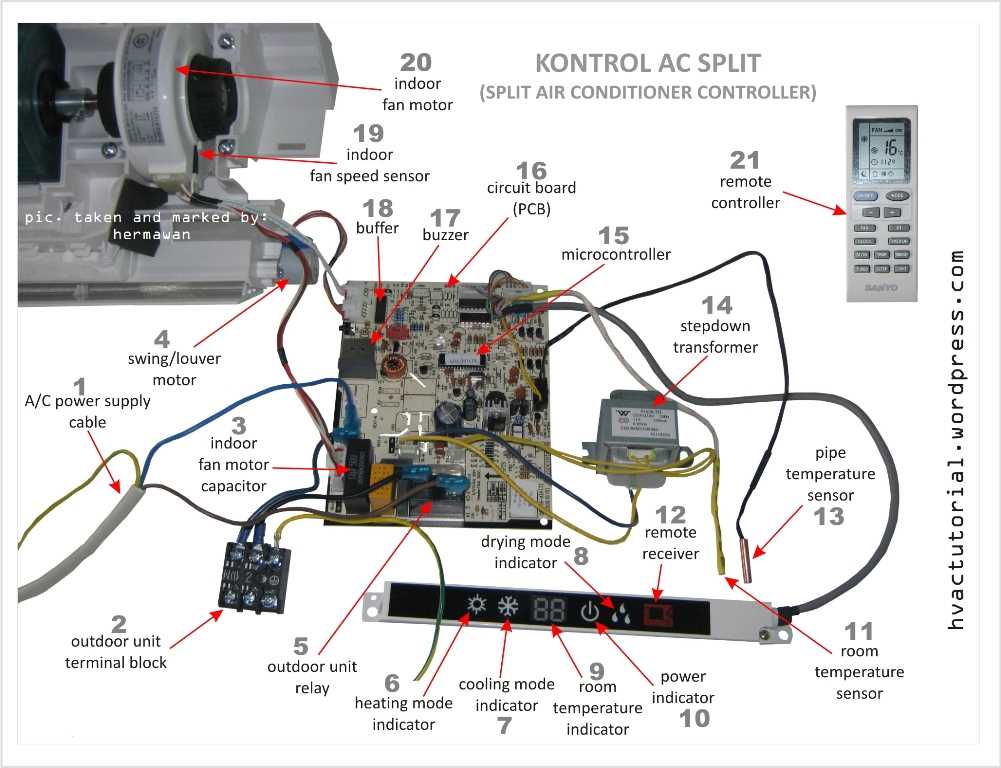

Control boards and wiring are key to ensuring that all components work together smoothly. Check the electrical connections between the power supply, compressor, and fans. Ensure all wiring is intact, without any visible wear or fraying, to avoid short circuits or malfunctions. If the unit features a digital display or remote control, verify that the signal is correctly received by the system’s control board.
Finally, ensure that all filters, vents, and ducts are clean and clear of debris. Blocked air filters or vents can lead to inefficient cooling and strain on the system’s components. Regular maintenance, such as cleaning the filters and ducts, can significantly improve the longevity and efficiency of the system.
