For a reliable connection between your vehicle and towing equipment, follow this guide to understand the correct configuration of the 7-pin connector. Properly connecting each wire is vital for full functionality, ensuring that your lights, brakes, and auxiliary systems work seamlessly. Start by identifying each terminal on the connector, which will typically be arranged in a specific order for Ford models.
Begin by connecting the ground wire, usually a white wire, to the frame of the vehicle. This ensures a stable electrical path and prevents faults. The next step is connecting the brake signal (typically the blue wire) to control the brakes on the trailer. This will allow you to have full control over braking power during towing.
Next, wire the reverse lights with the appropriate terminal, often marked for easy identification. This helps activate reverse lights on your trailer when you reverse your Ford. Don’t forget to check the tail lights connection as well, which should be linked to the rear lights of your vehicle for night-time visibility.

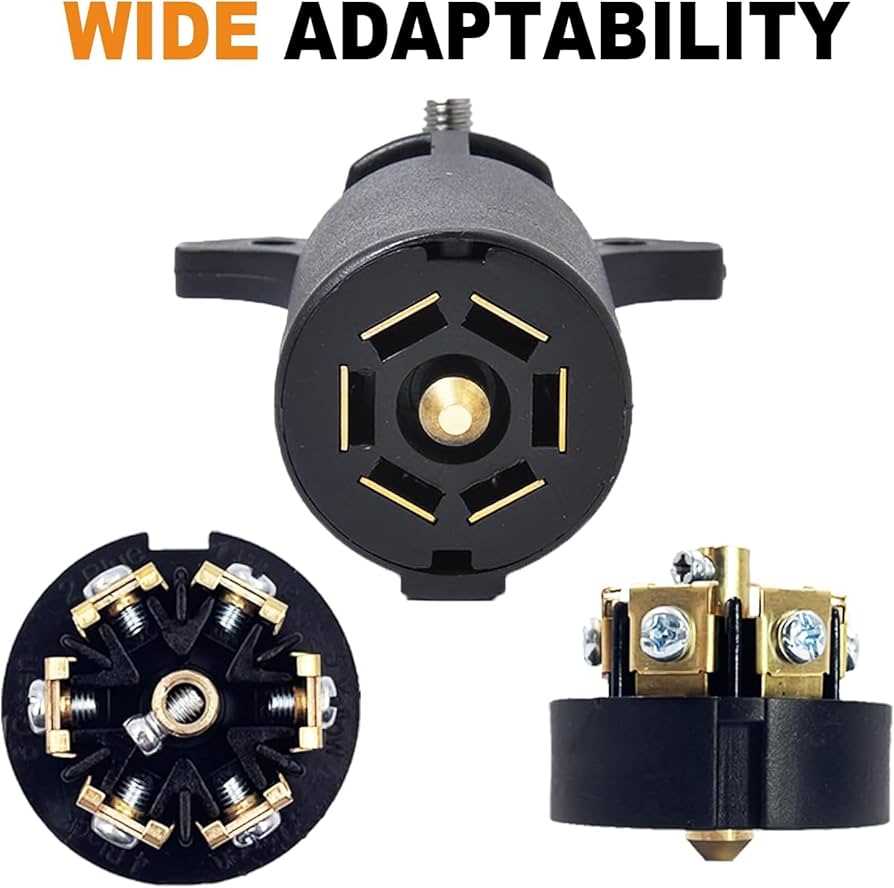

7 Pin Connector Setup for Ford Vehicles
Start by ensuring that the vehicle’s power source is turned off before beginning the installation. The most common setup for a 7-pin connector includes several key terminals for various electrical functions. The first terminal should be connected to the ground, typically a white wire, to establish a stable circuit. The ground wire is vital for minimizing electrical interference and ensuring a safe connection between the vehicle and the equipment.
The next terminal is for the brake controller signal, often represented by a blue wire. This connects to the trailer’s braking system, ensuring that the vehicle’s brakes are activated when necessary. The blue wire is essential for controlling braking strength during towing, offering safer stopping capabilities.
Connecting the Tail Lights
For proper visibility during nighttime driving, the tail lights should be wired next. Typically, this function is handled by the brown or yellow wire. Make sure the tail light terminal is connected to the rear lighting system of the vehicle, which allows the lights on the towed equipment to work in sync with your own vehicle’s lighting system.
The reverse lights terminal follows, often marked for easy identification. This is usually a green wire that activates the reverse lights on the towed unit when the vehicle is placed in reverse gear. Proper connection of this terminal is crucial for preventing accidents in low-light conditions when backing up.
Auxiliary Power and Charging Circuit
Lastly, the 7-pin connector includes an auxiliary power terminal, typically handled by the black wire. This provides power to charging systems or auxiliary equipment on the towed unit, like a winch or interior lights. When installing the auxiliary power wire, ensure it is connected to the vehicle’s battery or alternator system for a consistent power supply during long trips.

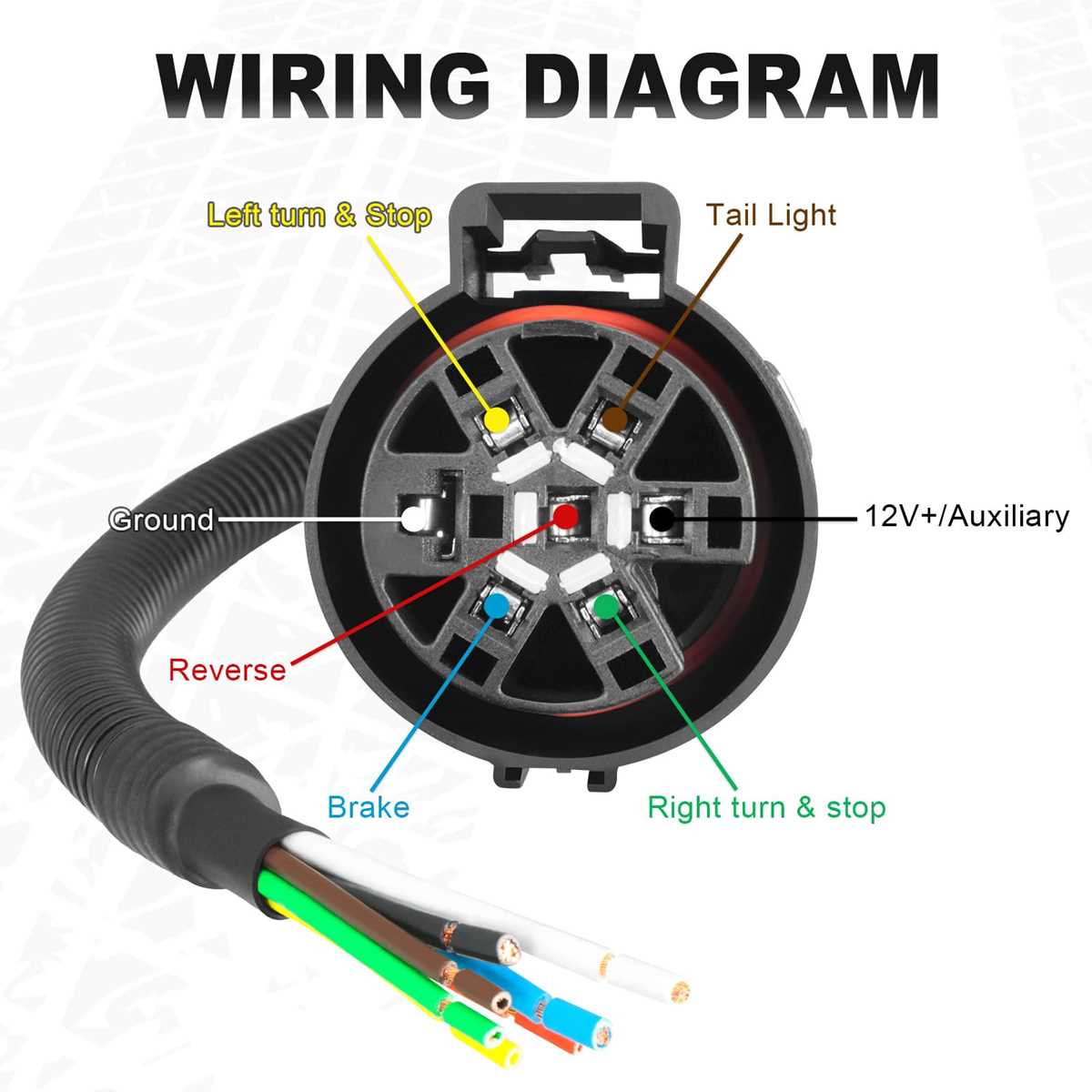

How to Identify the Wires on a 7 Pin Connector for Ford Vehicles
Start by examining the metal pins of the connector to identify the key functions assigned to each one. Typically, the first pin, located in the top left corner, is for the ground wire, marked with a white wire. The second pin is for the brake controller, which is connected to the blue wire and activates the brakes on the towed unit when necessary. Next, the third pin is dedicated to the tail light circuit, usually the brown wire, which powers the running lights of the towing setup.
Assigning the Remaining Wires
The green wire generally handles the reverse lights, activated when the vehicle is in reverse. The yellow wire is typically used for the left turn signal, while the right turn signal is assigned to the red wire. Finally, the black wire provides auxiliary power to supply energy to the towed unit’s accessories. Make sure to carefully match the correct wire color to each pin, as this ensures proper function of all connected systems.
