Check the function of each conductor before attaching it to the socket. Ground lines must be secured to a clean metal surface to prevent signal loss and flickering of brake and turn lights.
Use color coding to match circuits: yellow for left signals, green for right signals, brown for tail and marker lights, and blue for electric brakes. Ensuring proper alignment prevents short circuits and faulty lighting.
Apply dielectric grease to terminals to reduce corrosion and maintain stable current flow. Tighten each connection to avoid loosened contacts caused by vibrations during transit.
After assembly, test the system using a multimeter or a test lamp to confirm continuity and correct operation of all auxiliary circuits including reverse lights and battery feed.
7 Conductor Connector Setup Guide
Secure the ground conductor to an unpainted metal surface to maintain stable voltage across all circuits. Loose grounding can cause flickering lights or intermittent brake activation.
Match each color-coded line to its function: yellow for left indicators, green for right indicators, brown for tail and marker lamps, blue for electric brakes, white for chassis ground, and red for auxiliary power. Correct alignment avoids shorts and prevents blown fuses.
Securing Connections
Apply a thin layer of dielectric grease to terminals before inserting them into the socket to prevent corrosion. Crimp terminals tightly and verify that no wires can pull free under tension or vibration. Use heat-shrink tubing for added insulation where possible.
Testing and Troubleshooting
Use a test lamp or multimeter to verify continuity on each circuit. Check that brake lights, turn signals, and auxiliary circuits operate correctly before hitting the road. Re-inspect connections after initial use to ensure stability and safety of all electrical paths.
Identifying Wire Functions and Color Codes
Verify each conductor’s purpose before making any connections. Incorrect assignments can disable brake lights or turn signals and may damage the control system.

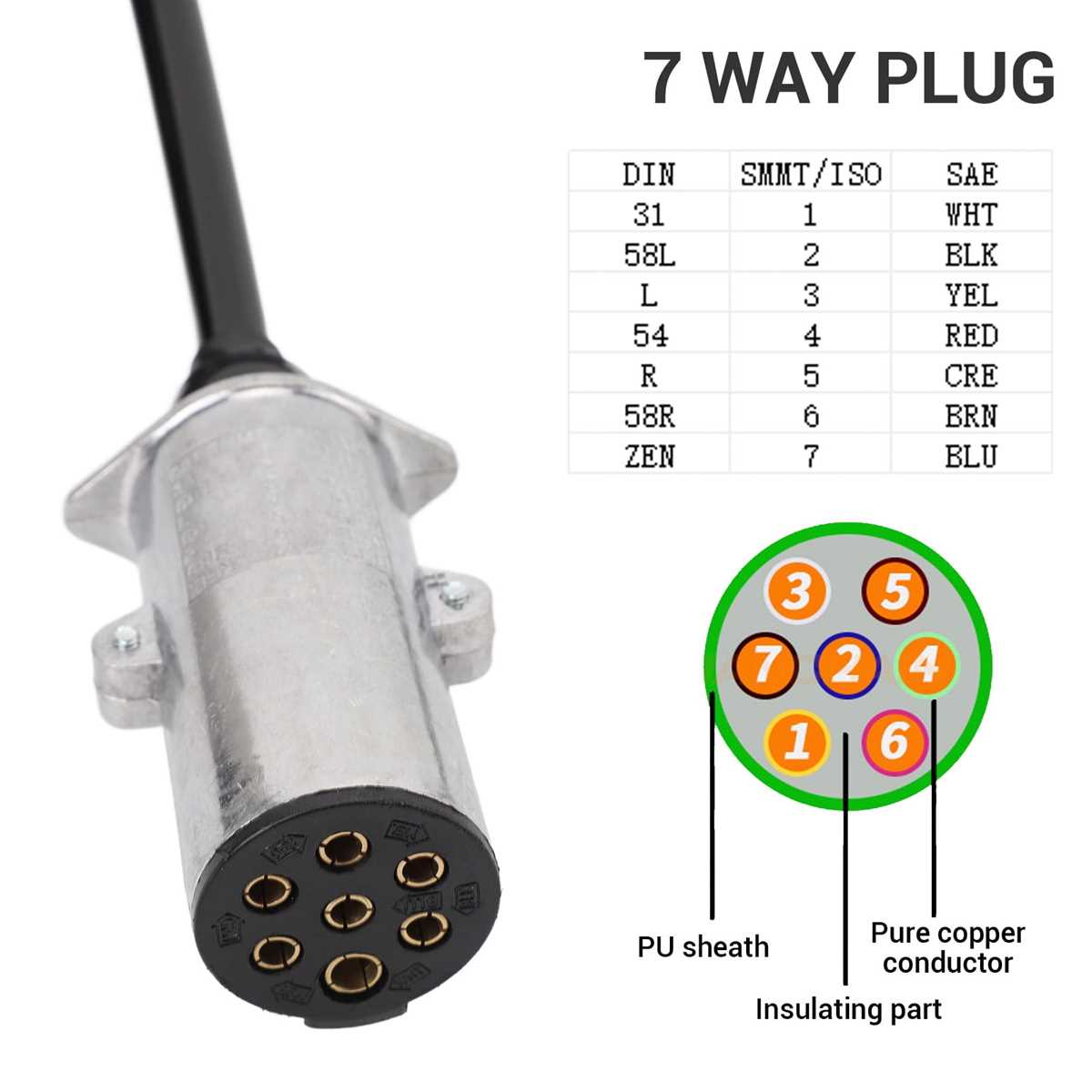

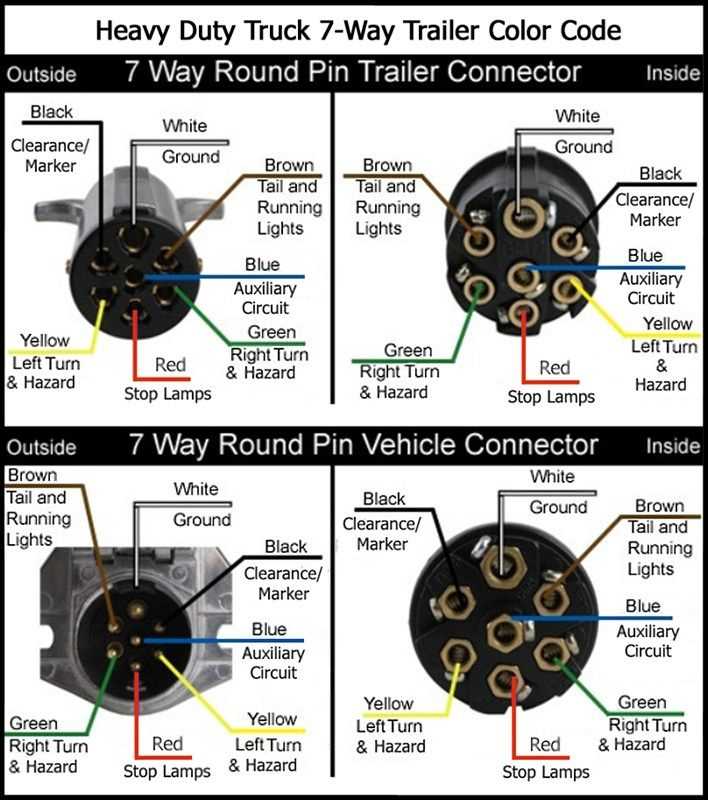

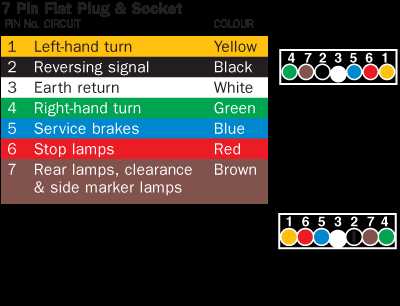

Follow this standard color guide for safe connections:
- Yellow – left turn indicator
- Green – right turn indicator
- Brown – tail and marker lamps
- Blue – electric brake activation
- White – chassis ground
- Red – auxiliary power or battery feed
- Purple – reverse lights or backup circuits
Trace each cable from the connector to its terminal to confirm continuity. Frayed or cut insulation can create shorts that may blow fuses or trigger erratic signals.
Label each line after testing to prevent confusion during installation or maintenance. Use numbered or color-coded tags for quick identification in complex setups.
Check voltage levels at each terminal using a multimeter. Brake and signal circuits should read 12 volts when activated and zero when off to confirm proper routing.
Keep positive and ground lines separated to reduce electromagnetic interference. Twisting pairs carrying signals with a return path helps maintain stable illumination.
Inspect connector pins for corrosion or oxidation before attaching leads. Clean terminals with a wire brush or contact cleaner to ensure reliable contact across all circuits.
Document the final layout for future reference. A simple chart showing color, function, and terminal location speeds troubleshooting and prevents mistakes during replacements or upgrades.
