To ensure a safe and functional electrical connection for towing, follow the correct setup for each of the seven contacts. Begin by identifying the colors and positions of the wires, as these correspond to specific functions like brake lights, turn signals, and ground connections.
The first step is matching the wires to the correct pins. The common setup assigns each wire to a particular circuit, such as the ground wire to the center and the other wires to corresponding functions like lights and signals. Make sure to double-check the wiring scheme for your specific setup to avoid any confusion or malfunction.
If you face issues with inconsistent lighting or malfunctioning signals, it’s often due to improper connections or corrosion at the contact points. Cleaning the terminals and ensuring each connection is tight will go a long way in solving common electrical problems.
7 Pin Round Trailer Plug Wiring Guide

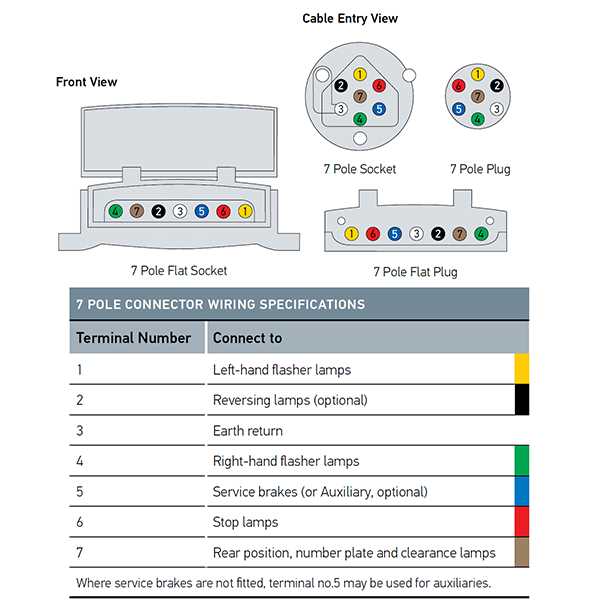

For reliable and safe connections, each wire must be connected to its designated slot. To get started, match the wire colors with the corresponding terminals. The common configuration is:
- Ground – 12 o’clock position (usually white)
- Left Turn Signal – 10 o’clock (yellow)
- Right Turn Signal – 2 o’clock (green)
- Brake Lights – 4 o’clock (brown)
- Tail Lights – 6 o’clock (blue)
- Auxiliary Power – 8 o’clock (purple)
- Electric Brakes – 9 o’clock (red)
After confirming the wire-to-terminal assignments, check the insulation of the cables for any visible damage or wear. Frayed or cracked wires can lead to malfunctions or even electrical shorts. If any wires appear damaged, replace them before proceeding with the connections.
Once the connections are secured, test the system by activating the lights, signals, and brakes. If certain components do not function, inspect the corresponding terminal and wire for proper contact. Ensuring that the terminals are clean and corrosion-free will help maintain long-term functionality.
Understanding the 7 Pin Round Trailer Plug Pinout
The first step in correctly connecting the electrical system is to understand the exact configuration of each terminal. For a seven-terminal setup, each terminal serves a specific function, from powering lights to providing brakes. Knowing which terminal does what will help you avoid errors during installation.
In most cases, the terminal layout follows a standardized pattern, with the ground connection located at the center. This central contact ensures a proper electrical return path, which is critical for the safe operation of all systems. The ground connection is typically the first one to check if electrical issues arise.
The second and third terminals usually control the turn signals–left and right. These are often placed at the 10 o’clock and 2 o’clock positions, respectively. Ensure that these wires are connected to their designated functions to avoid malfunctioning signals, which could lead to dangerous situations on the road.
Next, the brake lights are generally positioned at the 4 o’clock position. This terminal controls the braking system’s light, which is crucial for signaling stopping intentions to other drivers. A common mistake here is miswiring the brake and tail light circuits, leading to incorrect operation of both functions.
At the 6 o’clock position, the tail lights receive power. This terminal is responsible for illuminating the rear lights of the vehicle or towing system. A malfunction here typically results in the absence of lights during night driving or poor visibility in low-light conditions.
The auxiliary power connection is usually found at the 8 o’clock position. This terminal is used to power additional features, such as a refrigerator or a battery charger, on the towed unit. It’s important to check that this connection is properly wired to avoid any power supply failures during long trips.
The final terminal, found at the 9 o’clock position, is often reserved for electric brakes. This connection allows you to activate the braking system of the towed unit. Make sure this terminal is connected securely to ensure proper brake response when towing heavy loads.
Double-check each connection after installation to ensure no wires are loose or improperly connected. Even small issues can lead to bigger problems down the line, such as overheating or malfunctioning of systems. Always test each function before using the system on the road to confirm that everything is working as expected.
