Connect the incoming power lines to the designated terminals marked for line input and verify all connections are tightened to prevent arcing under full load conditions. Use a torque wrench set to manufacturer specifications to secure terminal screws and prevent loosening during operation.
Install a reliable grounding conductor directly to the enclosure’s grounding bus to reduce the risk of electric shock. Confirm continuity between the ground bus and metal chassis using a multimeter before energizing the system.
Label all conductors with color-coded tags to distinguish between line, load, and neutral connections. This reduces installation errors and aids future maintenance, especially when multiple units are installed in series or parallel.
Verify voltage compatibility of connected equipment to prevent overloading. For a 60-unit load capacity, ensure upstream breakers are rated appropriately and that line voltage does not exceed the unit’s maximum specifications.
Before energizing, perform a continuity check across all terminals to detect inadvertent shorts or open connections. Use a low-resistance ohmmeter and record readings for reference during commissioning.

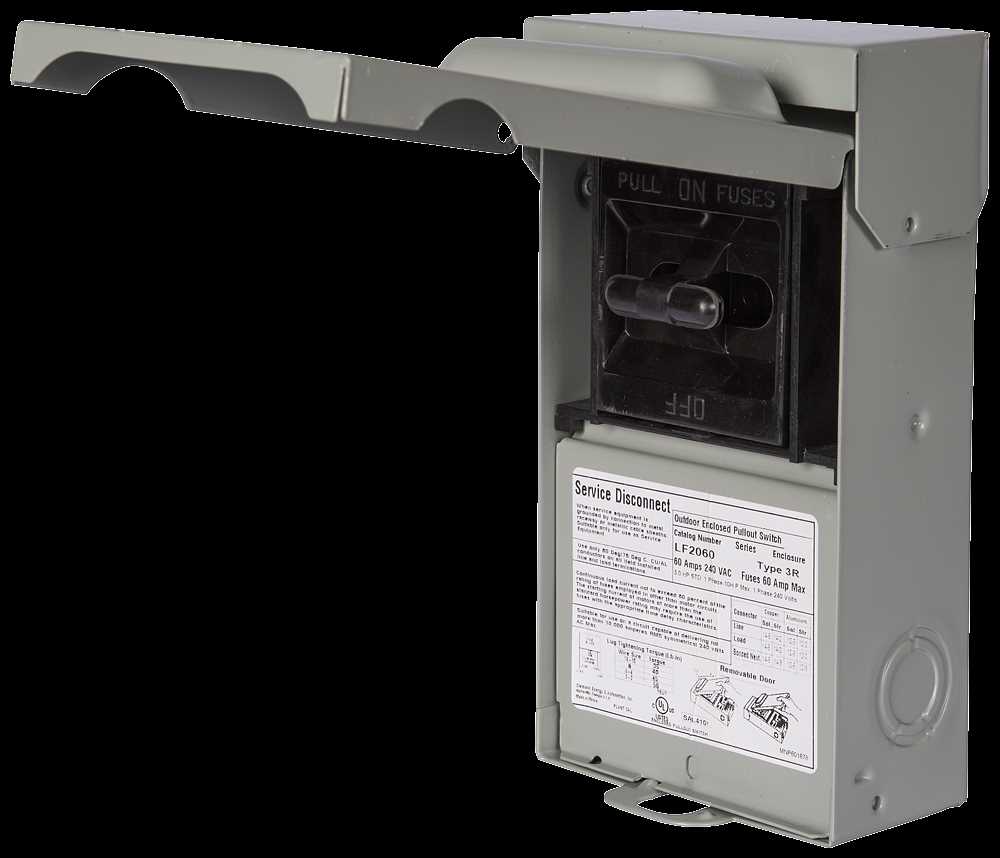

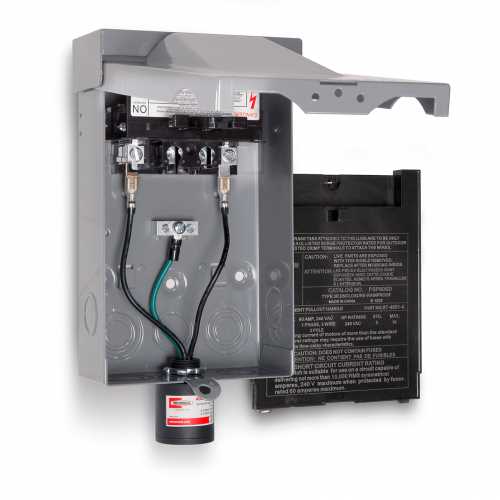

60 Amp AC Disconnect Connection Guide
Attach incoming line conductors to the terminals labeled for live feed, ensuring all connections are firmly tightened to prevent arcing. Use a torque screwdriver set to the manufacturer’s specifications for consistent contact pressure.
Connect the neutral conductor to the designated bus bar and verify continuity with a multimeter. This step prevents potential ground faults and ensures proper load operation.
Install a dedicated grounding conductor from the enclosure to a certified ground point. Check resistance to ground is below 1 ohm before energizing to reduce the risk of electric shock.
Load Side Connections
- Attach outgoing conductors to the load terminals in the order specified by the manufacturer.
- Ensure cable insulation is stripped just enough to fit under the terminal clamps without leaving exposed metal.
- Verify that line and load labels correspond to the correct phases to maintain polarity and prevent reverse current flow.
Final Checks
Perform a continuity test across all connections before closing the enclosure. Document resistance readings for future maintenance and inspect terminal screws for tightness.
Confirm all covers are secured and protective barriers are in place. Only energize the unit after verifying proper grounding, correct line/load placement, and tight connections to ensure safe and stable operation.
Identifying Correct Input and Output Terminals
Mark each line entering the unit clearly, using colored tape or labels for each phase. This prevents accidental cross-connections and ensures that incoming power aligns with the designated terminals.
Check the manufacturer’s stamped markings on the enclosure; terminals are often labeled “line” for incoming conductors and “load” for outgoing connections. Always confirm with a multimeter to avoid misidentification.
Use a continuity tester to trace conductors before attaching them. Testing ensures the conductor you intend for the output is not inadvertently connected to an input terminal.
Visually inspect terminal shapes and positions. Input terminals are usually separated from the output side by an internal barrier or mounting orientation to minimize the risk of shorts.
Measure voltage levels at each terminal when the system is safely energized. Input points should match the line voltage, while output terminals will show reduced or controlled voltage depending on internal components.
Document terminal assignments in a log for future reference. Label both the terminal and the connected conductor to simplify troubleshooting and maintenance.
Verify torque settings on each connection after identification. Loose or improperly tightened terminals can lead to overheating or intermittent operation on both input and output sides.
Recheck phase alignment before energizing the unit. Confirm that all inputs and outputs are connected according to the verified plan to maintain proper current flow and operational safety.
