Begin by identifying the four-prong connector that supplies your RV with full electrical service. Ensure the incoming feed is de-energized before any connections. Use a quality voltage tester to confirm zero current before handling wires.

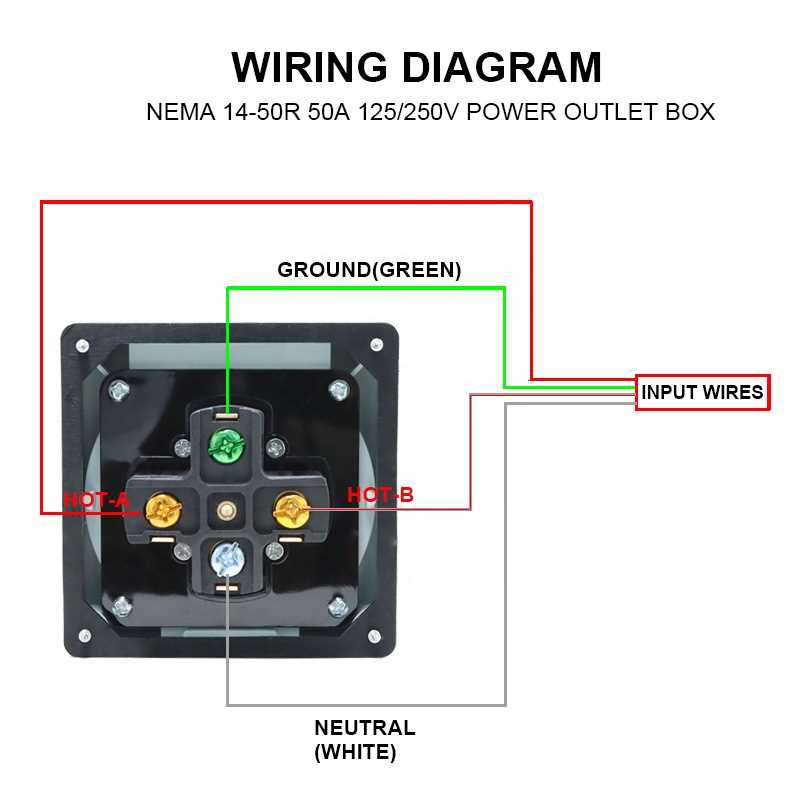

Each conductor serves a specific function: two hot lines, a neutral, and a grounding conductor. Connect the hot lines to the corresponding terminals on the female receptacle, taking care to match the correct polarity. The neutral wire attaches to the silver-colored terminal, while the ground wire fastens securely to the green terminal.
Secure all connections with a proper torque to prevent overheating. Inspect for any signs of wear, corrosion, or loose strands in the conductors. Route the cable so it avoids sharp edges and mechanical strain, and use clamps or supports to maintain stability along the run.
After completing the installation, re-energize the feed and verify proper function using a multimeter. Check each leg for the expected voltage and ensure the ground is continuous. Only after these steps can the RV be safely plugged in for full operational capacity.
50 Amp RV Power Connection Practical Guide
Use a dedicated dual-pole breaker to connect your recreational vehicle safely to a high-capacity power source. Ensure the conductors are correctly sized: two hot lines of 6-gauge copper, a neutral of the same gauge, and a ground wire rated at 10-gauge. Verify that all terminals are tightened to manufacturer torque specifications and that the protective cover is properly seated to prevent accidental contact. Always test voltage with a multimeter before plugging in to confirm correct polarity and absence of faults.
Organize the feed system with a clear layout to minimize interference and overheating.
- Route cables away from sharp edges and heat sources.
- Label each line for easy troubleshooting and maintenance.
- Use corrosion-resistant connectors and weatherproof boxes for outdoor connections.
Regular inspection for signs of wear, discoloration, or loose connections reduces fire risk and ensures consistent performance. Incorporate a breaker lock or cover to prevent accidental switching and improve safety during periods of inactivity.
Selecting Proper Wire and Breaker for a 50 Amp RV Outlet
Use a four-conductor cable rated for 125 volts with a minimum gauge of 6/3. This ensures the circuit can safely handle the electrical load of a recreational vehicle without overheating or voltage drop issues. Each conductor should be clearly identified: two hot lines, one neutral, and one ground, with color-coded insulation for accurate connections.
Install a double-pole breaker rated for 50 units to protect the circuit from overcurrent conditions. This breaker type interrupts both active conductors simultaneously, reducing the risk of damage to connected appliances and preventing potential hazards caused by unbalanced loads.
Consider the length of the cable run when selecting wire gauge. For distances exceeding 100 feet, increasing the wire size to 4/3 may be necessary to maintain voltage stability and reduce resistance losses. Always calculate voltage drop to ensure devices operate within their optimal voltage range.
Grounding and Safety Measures
Ensure the ground conductor is securely connected to both the breaker panel and the vehicle chassis. A solid grounding path reduces the risk of electric shock and ensures sensitive electronics function correctly. Use corrosion-resistant terminals to maintain reliable contact over time, especially in outdoor environments.
When routing the conductors, avoid sharp bends and proximity to heat sources or high-traffic areas. Protective conduits or cable trays can shield the conductors from mechanical damage and environmental wear, extending the lifespan of the installation and maintaining safety standards.
Inspection and Compliance
After installation, test the circuit using a multi-meter or receptacle tester to verify proper voltage, polarity, and grounding. Follow local electrical codes and standards to ensure the installation meets legal and safety requirements. Document the installation details for future reference and maintenance checks.
