Start by selecting a power source that matches the voltage and current requirements for your setup. Make sure the battery can provide enough power to drive the motor without causing a voltage drop. A consistent power flow is vital to avoid sudden shutdowns or malfunctions.
Next, connect the power supply to the motor controller. Proper connection is key: the positive terminal from the battery should be linked to the controller’s input terminal, while the negative terminal should connect directly to the motor’s power input. This ensures the system operates smoothly and prevents reverse polarity issues.
It’s important to include fuses in the connections to protect the motor and battery from overcurrent situations. A fuse with the appropriate rating should be placed near the battery to disconnect the system if an overload occurs, preventing damage to sensitive components.
Ensure that all connections are properly insulated to prevent short circuits. Any exposed wire can cause sparks or damage when in contact with the frame or other metal parts. Insulated connectors should be used, and all terminals must be tightly secured to avoid accidental disconnections while riding.
Finally, test the system before full use. Once connected, check for any irregularities, such as abnormal heat generation, flickering lights, or uneven performance from the motor. Addressing these issues early will save time and ensure the system works reliably over time.

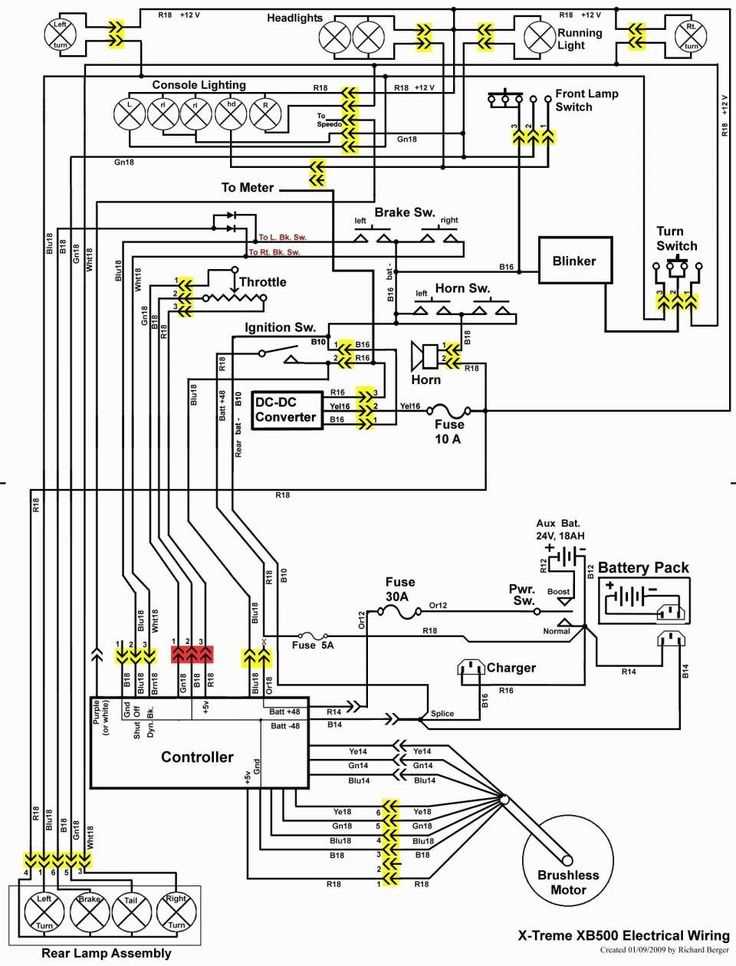

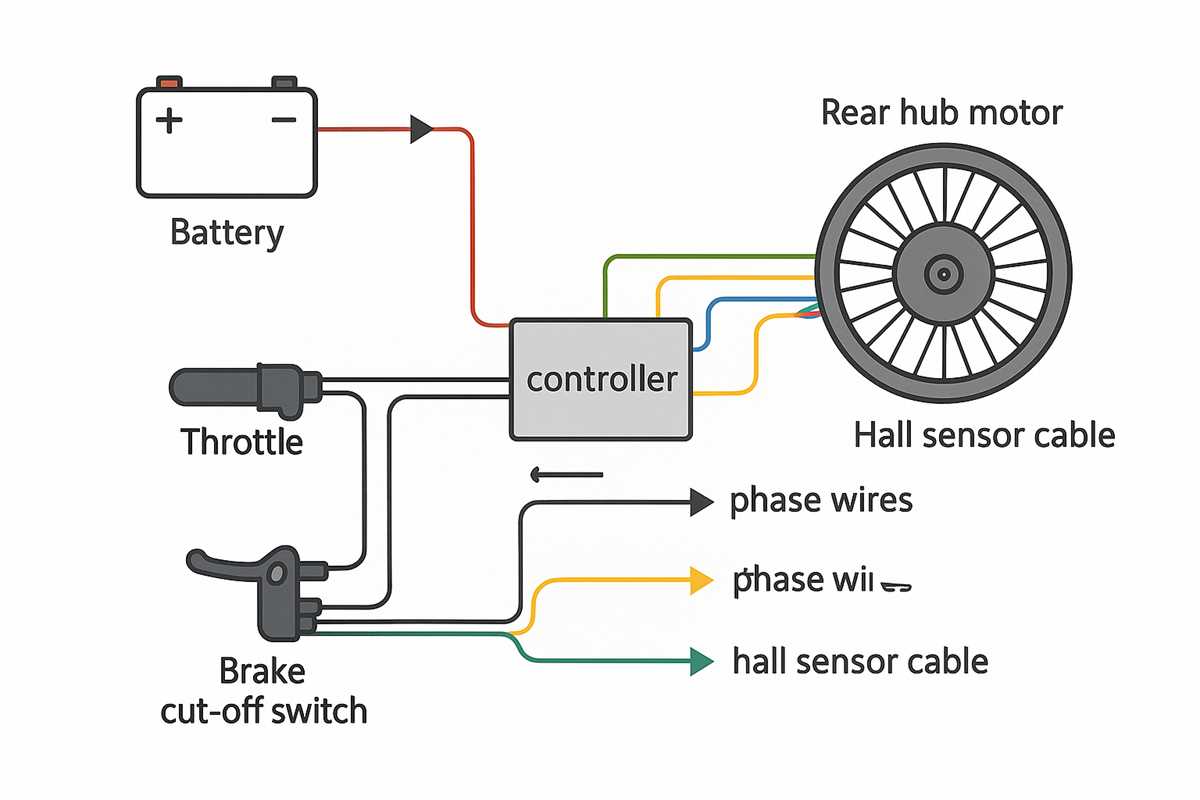

48V E-Bike Wiring Diagram
Start by connecting the power supply to the controller. Make sure that the positive terminal of the battery is connected to the controller’s positive input. The negative terminal should be connected to the motor controller’s ground. This ensures that the power flows properly through the system.
Next, connect the motor to the controller. The positive and negative terminals of the motor should correspond to the controller’s outputs. The wiring should be done using high-quality, insulated cables to prevent short circuits and ensure reliable performance.
For safety, it is important to add a fuse in the main power line. This fuse should be placed as close to the battery as possible, ensuring that any potential overloads or short circuits are quickly addressed. The fuse should be rated for the total current of your system.
- Use wire gauge that matches the power requirements of your system.
- Check that all connections are tight and secure to avoid loose wires that can cause issues during use.
In addition to the main power connections, don’t forget the throttle and brake sensors. These components send signals to the controller to adjust power output. Ensure that the throttle is wired correctly to the controller’s input and that the brake sensors are connected to their respective ports.
Finally, perform a test of the system. Once everything is connected, power on the system and check if the motor is functioning as expected. If there’s no response, recheck the wiring, particularly the connections to the controller and motor. It’s also important to verify that the battery voltage is correct for your system.
How to Properly Connect the Battery to the Motor and Controller
Start by identifying the battery terminals. The positive terminal of the battery must be connected to the positive input on the controller. The negative terminal should be linked to the controller’s ground terminal. Use high-quality connectors to ensure a solid connection, minimizing the risk of voltage drops or loose contacts.
Next, connect the motor’s input terminals to the controller’s output terminals. Double-check the motor’s polarity–incorrect connections can prevent the motor from functioning or cause damage. Most motors have clearly marked positive and negative terminals, making this process straightforward.
Checking Cable Gauge and Insulation
Use cables with the proper gauge for your system’s current requirements. Under-sized cables can overheat and lead to failure. For longer distances, choose thicker cables to reduce power loss. Additionally, ensure that all wires are properly insulated to avoid short circuits, especially when routed near metallic parts of the frame.
Ensure the connectors are securely attached and insulated. A loose or exposed connection can result in a loss of power or create sparks that may cause damage. Use heat shrink tubing or electrical tape to insulate all connections, particularly those connecting the battery, controller, and motor.
Securing the Battery and Controller
Mount the battery securely in a stable location on the frame. It is crucial to ensure that the battery is fixed tightly and does not move during riding. Any shifting could result in wire strain or disconnections. Similarly, the controller should be mounted in a safe, dry location, protected from excessive heat or moisture.
Before powering on, check all connections again. Ensure that all terminals are clean and free of corrosion. Tighten all screws and connectors to make sure there’s no loose wiring, as this could lead to intermittent power loss or dangerous electrical shorts.
Once everything is properly connected, power on the system and observe the motor’s response. If the motor doesn’t activate, verify the connections one more time, paying close attention to polarity and securing all components. If problems persist, inspect the controller and battery for any signs of malfunction.
