To properly connect your 36-volt system, start by ensuring that all components, from the battery pack to the motor, are correctly identified and connected. Misplacing any connections can lead to system failure or malfunction. Use a color-coded system for the wires, ensuring each link is securely fastened. A tight connection minimizes the risk of power loss and enhances longevity.
When linking the battery to the motor, pay attention to the polarity of the connections. Reverse polarity can cause severe damage to both the motor and controller. Always double-check the battery terminals and ensure the positive lead connects to the positive terminal on the motor, and likewise for the negative.
Frequent issues arise from poor insulation or frayed cables. Regular inspection of the system for any signs of wear can prevent costly repairs. If you notice any exposed wires, replace them immediately to avoid short circuits. Always use the correct wire gauge for your system’s amperage to ensure optimal performance.
Proper Connections for a 36 Volt Electrical Setup

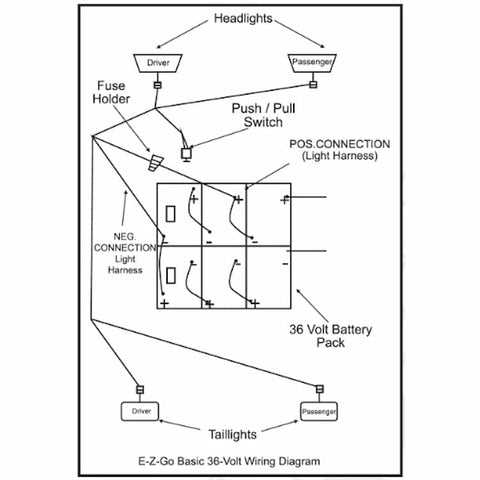

To ensure a reliable power flow, start by verifying the configuration of your battery bank. Connect the batteries in series to achieve the required voltage level. A typical setup includes six 6-volt batteries, arranged in series, resulting in the necessary energy output. Always double-check the connections between the batteries, ensuring that the negative terminal of one is linked to the positive terminal of the next.
Identifying Key Components in the Circuit
The controller is at the heart of the electrical setup. This component regulates the current, ensuring that the motor receives the proper amount of power at any given time. It’s important to select a controller that matches the voltage and amperage of your power source to prevent system failure. Make sure the controller is securely mounted and all input and output connections are tight to prevent any electrical loss or damage.
Troubleshooting Power Issues
If the system is not functioning properly, inspect the connections from the power source to the motor. Corroded or loose terminals are a common cause of interruptions in power flow. Additionally, check the fuses and ensure they are correctly rated for the system. If the motor fails to engage or operates erratically, it could signal issues with the controller, which may require testing or replacement.
How to Identify Key Components in a 36 Volt Electrical System
Start by locating the power source, which is typically a series of batteries. In most setups, these batteries are connected in series to achieve the required output. Each battery should be labeled with its voltage and amperage rating. Ensure that the positive terminal of one battery is connected to the negative terminal of the next, creating a continuous flow of current.
Battery Connections
The batteries should be securely mounted and connected with corrosion-resistant terminals. Check each battery for signs of wear, leaking, or swelling, as these are indicators of potential failure. Make sure the cable connections are tight, and use a multimeter to confirm that the voltage is being properly distributed across the entire battery bank.
Controller and Motor
The controller is a key element in managing power flow from the battery to the motor. It adjusts the current sent to the motor based on user input, such as the throttle. Check the controller for visible signs of damage, and ensure that the connections are firm. If the motor is not responding, the issue may lie with the controller, the motor, or their connection points.
- Inspect the controller for overheating or burnt smells.
- Ensure that all wires leading to the motor are undamaged and securely fastened.
- Test the continuity of the controller with a multimeter.
Next, check the motor itself. The motor’s power leads should be properly insulated, and there should be no exposed wires. If the motor struggles to start or runs intermittently, it could indicate a faulty connection or an issue with the motor’s internal components. The motor’s resistance should also be tested using a multimeter to ensure it’s within normal parameters.
- Verify that the motor is grounded properly.
- Ensure no debris or dirt is obstructing the motor’s internal parts.
Lastly, examine the fuse and relay system. These components act as safety mechanisms by preventing electrical overloads. Inspect all fuses for signs of damage, and replace any that appear burnt or blown. Relays should click into place when activated and should not show signs of wear or corrosion.
