Step by Step Guide to Wiring a 3 Wire Motion Sensor Light

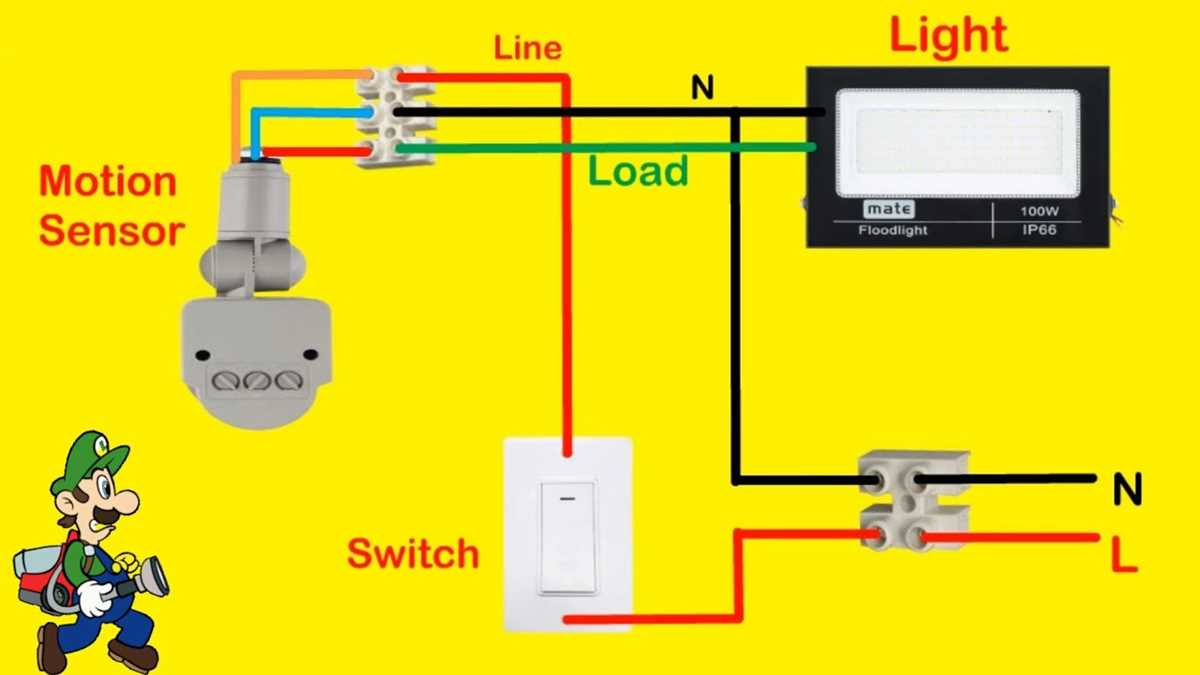

3 wire motion sensor light wiring diagram

Start by ensuring that the power is switched off before beginning any installation. Identify the three necessary connections: the incoming power, the load for the fixture, and the neutral to complete the circuit. Each of these connections must be secured properly for the system to function safely and effectively.

The first step is to connect the live or hot conductor from the power source to the designated terminal. Make sure to securely fasten the conductor to the terminal to avoid any loose connections that could cause a short circuit or electrical malfunction.

Next, connect the neutral conductor to the corresponding terminal. This completes the return path for the current and is crucial for maintaining the integrity of the electrical system. Ensure that the neutral wire is tightly connected, with no exposed metal that could cause a shock hazard.

Finally, connect the load conductor to the fixture terminal. This wire controls the flow of electricity to the connected device, ensuring that it operates only when triggered by the system. It is essential to properly secure the load wire and confirm it is correctly routed to the fixture.

Once all connections are made, carefully inspect the setup for any signs of loose connections or exposed wires. After confirming everything is secure, restore power to the system and test the setup. The device should now function as intended, activating the fixture when triggered.

For safety, always follow the manufacturer’s instructions for any specific guidelines on voltage, wire color codes, or particular setup configurations for the best results. If unsure about any step, consult a licensed electrician.

Connecting a 3-Wire Motion-Activated System

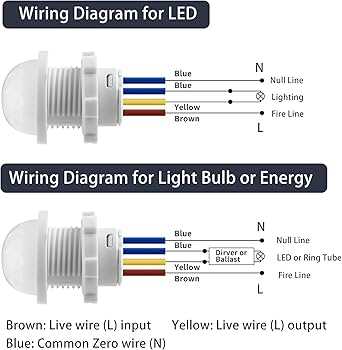

3 wire motion sensor light wiring diagram

To begin the installation, ensure the power is turned off at the breaker box. This is a critical step for safety. The system typically includes three wires: one for the incoming power, one for the load, and one for neutral. These must be connected securely for proper functionality.

First, connect the live or hot wire from the power source to the terminal that controls the power flow to the load. Be sure to tighten the connection to avoid any loose contacts, which can lead to malfunctions. Next, connect the neutral wire to the appropriate terminal to close the circuit. This wire serves as the return path for the current, and a loose connection can cause the system to fail.

Finally, attach the load wire to the terminal that controls the device. This wire ensures the fixture receives power only when triggered. After making all the connections, inspect the setup for any exposed metal or insecure connections. If everything appears secure, restore power and test the system to confirm it operates correctly.

How to Identify the Three Wires in a Motion Sensor

To properly identify the three lines, begin by checking their color coding. Typically, you’ll find a black or red line that carries the live current from the power source. This is the first line you’ll need to connect to the main power supply.

The second wire, usually white or blue, is the neutral line. This wire acts as the return path for the current. It is crucial to ensure that this wire is properly connected, as it completes the circuit, allowing the system to function correctly.

The third line is usually a ground wire, often green or bare. It is used for safety purposes, grounding the electrical system to prevent shocks. Always ensure the ground wire is securely attached to the designated terminal or grounding point on the mounting surface for safe operation.
