To build an efficient 3-stage sequential logic system, use flip-flops as the primary components. By connecting them in a specific configuration, you can achieve the desired counting sequence, typically used in digital systems for tracking events or generating specific outputs.
Each flip-flop in this setup will represent one stage of the system, toggling between two states as the input clock pulses are received. The most common flip-flop used in this arrangement is the JK or T flip-flop, which easily allows toggling with a simple clock signal. The number of flip-flops you need depends on how many different states you wish to cycle through; for a 3-state sequence, three flip-flops will suffice.
To complete the setup, connect the outputs of each flip-flop to an LED or another output device to indicate the current state of the system. The setup should also include proper timing control, often achieved with a clock generator that drives the flip-flops in synchronization. Ensure that the reset and clear lines are properly handled for accurate resetting and initialization of the sequence.

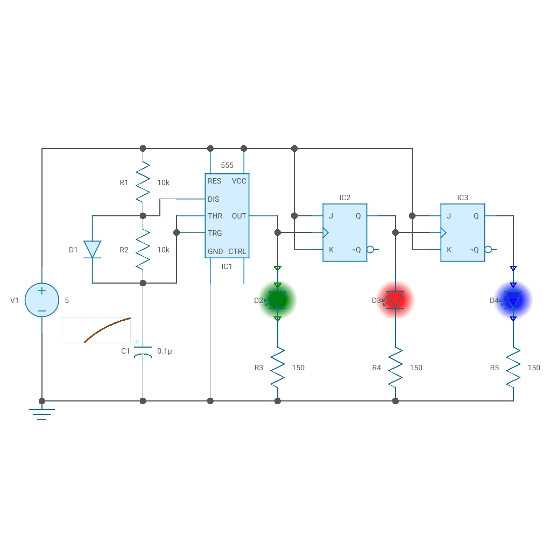

3 Bit Counter Circuit Guide
For a three-stage sequential design, use flip-flops to achieve the desired count. The flip-flops toggle between states on the input clock pulses, each representing a stage in the process. A JK or T flip-flop is often the best choice for such applications as they are easily controlled by a clock pulse.
The basic principle is straightforward: connect each flip-flop to the subsequent one so that the output of one drives the input of the next. This arrangement ensures that each flip-flop changes state in sequence, with the output representing the current stage of the sequence. A standard clock pulse will drive the entire chain of flip-flops.
The setup requires a clock signal that ensures all flip-flops toggle at the same time. This clock pulse is usually generated using an external oscillator or another signal source. Proper synchronization is key to ensuring that the entire sequence progresses in the right order.
Choosing Flip-Flops
When selecting flip-flops, consider the fact that JK flip-flops are ideal for this application. They offer clear control over the output, including the ability to toggle between states with a simple clock input. Using T flip-flops also provides a simplified version of this setup, where the flip-flop automatically toggles every time it receives a clock pulse.
Output Design
To make the output of each flip-flop visible, use LEDs or similar output devices. The state of each flip-flop can be displayed by lighting up an LED corresponding to that specific stage. Make sure to connect each flip-flop output to a current-limiting resistor and the LED to avoid overloading the circuit.
For proper initialization, ensure that the system includes a reset functionality. Reset lines will allow you to return all flip-flops to their starting state, which is especially useful for testing or when you need to restart the sequence. Control over the reset lines will enable the system to begin its sequence from the first state reliably.
Understanding the Basic Components for a 3 Bit Counter
The primary components required to design a three-stage sequential device are flip-flops. Flip-flops store the state of the device and switch between two states on each clock pulse. In most designs, JK or T flip-flops are used for this purpose due to their versatility and ease of control.
Each flip-flop in the sequence needs a clock input to toggle its state. The clock signal controls when the flip-flops change, ensuring synchronization across all stages. A steady clock pulse, often from an external oscillator, drives the system to step through each state in the correct order.
To connect multiple flip-flops in sequence, the output of one flip-flop is linked to the input of the next. This chain reaction ensures that the state of each flip-flop depends on the one before it. By controlling the flip-flops in this manner, you can create a counting or sequencing system.
Additional Components
To make the output of each flip-flop visible, components like LEDs can be added. LEDs light up according to the state of the flip-flops, providing a visual representation of the current stage. Ensure that each LED is connected through a resistor to limit current and prevent damage to the components.
Clock Signal and Reset
The clock signal is a crucial part of the system, as it determines how often the flip-flops change state. Use a stable oscillator to generate the clock pulses. Additionally, incorporating a reset function ensures that the entire system can be initialized or restarted from the first stage, which is particularly useful in testing and debugging.
Consider adding debouncing circuitry for the clock pulse if it’s coming from a mechanical switch. This prevents false triggering from noise or switch bouncing, ensuring that each clock pulse is counted once. This ensures reliability in the system’s performance.
