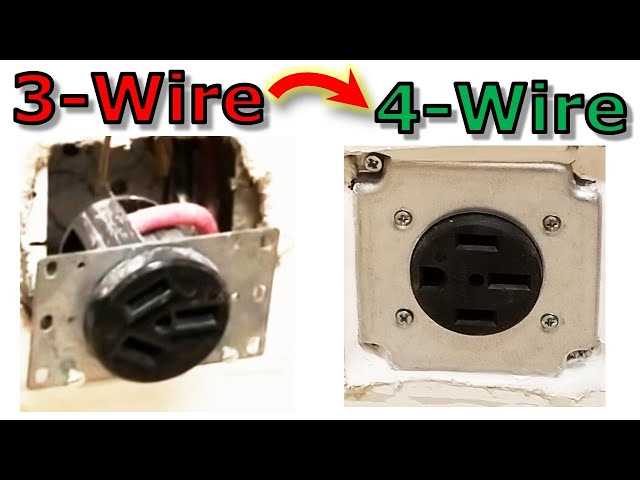

To correctly install and connect a 4-slot electrical receptacle, ensure that you first understand the different connections required for this setup. The wiring should be done according to the appropriate color codes, where each terminal corresponds to specific wires. The neutral, hot, and ground wires must be connected securely to prevent any electrical hazards or malfunction.
Start by identifying the terminals of the receptacle. Typically, these terminals are marked clearly for easy identification. The two hot terminals will carry the current to power the appliance, the neutral terminal should be connected to the white wire, and the ground terminal connects to the green wire. Pay close attention to the orientation of the wires to avoid any short circuits or improper connections.
Make sure to use the correct gauge wire for your appliance and double-check the connections before securing them. A loose connection can lead to overheating and potential damage to the equipment. Always use high-quality tools and materials to ensure safe and reliable installation. If you are unsure of any step, consult a licensed electrician to guarantee that the wiring is done according to local electrical codes.
220 4 Prong Plug Wiring Guide
To begin, it is important to identify the four terminals on your electrical connector. These terminals are designated for neutral, hot, and ground connections. The hot terminals are typically used for carrying the power, while the neutral wire will complete the circuit and return the electricity. The ground wire ensures safety by directing any stray current to the earth, minimizing the risk of electrical shocks.
The first step is to attach the neutral wire (usually white) to the neutral terminal on the connector. This is a crucial step, as a wrong connection can lead to improper functioning of appliances or electrical hazards. Always make sure the neutral wire is tightly secured under the terminal screw.
Next, connect the hot wires (usually black and red) to the two hot terminals. Each of these wires carries a live current from the power source to the device. It is important to check that the hot terminals are properly labeled and that each wire is connected to its respective terminal. A loose connection here can lead to sparks or potential fire hazards.
For the ground wire, connect it to the ground terminal. The ground wire is usually green or bare, and it is crucial for the safety of the installation. Ensure the connection is firm and the wire is tightly twisted around the terminal screw to prevent any disconnections or loose ends.
Before securing the connections, double-check that the wires are stripped to the correct length, exposing enough metal for a secure connection. Too much exposed wire can cause short circuits, while too little might prevent a strong connection.
Once all wires are connected, secure the terminal screws tightly to prevent any movement or looseness. Ensure that there are no exposed wires that could cause a short or shock. Insulating any exposed parts of the wires with electrical tape may add extra protection, especially for the ground wire.
After confirming all connections are correct, you can test the setup by plugging in an appliance or device. If the device operates correctly and safely, the wiring was successful. If there are any issues, double-check each wire for correct placement and tightness.
Lastly, if you’re not familiar with the process or lack the necessary experience, consider hiring a licensed electrician. Incorrect wiring can cause significant damage, increase the risk of fire, or result in electrocution. Ensuring the installation is safe is more important than completing it quickly.
How to Identify the Terminals on a 220V 4 Prong Plug

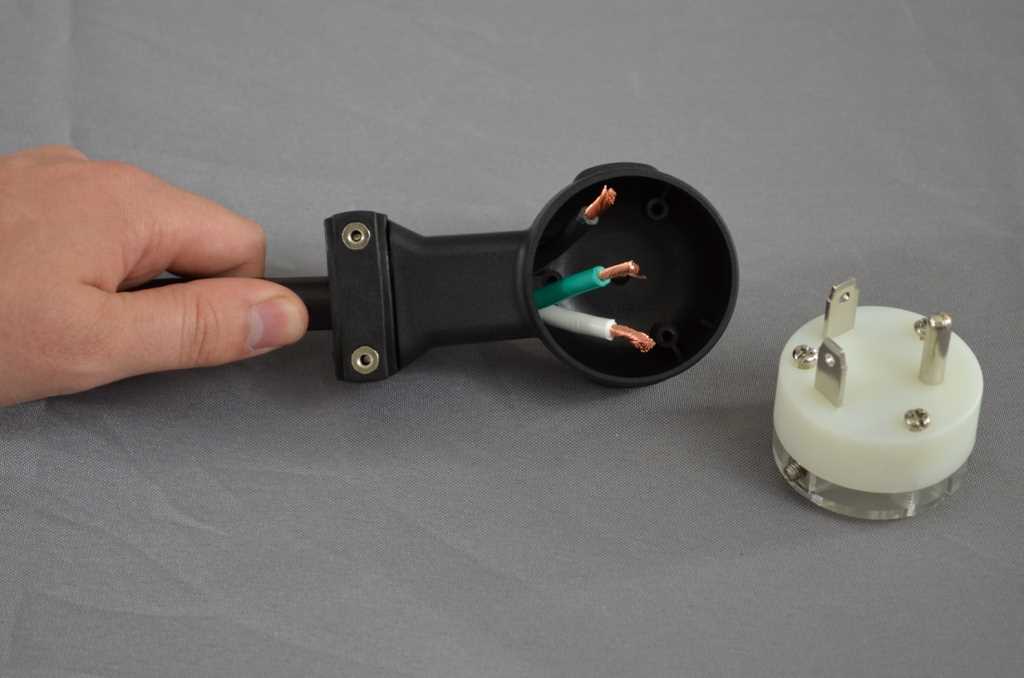

Begin by inspecting the connector for its four distinct terminals. One terminal is typically labeled for the neutral wire, usually marked with a silver or light-colored screw. The hot terminals, often colored in brass or gold, are for the two live wires, and they should be securely connected to the respective wires carrying current. The fourth terminal is the ground connection, often a green or bare wire, attached to the green screw. This connection ensures safety by preventing electrical shocks.
When identifying the terminals, ensure that the wire placement corresponds with the terminal color coding. The neutral wire should always go to the neutral terminal, while the live wires (usually black and red) must be connected to the hot terminals. The ground wire, which is key for safety, must be connected firmly to the ground terminal. Double-check the tightness of each screw to avoid any loose connections that could lead to electrical hazards.
