To build a high-power heating system, start by selecting the right components. Use a high-frequency oscillator to generate the necessary alternating current (AC) signal. The next step is to connect the primary components: a power source, an inverter, and a resonant coil that generates the magnetic field. These components work together to produce the required heat for industrial or laboratory applications.
Ensure that your power source matches the voltage and current requirements of your design. A typical setup involves converting AC into high-frequency alternating current, which is essential for efficient heating. After selecting your power supply, connect the inverter circuit to produce the high-frequency signal. This frequency is key to inducing the heat in the metal object placed within the coil.
The coil itself is a vital part of the system. Make sure to use a copper wire of sufficient gauge to handle the current without overheating. The coil should be designed to match the power output and provide uniform heat distribution. Once everything is connected, test the system by gradually powering up, ensuring that the components work in harmony to reach the desired heating temperature.

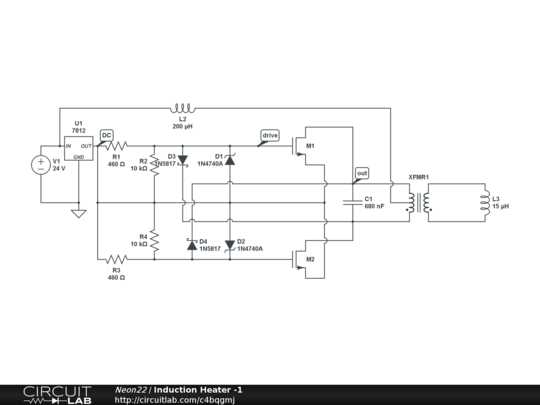

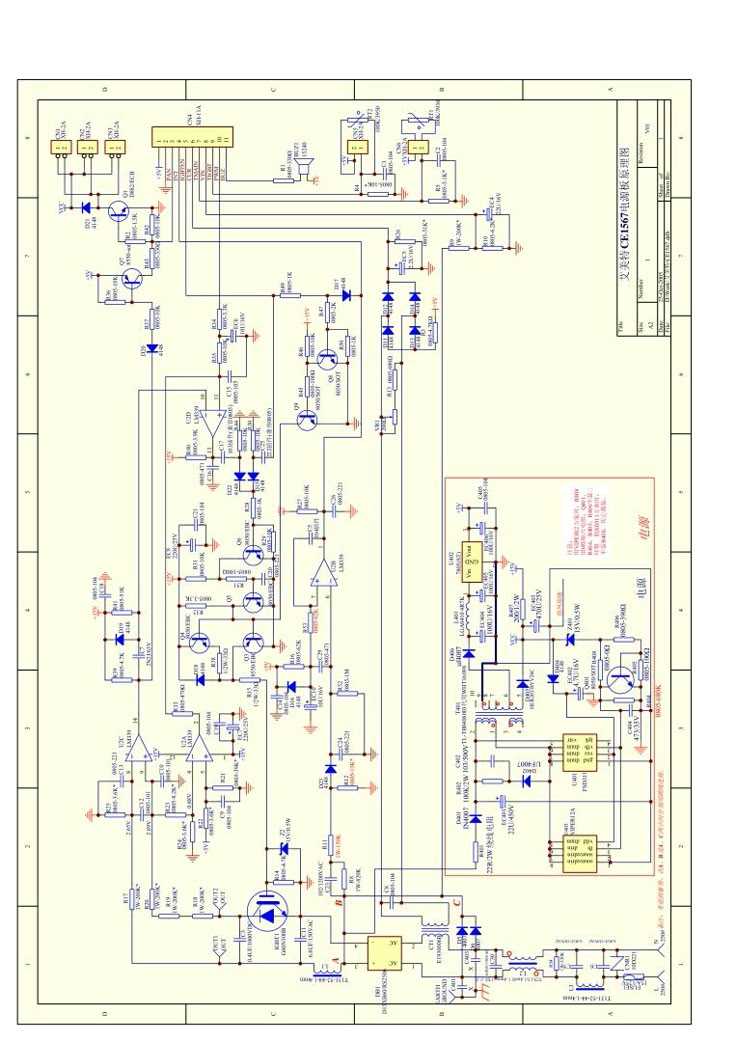

2000W Induction Heater Circuit Diagram
Start by selecting a suitable power supply capable of delivering the required voltage and current for your heating system. A reliable power source is crucial, as it ensures stable operation throughout the process. A 220V or 240V AC input is commonly used, with the conversion to high-frequency alternating current happening through an inverter circuit. Ensure that the inverter has a stable output frequency, as this will affect the heating efficiency and performance.
The next critical component is the resonant coil, which will generate the magnetic field needed for heating. The coil should be made of high-quality copper wire to withstand the high currents without degrading. Copper has excellent conductivity and can efficiently transfer energy to the material being heated. The number of turns in the coil directly impacts the efficiency of the heating process; more turns provide a stronger magnetic field and better heat generation.
Choosing the Right Components
For the inverter stage, choose a high-frequency oscillator that can generate a stable and adjustable frequency. Typically, frequencies in the range of 20 kHz to 100 kHz are used for such systems. A class D amplifier can be used to drive the resonant coil, providing the necessary power at high frequencies. Pay attention to the cooling requirements of the inverter and coil, as they can generate significant heat during operation. Use proper heat sinks or fans to ensure the components don’t overheat.
The connection between the inverter and the resonant coil must be carefully designed to avoid excessive losses. Use short, thick wires for the high-frequency connections to minimize resistance and power losses. The placement of the coil should be as close to the material being heated as possible, but without direct contact, to ensure efficient energy transfer through the electromagnetic field.
Make sure to include protection components in your design. A fuse or circuit breaker can help prevent damage in case of a fault. Also, consider adding a temperature sensor or thermal cut-off switch to monitor the system’s heat output and prevent overheating. This will increase the safety and longevity of the system, preventing damage to components under excessive heat conditions.
Testing and Calibration
Once the system is assembled, begin testing it with a low load to verify proper operation. Gradually increase the load while monitoring the power consumption and temperature of key components, such as the coil and inverter. If any components become excessively hot, adjust the cooling system or check for faulty connections. It’s essential to ensure that the heating element reaches the desired temperature efficiently without causing damage to the components.
During the testing phase, check for any electromagnetic interference (EMI) issues. High-frequency signals can affect nearby electronic equipment, so it’s important to shield your components appropriately. Use grounded metal enclosures or ferrite cores to reduce EMI and ensure the system operates safely in an industrial environment.
After thorough testing and calibration, the system should be ready for full-scale operation. Regular maintenance, including checking the connections and replacing any worn-out components, will ensure the continued performance of the heating system. By carefully selecting and connecting the right components, you can build a reliable high-power heating system for various applications such as metal hardening, brazing, or material processing.
