To install this type of control device, first identify the two terminals. Typically, one terminal connects to the power source, while the other links to the load, completing the circuit when pressed. Proper connection is key to ensuring the system operates smoothly without malfunction.
Start by stripping the ends of each wire carefully. Be sure not to expose too much metal, as this can lead to a short circuit. Once the wires are prepared, connect one to the power source terminal and the other to the load terminal. Tighten the connections securely to prevent any accidental disconnections during use.
After making the connections, test the system to verify the functionality. Ensure that pressing the device completes the circuit and powers the load. If it doesn’t respond as expected, double-check the wiring for any loose connections or incorrect placements of the wires.

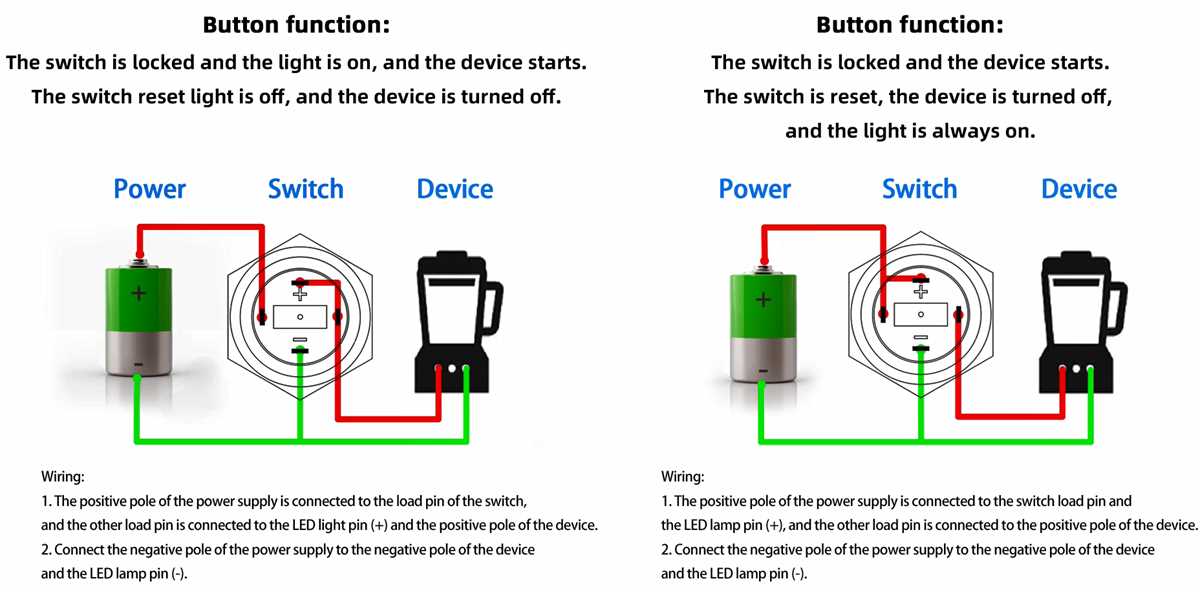

2 Pin Push Button Switch Wiring Guide
Start by identifying the two terminals on the control device. One terminal will connect to the power source, while the other connects to the load. This is a basic circuit setup that allows the device to either open or close the electrical circuit when activated.
Next, strip the insulation from the wire ends, ensuring you leave just enough exposed to make a secure connection. Overexposing the wire can cause short circuits, while under-exposing may result in poor conductivity.
Connect the first wire to the terminal that receives power. The second wire should be attached to the load side. Tighten each connection securely to prevent any issues with intermittent contact, which could disrupt the operation of the circuit.
Once all connections are made, perform a test. Press the control to check if the load is powered on or off as expected. If the circuit doesn’t behave as intended, double-check the wire placement and ensure both connections are tight and correctly configured.
If you notice any malfunction during testing, it could be due to loose wiring or a poor connection. Recheck the terminals and ensure they are firmly attached, eliminating any risk of the wires slipping out or losing contact during operation.
Understanding the Terminals and Pin Configuration
Each device typically has two distinct terminals. One is connected to the power source, while the other links to the load or the device you are controlling. These terminals are critical for establishing the proper electrical flow when the control mechanism is activated.
The terminal connected to the power supply is often marked with a specific label like “R” for power. The other terminal is used to complete the circuit when engaged, allowing the flow of electricity to the load. Make sure to correctly identify these terminals before proceeding with the setup.
- The first terminal is used to connect to the power source (often labeled “R”).
- The second terminal connects to the load or the device being controlled.
Ensure the connections are secure to prevent interruptions in the electrical circuit. Loose terminals or wires can cause poor performance or even failure of the system. Properly tighten the terminal screws or connectors to create a firm, stable connection.
During installation, be cautious not to confuse the terminals, as improper wiring can cause malfunction or safety hazards. Always double-check the terminal markings and ensure each wire is connected to its corresponding terminal before powering the system on.
If any malfunction occurs, recheck the terminal connections for any loose or improperly placed wires. A good practice is to test the connection with a multimeter to ensure the current is flowing correctly through both terminals.
