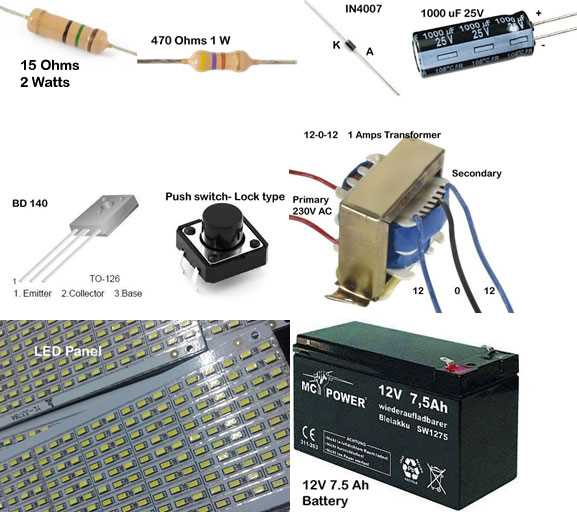

For uninterrupted visibility during power outages, connect a rechargeable cell directly to a high-efficiency LED panel using a low-resistance switch. Ensure the battery provides at least 7 Ah to maintain continuous operation for several hours. Use a fast-acting fuse rated slightly above the maximum current draw to protect both the panel and the storage unit.
Optimize charging and discharging cycles by incorporating a diode between the power source and the storage unit. This prevents reverse current flow, preserving battery life and preventing unwanted drain. Select a Schottky diode for minimal voltage drop, ensuring that the LED panel receives sufficient voltage for stable illumination.
For compact installations, use a small PCB to mount the control transistor and resistor network. A PNP transistor with a gain of at least 100 ensures smooth switching when the auxiliary switch is activated. Pair it with a 470-ohm base resistor to limit current without affecting responsiveness.
Enhance portability by choosing lightweight lithium-ion cells instead of lead-acid options. They provide higher energy density and reduce the overall weight of the assembly. Include a temperature sensor near the cells to prevent overheating during extended operation.
For extended runtime, wire multiple panels in parallel with current-limiting resistors. This approach balances the load and prevents overcurrent in any single unit. Label each connection clearly to simplify maintenance and reduce the risk of miswiring during upgrades.
12V Backup Illumination Wiring Setup
Use a sealed lead-acid accumulator rated for 7–10 Ah to guarantee continuous operation during power outages. Connect a Schottky diode in series to prevent reverse current, and ensure the voltage regulator maintains a steady 12V output to avoid overcharging the battery.
For the switching module, a single-pole double-throw relay works best. Wire the coil to a mains-sensing adapter, so the lamps activate automatically if the primary supply fails. Add a 1kΩ resistor parallel to the coil for noise suppression and longer relay lifespan.
Choose LED bulbs with a maximum of 5W each. Arrange them in parallel to maintain consistent brightness. Include a 470µF capacitor near the terminals to reduce flicker during sudden voltage drops.
- Use short, thick wires to minimize voltage loss
- Mount components on a perforated board for airflow
- Test with a dummy load before final installation
For charging, use a linear 12V adapter with a built-in thermal cutoff. Monitor battery temperature; it should not exceed 40°C under continuous charging. Consider an optional indicator LED connected via a 330Ω resistor to show active standby mode.
Choosing the Right Battery and LED for Backup Illumination
Select a sealed lead-acid battery with at least 7 Ah capacity for prolonged operation in small fixtures. Lithium alternatives with 6–8 Ah offer lighter weight and longer cycle life, reducing the need for frequent replacements.
For lamps, high-efficiency diodes rated at 3–5 watts per unit produce strong beams while maintaining low energy consumption. Prefer chips with a color temperature between 5000K and 6000K for crisp visibility.
Match the battery output with the diode forward voltage to avoid overheating or dimming. A 6–7 cell lithium pack provides stable voltage for multiple high-brightness modules in parallel or series configuration.
Include a current-limiting resistor or constant current driver to protect the LEDs. Resistor values around 2–5 ohms suit single 3 W diodes, while integrated drivers handle arrays of 10–20 chips more safely.
Consider enclosure space: compact housings favor lithium packs due to higher energy density, while larger boxes can accommodate lead-acid units with integrated thermal management for extended runtime.
Check discharge ratings carefully; batteries labeled for deep-cycle use maintain voltage under prolonged load. Pairing these with high-lumen diodes ensures the system remains bright for hours without rapid degradation.
