Begin by ensuring a reliable power connection for your sound system. Choose a 12-volt source that can handle the load without overloading the circuit. Use a heavy-duty fuse and relay to protect your components from power surges, which could cause short circuits or damage to your equipment.
Next, connect the signal switch to control the operation of the system. This can be a simple on/off switch or a button that activates the system when pressed. Be sure the switch is rated for the power required to activate the system and can handle the current flow.
Check the connections for any signs of improper grounding or loose wires. Poor grounding can lead to weak sound output or malfunctioning components. Use quality wire and secure all connections to prevent future issues during use. Running a separate ground wire to the chassis or the vehicle’s frame is recommended to ensure stability and safety.
Connecting Your 12 Volt Sound System
First, choose an appropriate power source that delivers the required 12V DC. Ensure the source can provide enough current for the system to function properly. A dedicated fuse block should be used to prevent damage from electrical surges, as a 12V system can draw significant current when activated. A 30A fuse is typically recommended to protect the wiring and components.
Powering the System Safely
The next step is to connect the positive terminal of the power source to the system’s input. This is typically done using a heavy-duty wire rated for the current your setup will draw. Make sure to use secure, insulated connectors that prevent accidental shorts. Attach a relay to handle the large current needed to trigger the system, ensuring it’s connected to the battery for a stable power supply.
Once the power is properly routed, you need to connect the switch that will control the system. The switch must be able to handle the amperage required by the system. A standard toggle switch works, but for added durability, a push-button switch or a horn switch designed to handle the load is recommended. Wire the switch in such a way that it only completes the circuit when pressed, activating the system.
Grounding the System
Proper grounding is critical for the system to work reliably. Use a grounding wire to connect the system to the vehicle’s metal frame or a dedicated ground point. This will provide a stable return path for the electrical current, preventing erratic behavior or malfunction. A poor or loose ground connection can cause weak operation or even prevent the system from activating altogether.
Once all connections are in place, double-check the wiring to ensure there are no exposed wires or loose connections that could cause a short. Test the system to verify that the switch activates the system properly and that the sound is at the expected level. If issues arise, recheck the relay connections and power supply, as these are often the source of problems.
How to Connect a 12 Volt Sound System to a Power Source
Begin by identifying a suitable power source. A 12V DC battery is the most common choice for powering such systems, but ensure the battery can handle the current needed by your setup. You’ll need to verify the amperage of the system components to avoid overloading the power source. Typically, a deep-cycle battery works best for systems with high current demands.
Choosing the Right Gauge Wire
Select the appropriate wire gauge to carry the current safely. For most 12V systems, a 12-14 gauge wire is sufficient. Heavier systems may require a thicker gauge to avoid overheating. Use wire that is insulated and rated for automotive or industrial applications to ensure durability and safe operation.
Next, connect the positive terminal of the battery to the power input of the system. It’s crucial to use a fuse near the battery to protect the system from power surges. Typically, a 30A fuse will provide adequate protection, but you should confirm the recommended fuse size for your specific components. This fuse should be installed on the positive wire leading to the system.

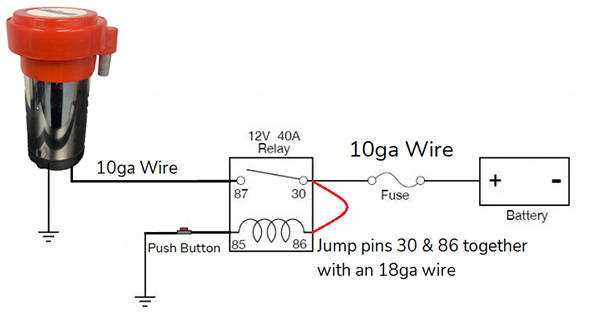

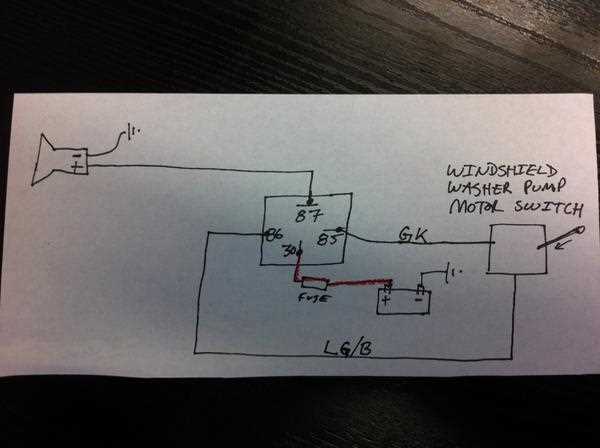

Connecting the Relay
A relay is needed to control the flow of electricity from the battery to the system. Wire the relay so that it is activated by the switch. The relay will allow a small current to control the larger current needed by the system, making it possible to use a low-amperage switch to trigger the operation. Ensure the relay is rated for at least the same amperage as the system’s current draw.
Finally, connect the negative terminal of the system to the vehicle’s ground or a dedicated grounding point. This ensures proper current return and prevents issues like weak operation or system failure. Secure all connections and check for any exposed wires that could cause shorts before testing the setup.
