Identify all terminal labels clearly before making any connections. Use a multimeter to verify voltage at the power input and confirm which lines correspond to heating, cooling, and fan operations to prevent short circuits.
Follow color coding strictly for the wires: red for power, green for the fan, yellow for cooling, and white for heating. Avoid mixing these leads, as improper placement can cause malfunction or damage to the system.
Ensure a stable mounting base for the device to prevent loose connections. Tighten screws to secure each wire and maintain firm contact with the metal terminals, which reduces the risk of arcing or intermittent operation.
Test the system incrementally after initial connections. Power on and engage heating and cooling separately, monitoring the response and ensuring that each function operates without delays or abnormal noises.
Label all wires for future reference. Clear markings simplify maintenance, upgrades, and troubleshooting, reducing the chance of accidental miswiring during adjustments or replacements.
Step-by-Step Setup for Digital Climate Control Connections
Start by identifying all terminals and their corresponding functions. Use a voltage tester to confirm which leads supply power, control heating elements, activate cooling relays, and engage fans. Misidentifying these can cause short circuits or system failures.
Follow standard color coding to avoid confusion: red for power, green for fan, yellow for cooling, and white for heating. Secure connections with screws or reliable clamps to maintain consistent contact under operational vibrations.
Ensuring Safe and Stable Installation
Mount the control unit on a stable, non-conductive surface. Avoid direct exposure to moisture or heat sources that could degrade insulation or affect internal electronics. Check that wires have enough slack to prevent strain while maintaining a neat layout.
Test each function individually by powering the system and activating heating, cooling, and fan modes separately. Monitor response time, current draw, and ensure no unusual noises occur, which could indicate misplacement of leads or faulty components.
Label every wire clearly for future maintenance. Accurate markings simplify troubleshooting and reduce the risk of misconnection during upgrades or replacements, ensuring long-term reliability and system safety.

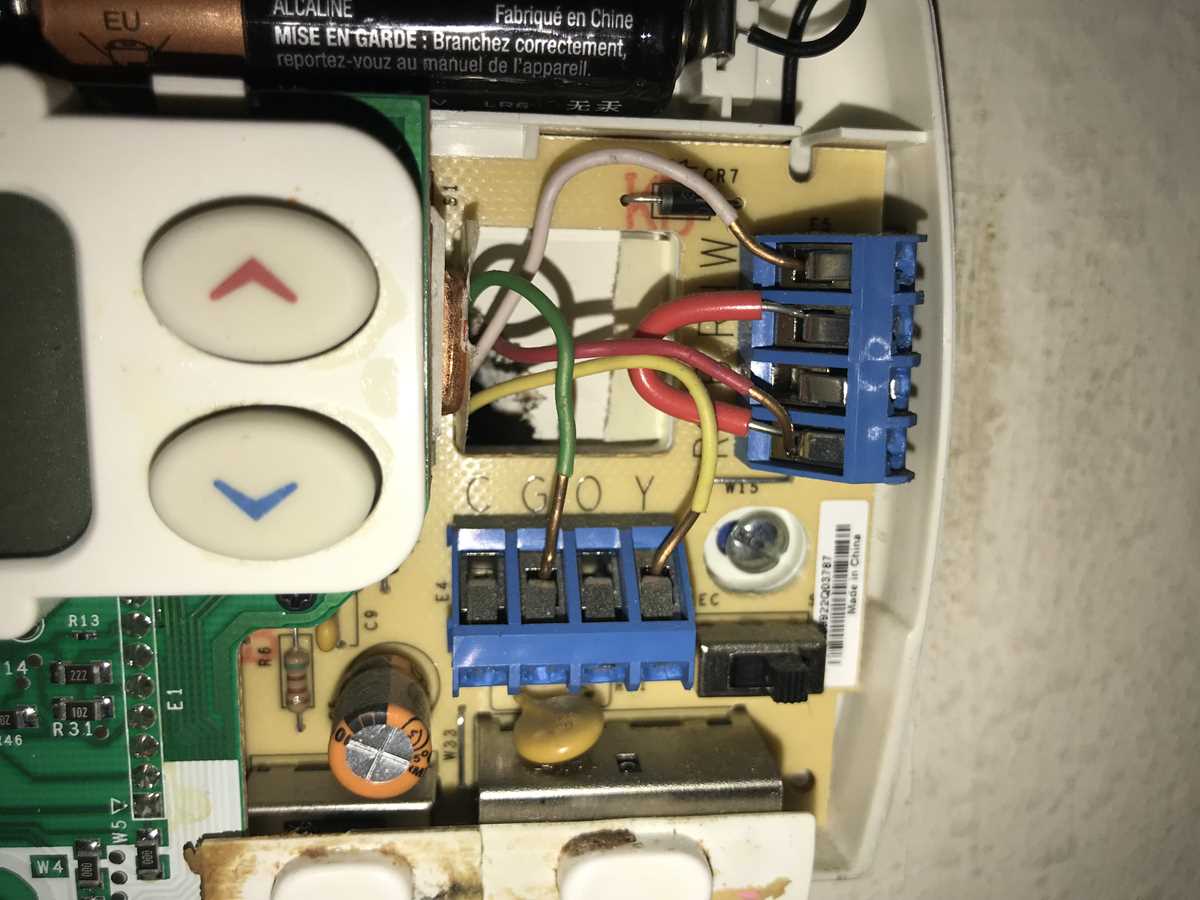

Identifying Terminals and Wire Colors for Accurate Connections
Confirm each terminal’s function before attaching leads. Use a multimeter to check voltage presence and continuity for the following connections:
- R – power input from the heating source
- G – fan activation line
- Y – cooling relay control
- W – heating element trigger
- C – common return line for continuous power
Verify wire colors match standard codes to prevent incorrect placement. Typically, red is for power, green controls the fan, yellow manages cooling, white handles heating, and blue or black serves as the common return. Double-check with a tester before securing connections.
Practical Tips for Safe Lead Identification
- Turn off all power before handling leads to avoid electric shock.
- Use labeled clips or tape to mark each wire after confirming function.
- Inspect insulation for damage and replace frayed or worn wires.
- Keep leads separated to prevent accidental cross-contact during testing or operation.
Test each line individually after connection to ensure the correct component responds. Engage fan, heating, and cooling circuits separately and confirm proper activation before finalizing the setup.
