To control a light from multiple locations, use a specific arrangement of electrical components that allows you to toggle the light on or off from more than two places. This setup requires careful understanding of the connections and proper installation of the components.
Start by installing two 3-position devices at the ends of the setup, allowing control at each location. In the middle, place an additional device that manages the electrical flow between the two ends, completing the circuit and making the system functional.
Make sure the connections are correct, especially between the terminals of the devices, to avoid short circuits or incorrect operation. It’s critical that the wiring is done in the right sequence to ensure smooth functionality and safety.

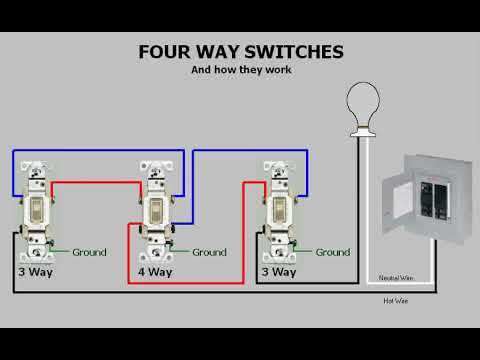

Wiring Diagram of a 4 Way Switch
To control a light from three or more locations, you’ll need to connect the components in a specific order. Start by ensuring you have three devices: two 3-position controllers and one intermediate device. The middle device serves as a relay to manage the current flow between the two end controllers.
The first step is connecting the power source to one of the end devices. The common terminal on this device is connected directly to the incoming live wire. The other terminals on the device will be linked to the corresponding terminals of the intermediate device.
Connecting the Middle Device
The middle device acts as a bridge between the two 3-position units. To achieve this, connect the two travelers from the first device to the traveler terminals on the middle device. These are the wires that transfer the current when toggling the controllers. Ensure these wires are properly insulated to prevent shorts.
Final End Device Connection
The last device completes the circuit by providing the output to the light fixture. Connect the common terminal of the final device to the load (e.g., the light bulb). Similarly, link the traveler terminals from the middle device to the corresponding terminals on the final controller.
- Make sure each terminal is securely tightened to avoid loose connections.
- Use electrical tape or proper insulation on exposed wire ends to prevent accidents.
- Double-check that the grounding wire is connected to each device as required for safety.
Finally, test the entire system by toggling all the controllers in various combinations. The light should turn on or off based on the positions of the devices. If the light doesn’t work as expected, recheck all connections for proper contact and correctness in order.
How to Wire a 4 Way Switch with Two 3-Way Switches
To set up a system with multiple control points, start by installing two 3-position devices at each end of the layout. These will act as the starting and ending controllers for your setup. Ensure the first device is connected to the power source’s live wire and securely attached to the ground.
Connecting the Middle Device
The middle unit, also known as the intermediate device, must be placed between the two 3-position controllers. Connect the traveler terminals from the first device to the corresponding terminals on the intermediate device. These connections handle the current flow, allowing the light to be controlled from different locations.
Finishing the Setup
The final step is to link the last controller to the light fixture. The common terminal of the final unit should be connected to the output, typically the light bulb. Ensure the traveler terminals from the middle device are connected correctly to the last controller to maintain the flow of current when toggling the devices.
Before powering on, double-check all connections for accuracy, ensuring that the traveler wires are properly insulated and secured. Test the setup by toggling between the controllers to confirm the light operates as expected from all positions.
