Ensure the main power lines are disconnected before making any connections. This prevents electrical shocks and protects sensitive components during installation.
Mount the control unit on a stable surface near the generator and load panel to minimize cable length and reduce voltage drop. Secure it with corrosion-resistant brackets for long-term reliability.
Route input and output conductors carefully through separate conduits or channels to prevent interference. Label each line clearly to identify utility power, generator output, and load circuits.
Verify all terminal connections using a multimeter before energizing the system. Confirm proper voltage, continuity, and polarity to ensure safe operation and prevent damage to connected devices.

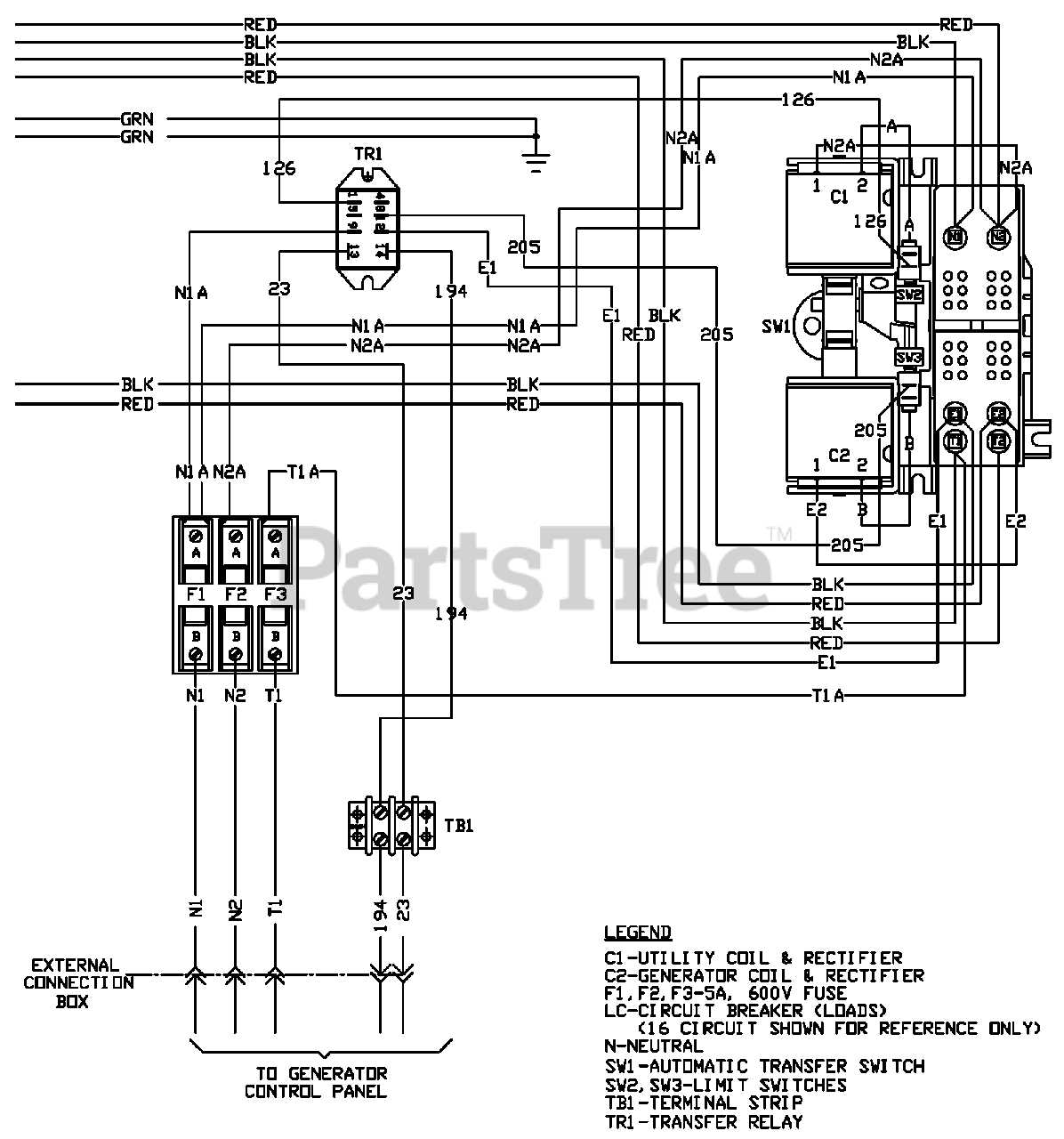

Connecting a Generator Control System
Attach the main power feed to the input terminals using cables rated for the total amperage of connected loads. Include a main breaker or fuse to isolate the system during maintenance and prevent overcurrent damage.
Run output conductors to the load panel with secure terminals and avoid sharp bends or contact with metal edges. Label each line for quick identification and test voltage at each endpoint before full operation to confirm proper connections.
Connecting Main Power Inputs and Load Circuits
Secure the incoming utility lines to the designated terminals using cables rated for the full amperage of the system. Install a dedicated breaker or fuse to isolate the source during service and prevent overload damage.
Route outgoing lines to each load with proper insulation and strain relief to maintain contact integrity and avoid accidental shorts. Verify voltage at each endpoint and label connections for quick identification during maintenance or troubleshooting.
