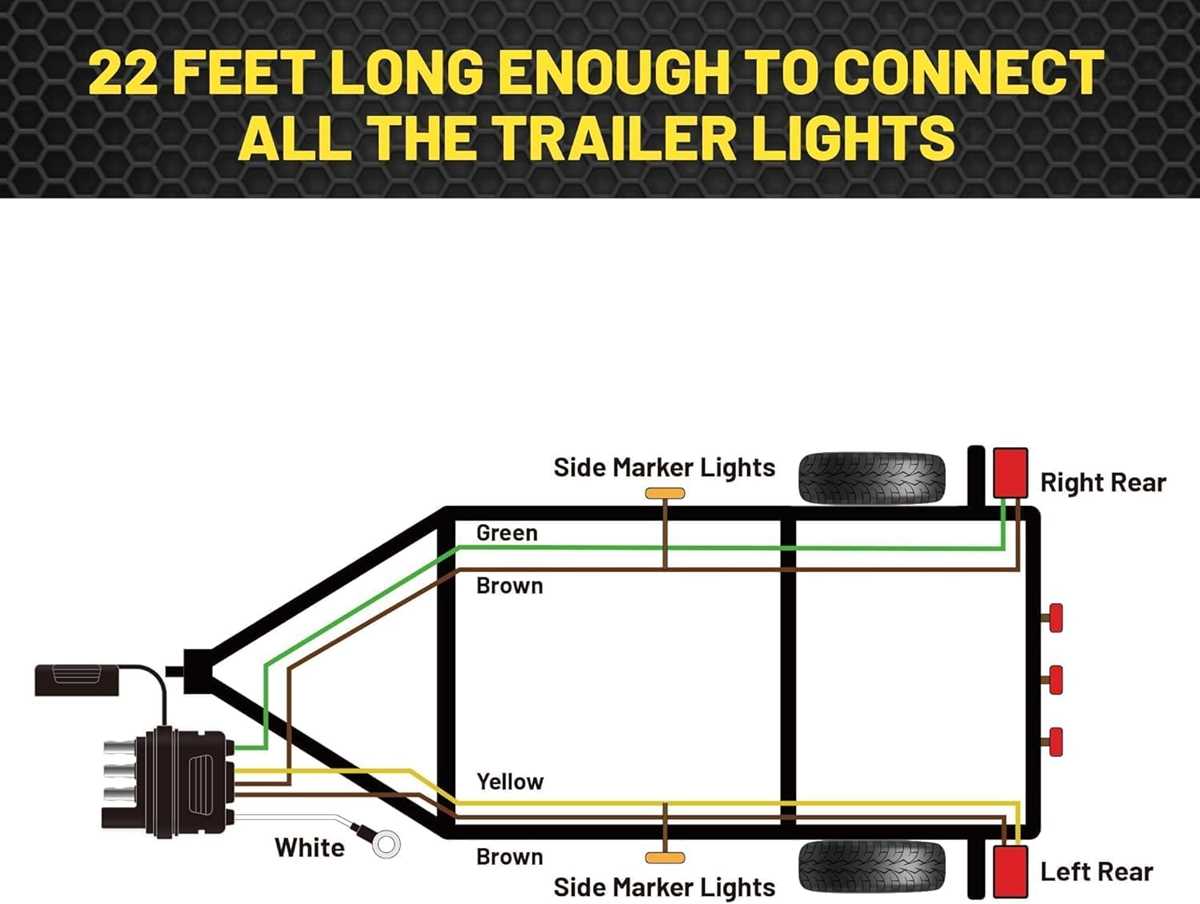

Match each wire by color and function to prevent short circuits and ensure brake, turn, and running signals operate correctly. Standard colors include brown for running, yellow for left turn, green for right turn, and white for ground.
Use a reliable connector block or crimp terminals to maintain consistent electrical contact and avoid loose connections that can cause intermittent operation on bumpy roads.
Route wires along the frame with protective conduit to shield them from abrasion and moisture. Keep signal conductors separate from power and brake lines to reduce interference and voltage drop.
Check grounding points carefully to prevent dim or flickering lamps. A clean metal contact with a secure screw or bolt ensures consistent return path for the current.
Test each function individually using a multimeter or auxiliary power source before final mounting. Verify that running, braking, and turn indicators illuminate with correct intensity and timing.
Label wires at both ends to simplify future maintenance and avoid confusion when replacing connectors or upgrading the harness.

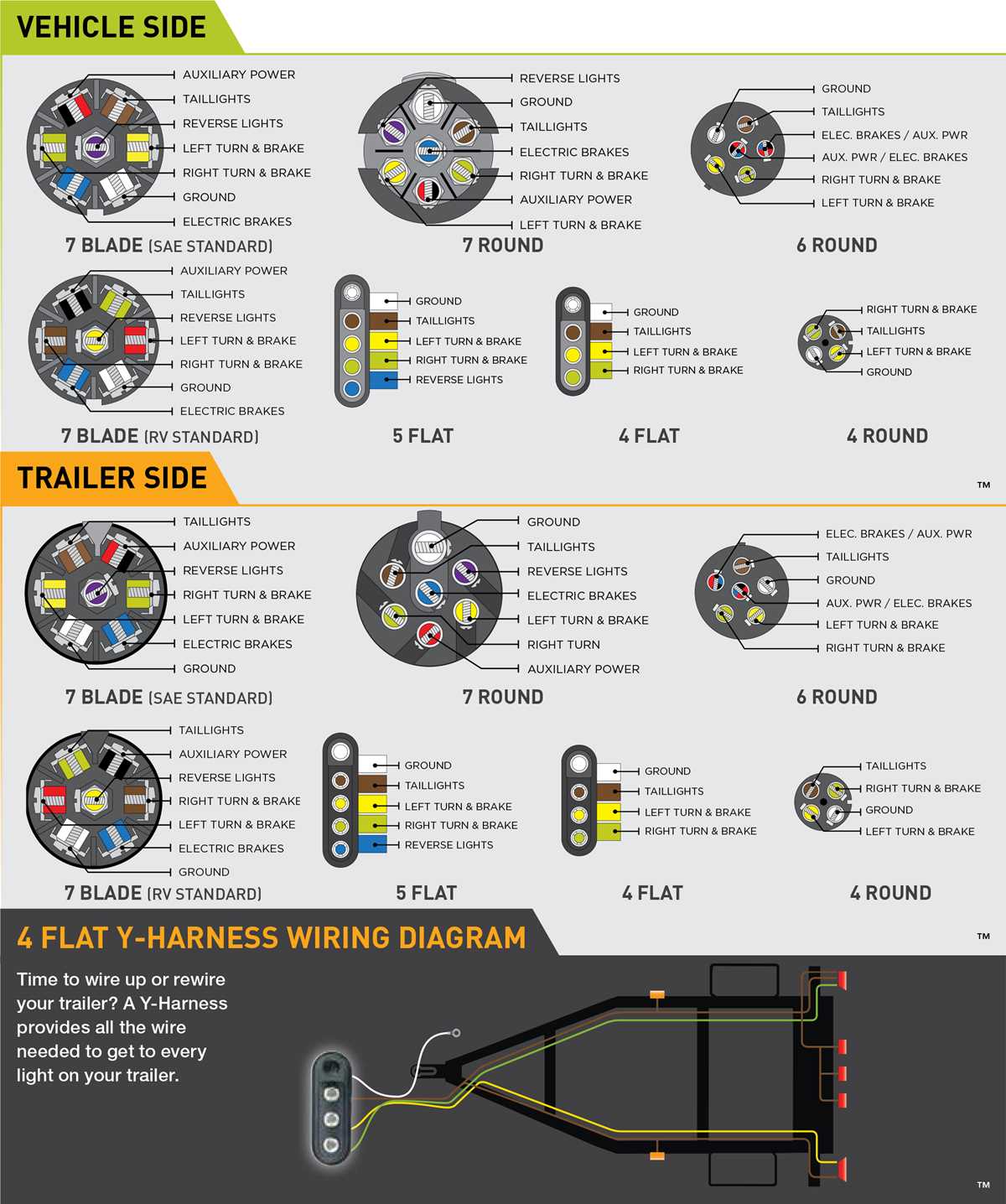

Connecting Rear Signal Assemblies to Vehicle Harness
Match each conductor by color and function to prevent misfires and ensure braking, turning, and running operations work as intended. Typical standards include brown for running, yellow for left turn, green for right turn, and white for ground.
Use crimp terminals or weatherproof connectors to maintain stable contact and resist corrosion. Loose or exposed connections can lead to intermittent failures during wet or dusty conditions.
Route cables along the frame using protective loom or conduit. Keep them away from sharp edges, heat sources, and moving parts to prevent insulation damage and short circuits.
Ensure solid grounding by securing white or black wires to clean metal points on the chassis. Oxidized or loose connections can cause dim illumination or flickering during operation.
Check continuity before final assembly with a multimeter. Verify that each signal path conducts current properly and that brake and indicator functions activate without delay.
Testing Individual Functions
Power each signal separately to confirm correct brightness and timing. Use temporary power sources if needed, observing that left and right indicators blink accurately while the running signal remains steady.
Label all conductors at both ends to simplify future maintenance. Proper labeling reduces errors when reconnecting or replacing connectors in the vehicle or towed unit.
Securing and Protecting Connections
Fasten harnesses with cable ties or clamps to prevent movement under vibration. Shield sections near moving parts with split tubing or spiral wrap, ensuring reliable operation and extended lifespan of the assembly.
Identifying Rear Signal Conductors and Color Codes

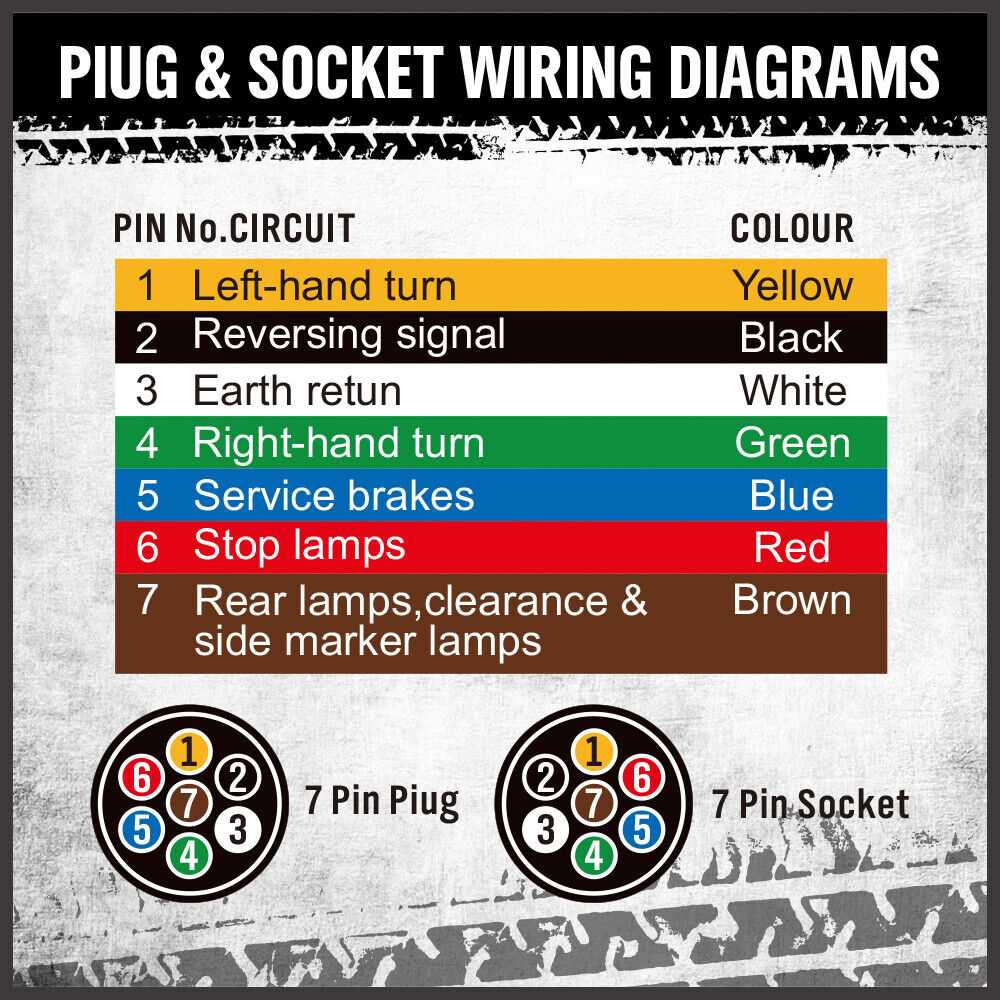

Match each conductor to its function using standard color conventions. Brown usually carries running power, yellow serves left indicators, green handles right indicators, and white provides chassis grounding.
Inspect insulation and markings on each wire to confirm function. Faded or damaged colors can lead to incorrect connections and potential short circuits during operation.
Use a multimeter to verify continuity between the vehicle harness and connector pins. This ensures that each conductor reaches the intended lamp without breaks or high resistance.
Separate signal paths physically to reduce cross-talk. Keep indicator, brake, and running conductors apart within the harness, especially near metal brackets or sharp bends.
Document each connection with labels or color-coded tape at both ends. This helps identify functions quickly during maintenance or when extending the harness to additional lamps.
Check polarity where applicable on LED assemblies. Incorrect polarity can prevent illumination or damage the bulb, so match positive and negative leads to the vehicle’s output.
Confirm standard voltage levels at each conductor using a test light or meter. Running circuits typically see 12 V, while brake and indicator lines may spike to 14 V under load; verify consistent readings.
Test lamps individually after identification to ensure correct illumination. Activate running, brake, and turn functions separately and observe that each signal responds without interference from other lines.
