Connect the hot conductor directly to the brass terminal of your wall-mounted actuator. Ensure the neutral line bypasses the switch entirely, linking straight to the fixture’s neutral terminal. This configuration prevents stray currents and allows the fixture to operate without interference.
Secure all grounding wires to the green screw on the toggle assembly and to the metal box if applicable. Proper grounding minimizes the risk of electric shock and protects the circuit from short circuits.
Use color-coded cables to differentiate between live and neutral conductors. Black or red should carry the voltage, while white remains the return path. Labeling each wire at connection points simplifies future troubleshooting or upgrades.
Always tighten terminal screws firmly but avoid over-torquing to prevent damaging the copper strands. A snug connection ensures consistent illumination and reduces the likelihood of flickering or intermittent operation.
Test the circuit before closing the wall plate. Energize the breaker, actuate the switch, and confirm the fixture responds correctly. Immediate verification saves time and prevents hidden faults that could cause premature component failure.
Electrical Setup for Single-Control Illumination
Connect the incoming hot conductor directly to the brass terminal on the toggle device. This ensures uninterrupted current flow to the fixture when engaged.
Use a black or red cable to carry electricity from the toggle to the ceiling receptacle. Maintain a secure connection with wire nuts rated for the wire gauge.
The neutral conductor should bypass the toggle entirely and link directly to the lamp’s neutral terminal. This preserves proper circuit balance and prevents malfunction.
Grounding is mandatory: attach the bare copper or green wire to the toggle’s grounding screw, then extend it to the fixture box metal frame. This reduces shock hazards.
When routing wires inside the wall, avoid sharp bends. A 6-inch minimum radius prevents insulation damage and ensures longevity of the installation.
- Verify cable gauge matches the amperage rating of the circuit breaker.
- Secure all connections with approved electrical tape or wire nuts.
- Confirm the toggle mounting plate is flush with the wall surface to prevent strain on terminals.
Label the toggle in multi-gang setups to prevent confusion. For example, “Ceiling Lamp” or “Hallway Fixture” simplifies future maintenance.
After completing connections, restore power and test the operation by flipping the device. The fixture should illuminate consistently without flickering or delayed response.

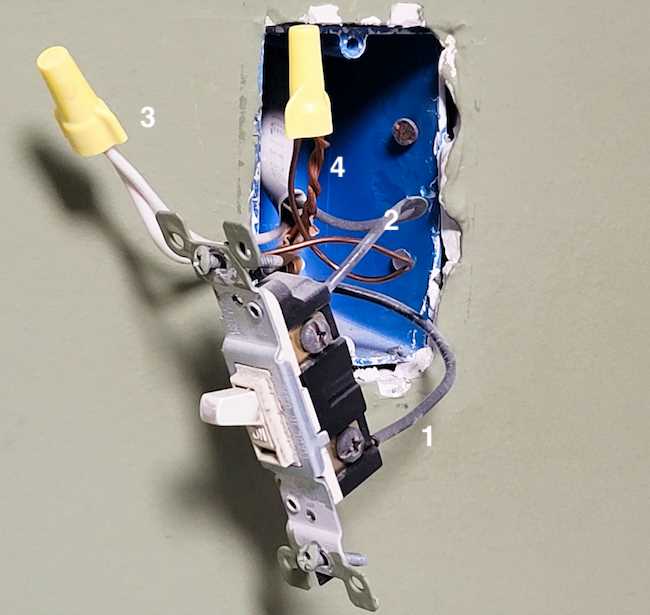

Identifying Wires and Switch Terminals
Always begin by turning off the breaker before touching any conductors. Black or red insulated cables typically carry the active current, while white wires act as neutral carriers, and bare copper or green insulated strands serve as grounding paths. Label each wire with tape if multiple lines converge in one box to prevent confusion during installation.
Examine the toggle device closely. One terminal often has a darker or brass-colored screw, which connects to the incoming live conductor. The other screw, usually silver or lighter in hue, is reserved for the outgoing conductor that leads to the fixture. A green screw indicates the ground point, which must always be connected to the metal enclosure or grounding conductor.
For configurations involving travelers, such as in multi-location circuits, mark wires according to their role: constant feed, switched feed, and return. Using a continuity tester can confirm which wire completes the circuit when the lever is engaged, reducing trial-and-error adjustments.
Twist-on connectors and terminal screws should be checked for firmness. Loose connections cause intermittent operation and heat buildup. Wrap stranded wires clockwise around the screw before tightening, ensuring a secure mechanical and electrical bond.
Color codes alone can be misleading in older installations. Measure voltage across each line before connecting to prevent miswiring. If insulation appears brittle or wires are frayed, replace them rather than attempt repairs, maintaining reliable operation and safety compliance.
