To fix or replace the heating system in your dryer, follow the electrical connections carefully. Miswiring can result in malfunction or even pose a risk of fire. Make sure to inspect the terminals and connectors closely to avoid any short circuits.
First, disconnect the power supply before beginning the repair. Remove the back panel or the front access panel, depending on the model, to locate the connection points. Mark each wire carefully before removing them so you can reattach them correctly later. Incorrect connections can cause your appliance to underperform or not heat at all.
Identify the high-voltage connections involved in the process. Pay special attention to the neutral and live wires, as they are critical for the heat generation. The ground wire should always be securely connected to ensure safety.
Understanding the Electrical Setup of Your Heating Unit
To ensure your appliance operates correctly, you must identify the various connections that control its temperature regulation. Start by checking the voltage requirements of the components involved. These are typically marked directly on the terminals for easy identification.
Key Components to Identify
There are several key components that you’ll need to focus on:
- Live Wire – This connects to the primary power source and is typically black or red.
- Neutral Wire – Often white, it completes the circuit.
- Ground Wire – Usually green, this ensures safety by preventing electrical shock.
- Thermostat and Thermal Fuse – These components help regulate temperature and shut off power in case of overheating.
Step-by-Step Assembly Process
Once you’ve identified the components, follow these steps:
- Disconnect the power supply before you start working.
- Remove any panels that cover the area where you will be working, typically found at the rear or front of the unit.
- Use a multimeter to check for continuity before proceeding with any connections to ensure the components are not damaged.
- Attach the live wire to its designated terminal, ensuring it is tightly secured.
- Connect the neutral wire in the same manner, being mindful of its position relative to the other wires.
- Finally, connect the ground wire, ensuring that it is attached to the metal chassis or grounding screw.
After all connections are secure, double-check for any exposed wires or signs of damage before reassembling the appliance. A loose or damaged connection can lead to malfunction or pose a safety risk.
If the unit still fails to heat, check the thermostat or thermal fuse, as they may be faulty. These components are critical for the proper functioning of the system and should be replaced if necessary.
Testing and Troubleshooting
Once all wires are connected, it’s time to test the system. Use a multimeter to verify that current is flowing properly to the heating coils. If the voltage readings are correct but the unit still doesn’t produce heat, you might be dealing with a faulty thermostat or fuse. These parts are relatively simple to replace and can restore full functionality to the appliance.

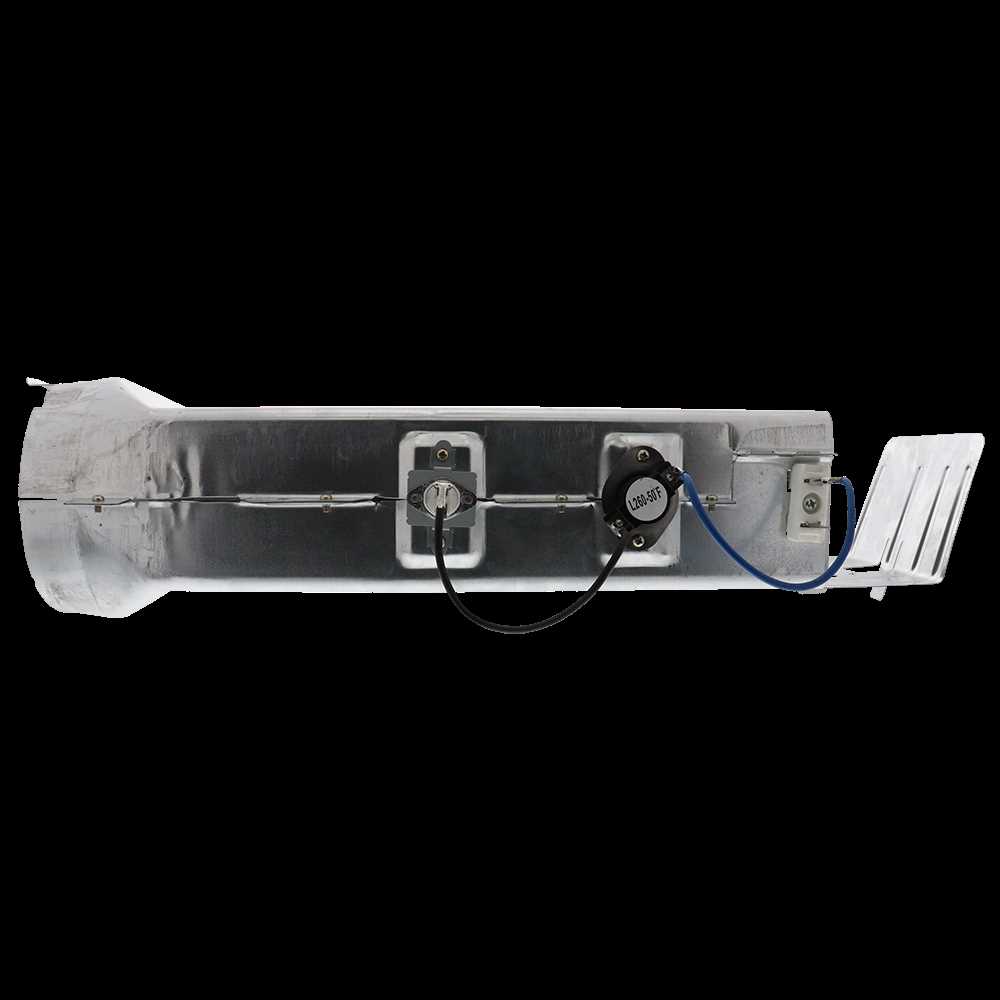

Step-by-Step Guide to Wiring Samsung Dryer Heating Element
Begin by disconnecting the appliance from the power supply to ensure safety. Remove the rear panel to access the terminals. Locate the high-voltage terminal block, which connects to the power input. Mark each wire before removing it to ensure proper reconnection.
Next, attach the live wire to the correct terminal. This is typically the black or red wire, which connects to the power source. The neutral wire, usually white, should be secured to the other terminal. Ensure that each connection is firm and free of corrosion to prevent electrical issues.
Finally, connect the ground wire, usually green, to the metal chassis or designated ground terminal. This is an important safety step to prevent electric shock. After securing all wires, use a multimeter to verify that the system is functioning properly before reassembling the unit and restoring power.
