Connect the thermostat control cable to the indoor air handler terminal board following the standard low-voltage layout: R carries 24-volt supply, C provides common return, Y activates the outdoor compressor unit, G starts the blower motor, while O or B controls the reversing valve used in a refrigerant transfer system. Accurate terminal placement prevents compressor short cycling, indoor fan faults, or reversing valve failure.
A typical residential climate system built by this manufacturer uses a 24-volt control circuit linking the wall thermostat, indoor air handler, outdoor compressor section, plus auxiliary electric heater relay. Color-coded conductors simplify installation. Red normally carries power from the transformer, yellow activates the compressor contactor, green operates the indoor blower, orange switches the reversing valve during cooling operation, while white signals auxiliary heating strips.
Inside the indoor unit cabinet, the low-voltage terminal strip distributes control signals between thermostat cable plus outdoor condensing section. The compressor contactor coil receives its signal through the Y terminal path. When the thermostat requests cooling or heating depending on valve position, the contactor closes, sending high-voltage supply to the compressor motor plus condenser fan.
Incorrect terminal placement creates immediate operational faults. If the reversing valve lead connects to the wrong terminal, the system may cool while the thermostat requests heating. Missing common return at terminal C prevents modern thermostats with digital displays from powering up. Secure screw terminals, intact insulation, plus clear identification of each conductor ensure stable control communication between indoor section, thermostat, plus outdoor compressor assembly.

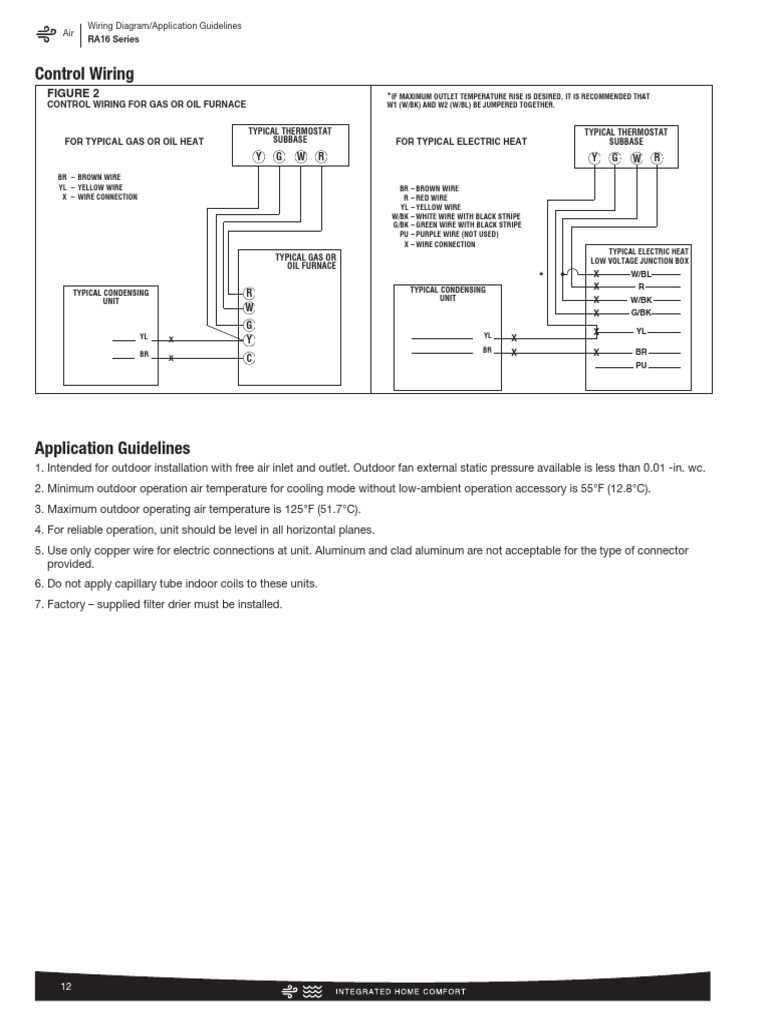

Rheem Heat Pump Wiring Diagram With Thermostat Terminals and Outdoor Unit Connections
Connect the thermostat cable to the indoor air handler control board using standard low-voltage terminals: R carries 24-volt supply from the transformer, C returns common, Y activates the outdoor compressor contactor, G runs the blower relay, while O or B operates the reversing valve. Correct terminal placement allows the indoor unit, wall thermostat, plus exterior compressor section to communicate through a stable control circuit.
The cable running between the indoor air handler cabinet plus the exterior compressor unit usually contains two conductors linked to the Y plus C terminals. When the thermostat calls for cooling or heating depending on valve orientation, 24 volts travel from R through the Y path to the contactor coil in the outdoor section. The coil closes the contactor, sending line voltage to the compressor motor plus condenser fan. If that low-voltage path breaks, the outdoor section will remain idle while the indoor blower continues operating.
Inside the outdoor cabinet, the contactor coil receives the low-voltage signal while high-voltage terminals distribute power to the compressor plus fan motor. The reversing valve solenoid connects to the O or B thermostat lead through the air handler control board. This connection determines whether the refrigerant flow produces cooling mode or space heating. A loose terminal screw or damaged conductor at this location often causes incorrect operating mode.
Trace each conductor from thermostat base to indoor board then to the outdoor cabinet. Confirm color coding, tighten screw terminals, inspect insulation near cabinet entry points, plus verify that the transformer secondary produces about 24 volts across R plus C. These checks reveal most control circuit faults in residential climate systems using this brand.
Thermostat terminal connections for Rheem heat pump systems
Connect the wall thermostat conductors to the low-voltage terminals on the air handler control board following the standard terminal layout used in residential climate systems. The red lead supplies 24-volt power from the transformer, while the common return completes the control circuit that powers modern digital thermostats.

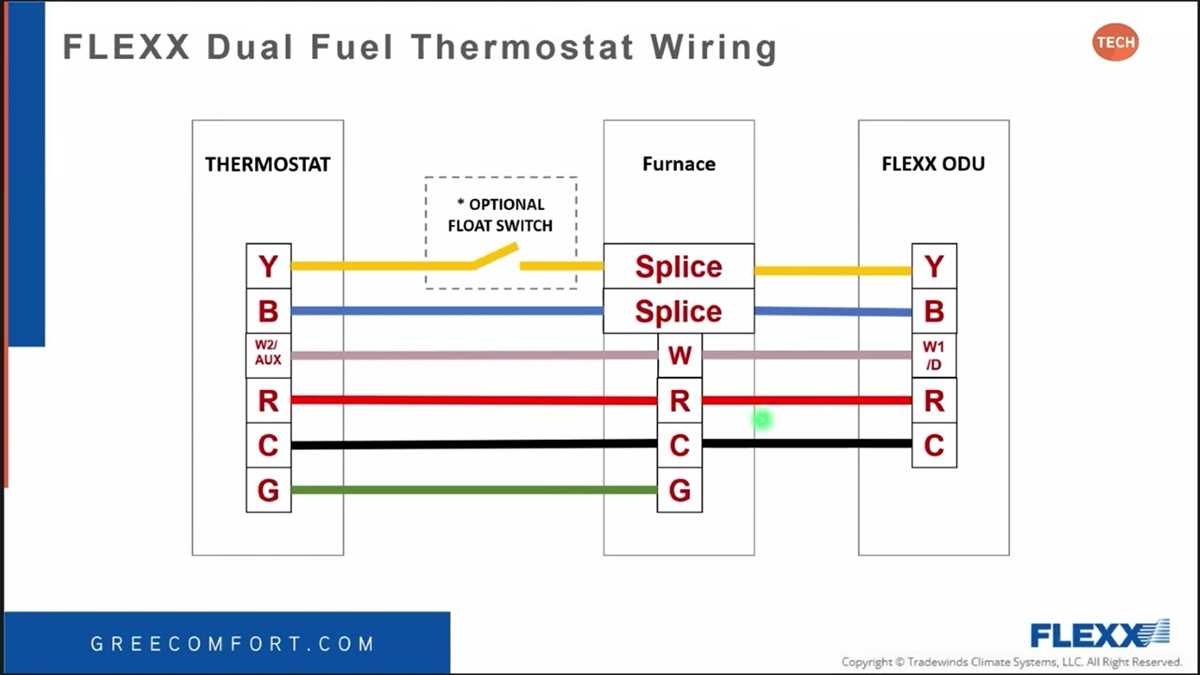

Typical terminal assignments inside this type of system include the following connections:
- R terminal – 24-volt supply from indoor transformer
- C terminal – common return path
- Y terminal – signal sent to outdoor compressor contactor
- G terminal – indoor blower relay activation
- O or B terminal – reversing valve solenoid control
- W2 or AUX terminal – auxiliary electric heater relay
Route the thermostat cable from the wall base to the indoor control board without sharp bends or insulation damage. Secure each conductor beneath the terminal screw while leaving enough slack so the cable does not pull loose during service access. A missing common conductor often causes blank thermostat displays or unstable control signals.
Verify correct terminal placement before restoring power:
- Turn off the circuit breaker feeding the air handler
- Confirm color identification on each conductor
- Tighten terminal screws on thermostat base plus indoor board
- Measure about 24 volts between R plus C using a multimeter
- Trigger cooling mode to confirm the outdoor compressor contactor engages
