First, check all connections for any visible signs of corrosion, fraying, or wear. Start with the power source–ensure the battery terminals are clean and free of rust. Use a wire brush to clean any corrosion off and tighten the terminal connections. Loose or dirty terminals can cause intermittent electrical issues or prevent the ATV from starting altogether.
Next, inspect the fuses and relays, which are integral to the functioning of various systems on your vehicle. A blown fuse or malfunctioning relay can cause loss of power to important components. Test these parts to ensure they are working properly, and replace them if needed to restore functionality.
Examine the ignition and starting system closely. Look for any signs of wear in the wires or connections that could disrupt the electrical flow. If you find any damage, it’s important to replace or repair those connections immediately to avoid further electrical issues. Ensure that all wires are properly insulated and securely connected.
Lastly, check all ground connections for proper attachment and cleanliness. Ground points often get neglected but are critical for completing the electrical circuit. Clean any rust off the grounding points and make sure the connections are tight to ensure proper operation of the vehicle’s electrical system.
Wiring Guide for Kawasaki Bayou 220 Electrical System
Start by ensuring that the battery is fully charged and properly connected. Check the negative and positive terminals for tightness and corrosion. Clean any corrosion with a wire brush to ensure optimal conductivity. A poor battery connection can lead to intermittent electrical issues or even prevent the system from starting.
Inspect the ignition system to ensure all connections are secure. The ignition switch is the heart of the electrical system, and any faulty wiring can lead to starting problems. Ensure that the wiring to the switch is intact and free of damage. If the switch is faulty, it will need to be replaced to restore functionality.
Next, examine the fuse box. A blown fuse can cause electrical components to stop working. Check the fuses one by one with a multimeter to see if any are burnt out. Replace any damaged fuses with ones of the same rating. Keep extra fuses in your toolkit as a precaution.
The starter relay should also be tested for proper functionality. If the starter is not engaging, it could be due to a faulty relay. Disconnect the relay and use a multimeter to test continuity. If there’s no continuity, replace the relay to restore starting functionality.
When dealing with lights and indicators, it’s critical to verify the wiring connections. Look for any exposed wires or wear that could cause a short. Tighten any loose connections and replace any damaged wires to avoid malfunctioning lights. The headlights, brake lights, and indicators rely heavily on proper wiring to function correctly.
Check the grounding points, especially around the engine and frame. The electrical system relies on solid grounds to complete circuits. Ensure that all ground wires are tightly connected and free from corrosion. Ground connections that are loose or corroded can cause various electrical malfunctions.

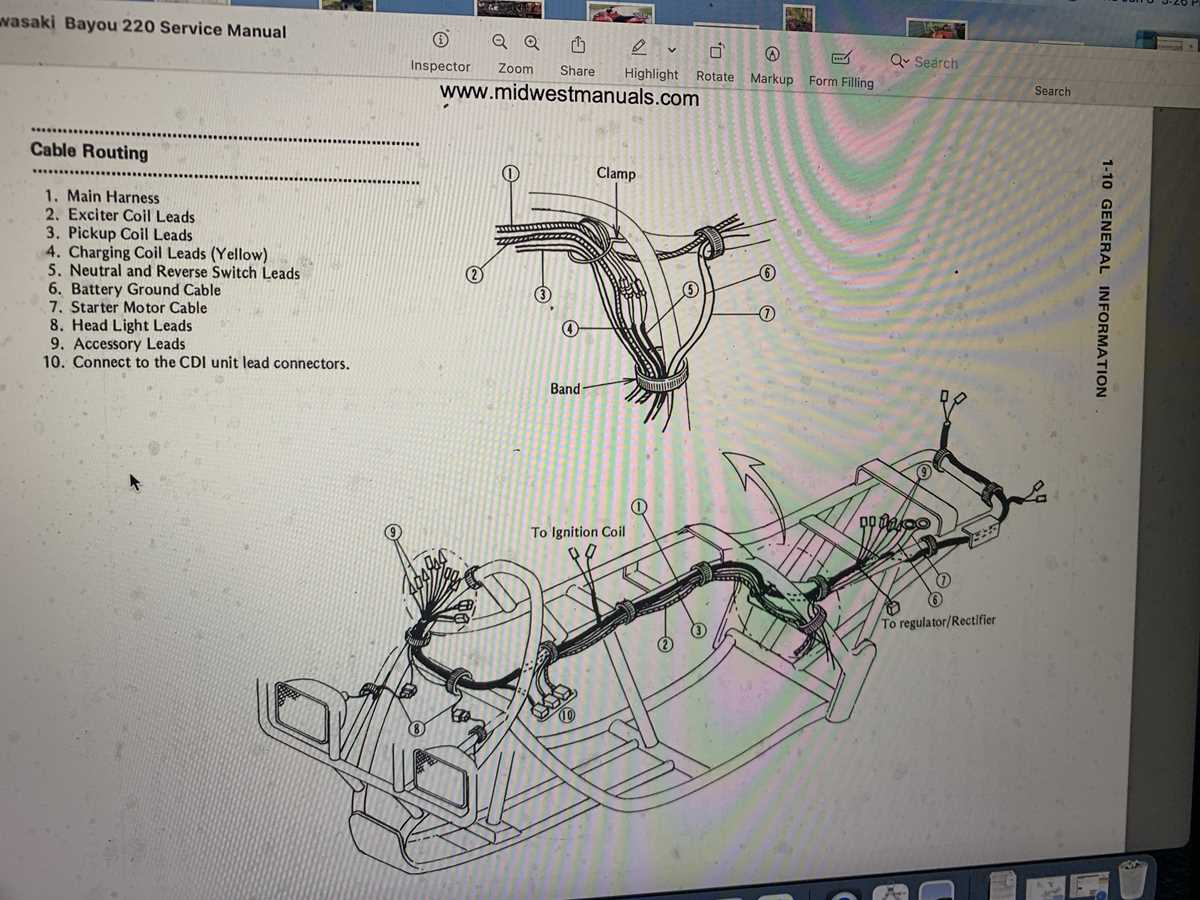

Finally, inspect the wiring harness for any signs of wear or fraying. Over time, wires can become brittle or damaged, especially near moving parts or hot components. Replace any damaged sections of the harness to prevent future electrical issues. Keep in mind that some harnesses are color-coded, which will help during the repair or replacement process.
Understanding the Key Electrical Components of Kawasaki Bayou 220
The engine’s ignition system consists of the ignition coil, spark plug, and stator, which work together to start the vehicle. The stator generates electricity when the engine is turning, supplying power to the ignition coil, which then sends the current to the spark plug. Any issues with the coil or stator can result in poor starting performance or complete failure to start, so regular inspection of these components is critical for reliable operation.
The battery plays a key role in providing the initial power to start the engine and operate various accessories. The charging system, which includes the voltage regulator and stator, ensures that the battery remains charged while the engine is running. A faulty regulator or stator can lead to battery drainage or improper charging, resulting in electrical failure. Make sure the connections to the battery are secure, and regularly test the charging system to avoid potential breakdowns.
