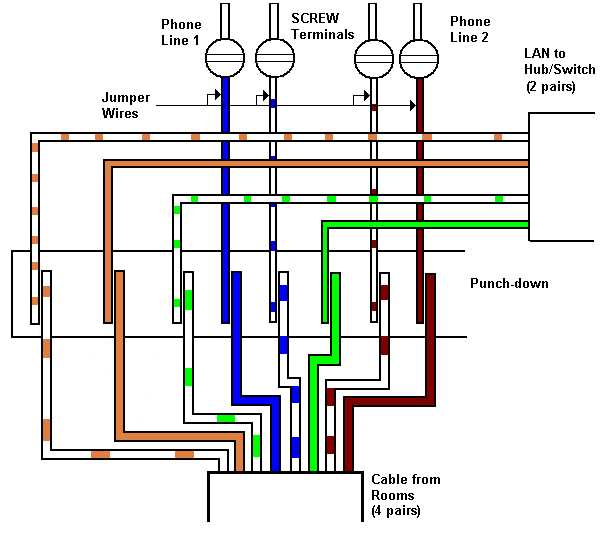

Connect each colored pair according to the T568A or T568B standard to maintain proper signal flow and prevent crosstalk. Use a reliable punch-down tool to secure each wire into the connector block firmly.
Trim excess strands before inserting into the plug to avoid shorts and maintain a clean termination. Ensure twisted pairs remain intact up to the connector to preserve transmission quality.
Verify pin order with a continuity tester after completing both ends of the cable. This confirms that each conductor aligns with its counterpart and prevents miswiring issues.
Label each connection clearly if multiple runs are installed in a patch panel or switch cabinet. Proper labeling speeds up troubleshooting and future upgrades while reducing downtime.
Cat5 Cable Connection Guide
Always terminate the conductors in a straight sequence with the orange pair first, followed by the green pair, then blue, and brown last. Keep the twisted pairs tightly wound to reduce interference and maintain signal quality.
Trim each wire to exactly 1.5 cm before insertion into the connector pins. A slight deviation can cause misalignment, resulting in intermittent connectivity or packet loss over long distances.
Use a quality crimping tool with ratchet action to ensure that each pin pierces the insulation and secures the conductor. Inspect the connectors under light to confirm all eight wires are fully seated and properly ordered.
Maintain a minimum bend radius of 5 cm near connectors to prevent internal stress. Avoid running the cable parallel to high-voltage AC lines to reduce electromagnetic interference that can disrupt data transmission.
Test the cable after assembly using a continuity tester. Check both straight-through and crossover arrangements depending on the endpoint devices. A failure on even one wire can prevent network negotiation or slow throughput.
Label each end immediately after termination to simplify troubleshooting. Color-coded tags or printed labels help distinguish links when multiple lines converge in patch panels or server racks, reducing installation errors.
Store excess cable in gentle coils with loops no smaller than 20 cm. Sudden kinks or tight loops can deform the insulation, compromise shielding, and eventually degrade the performance of your network runs.

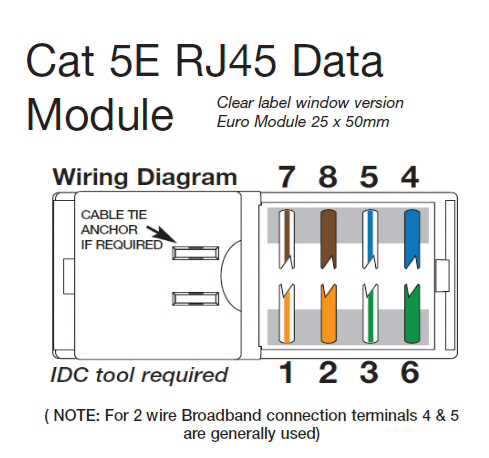

Standard Pinout Configurations for Cat5 Cables

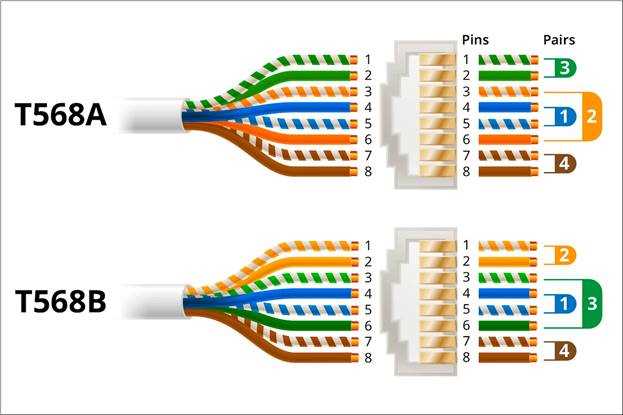

Use the T568B sequence for most Ethernet installations: pin 1 is white with orange stripe, pin 2 orange, pin 3 white with green stripe, pin 4 blue, pin 5 white with blue stripe, pin 6 green, pin 7 white with brown stripe, pin 8 brown. This arrangement supports gigabit speeds and minimizes crosstalk between pairs.
Straight-Through vs Crossover Connections

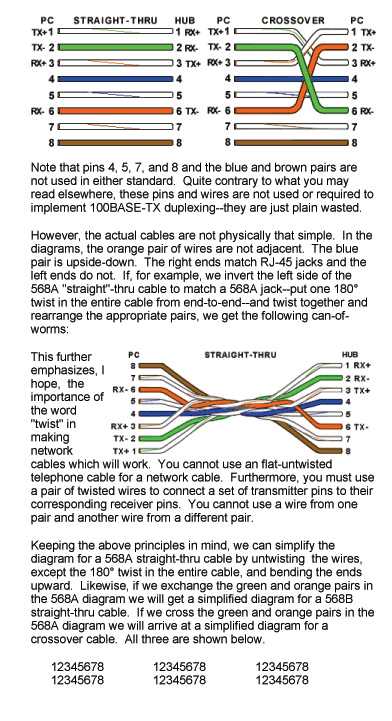

- Straight-through: both ends follow the same T568A or T568B order. Ideal for connecting computers to switches or hubs.
- Crossover: one end T568A, the other T568B. Use this for connecting two computers directly without an intermediate switch.
Ensure that each twisted pair remains tightly twisted up to the termination point. Untwisting more than 1 cm before crimping can degrade signal integrity, causing errors or slow connection speeds.
- Verify pin continuity with a tester after crimping to detect swapped or broken conductors.
- Check for shorts between pins; a short on any pair can prevent link negotiation entirely.
- Label each cable clearly after testing to simplify future maintenance.
Keep cable runs under 100 meters to maintain full data rates. Longer runs require signal boosters or switches to prevent attenuation. Maintain separation from power lines to reduce electromagnetic interference on sensitive pairs.
