To connect a 7-way connector correctly, start by ensuring you understand the color codes for each connection. The standard color scheme is critical for proper installation and avoiding short circuits. The first step is identifying the main functions of each connection, such as ground, left turn signal, right turn signal, and brake lights.
Next, make sure to carefully match each wire to its corresponding terminal. Using the correct order will prevent electrical failures or malfunctioning lights. It’s helpful to double-check each wire’s function against the manufacturer’s guide to avoid confusion and ensure reliability when towing.
Also, inspect the quality of the connectors and the wiring insulation. Poor connections can lead to intermittent power loss, while old or damaged wires may cause electrical shorts. Always test the installation before use, and be sure that the system is grounded properly to prevent voltage fluctuations.

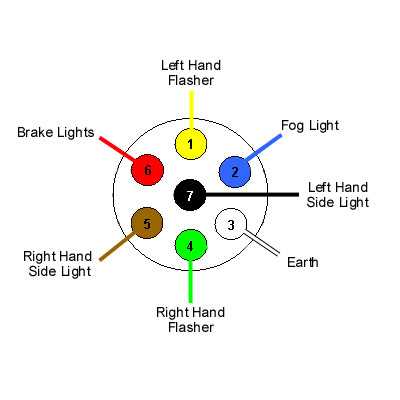

Wiring Diagram for a 7 Pin Trailer Socket
To ensure proper connections, follow the standard color coding for each terminal. Typically, the white wire is used for the ground, while the yellow wire controls the left turn signal, and the green wire controls the right turn signal. The brown wire handles the tail lights, and the blue wire powers the reverse lights. Double-check each wire’s function before connecting it to avoid any electrical faults or malfunctions.
When setting up the connections, make sure to securely attach the wires to the terminals and avoid loose connections, as they may lead to intermittent power loss. It’s also crucial to use quality connectors that are durable and resistant to corrosion, especially if the system will be exposed to moisture. Regularly inspect the connections to ensure the system functions smoothly and check that the ground connection is properly secured for a stable flow of electricity.
Step-by-Step Guide to Wiring a 7 Pin Trailer Socket
Start by preparing the necessary materials: a 7-pin connector, wires of appropriate length, a wire stripper, and a crimping tool. Begin by cutting the wires to the required lengths based on your setup. Strip the insulation from the ends of each wire to expose enough copper for proper connection. Make sure each wire is cut to the correct length before attaching it to the terminals to avoid any slack.
Next, connect each wire to its designated terminal in the connector. Follow the standard color-coding scheme: white for ground, yellow for left turn signal, green for right turn signal, brown for tail lights, blue for reverse lights, purple for auxiliary, and black for the electric brake. Secure the wires with the crimping tool, ensuring that each connection is tight and properly insulated. After completing the connections, double-check the wiring and test the system to ensure everything functions as intended.
