Disconnect power at the breaker panel before handling any conductors connected to the overhead rotor unit. Verify absence of voltage with a multimeter set to AC measurement. Residential installations usually supply 120 volts, and direct contact with live leads can damage the motor controller or cause injury.
Identify the four conductors leading to the speed selector module by checking insulation colors and terminal markings on the rotary controller. In most residential systems, one lead carries incoming line voltage while three additional leads route current to different motor coil taps that determine rotation speed levels.
Match each conductor with the correct terminal on the control module using the manufacturer terminal map printed on the housing. Incorrect placement can lock the rotor at one speed or prevent startup. Tighten terminal screws firmly and avoid leaving exposed copper strands that may touch adjacent contacts.
Route conductors neatly inside the mounting canopy and secure them with insulated connectors. Keep cables away from sharp metal edges and rotating parts of the overhead air circulator. After reassembling the housing, restore power and cycle through each speed position to confirm stable motor operation without vibration or unusual noise.
Step by Step Guide to Connecting a 4 Conductor Ceiling Fan Switch Safely
Turn off the circuit breaker supplying the overhead rotor unit before touching any conductors. Confirm absence of voltage using a multimeter set to AC measurement. Typical residential supply lines carry around 120 volts, so verifying isolation prevents damage to the speed control module and motor assembly.
Locate the four conductors linked to the rotary speed controller inside the canopy housing. One lead carries incoming line voltage while three additional leads distribute current to separate motor coil taps that control low, medium, and high rotation levels. Identify each conductor by insulation color and terminal labeling stamped on the controller body.
Attach each conductor to the matching contact point on the speed selector module following the manufacturer terminal layout printed on the casing. Tighten screw terminals firmly and trim any exposed copper strands to prevent accidental contact between adjacent terminals.
Arrange the conductors neatly inside the mounting cover so they remain clear of the rotating blades and motor shaft. Use insulated connectors and protective sleeves where conductors bend sharply near the metal housing.
Restore power and test all speed positions using the pull chain or rotary control. Verify that the rotor starts smoothly at each setting and that transitions between speeds occur without humming, vibration, or overheating.
Identifying Each Terminal on a 4 Conductor Ceiling Fan Switch

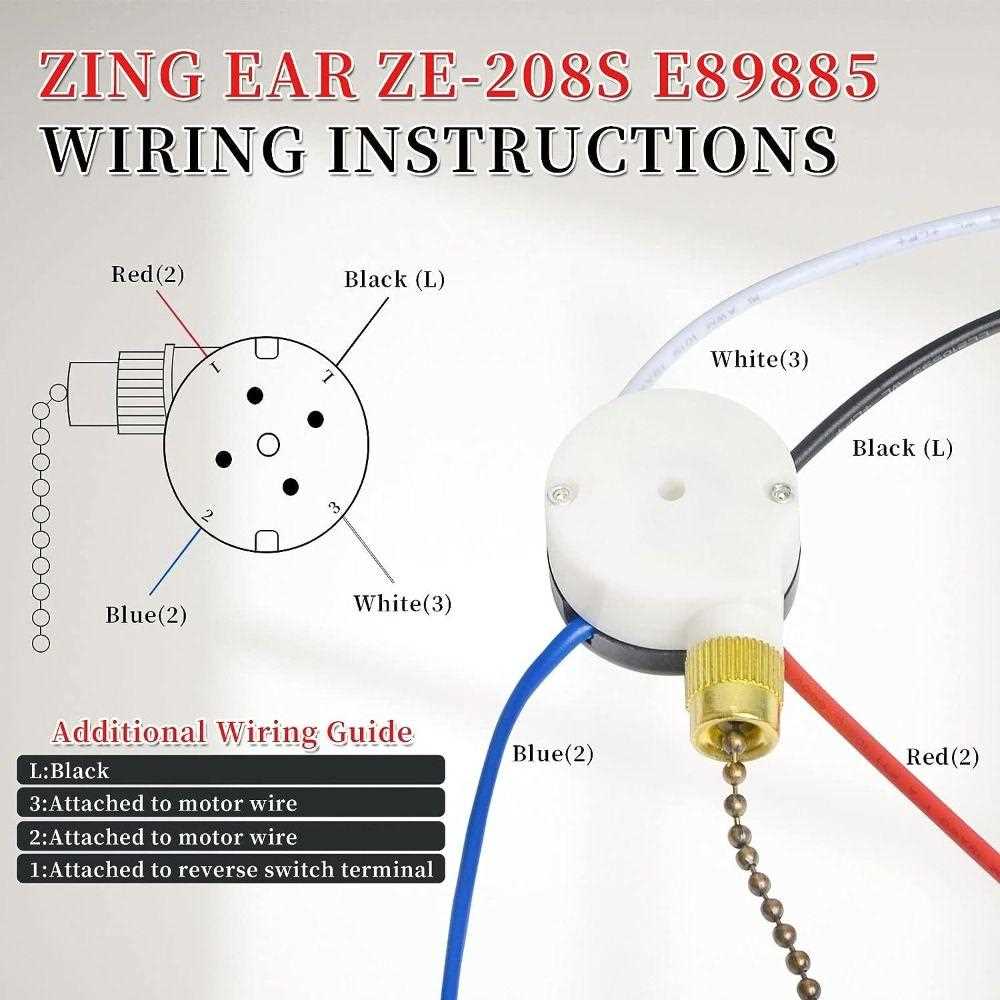

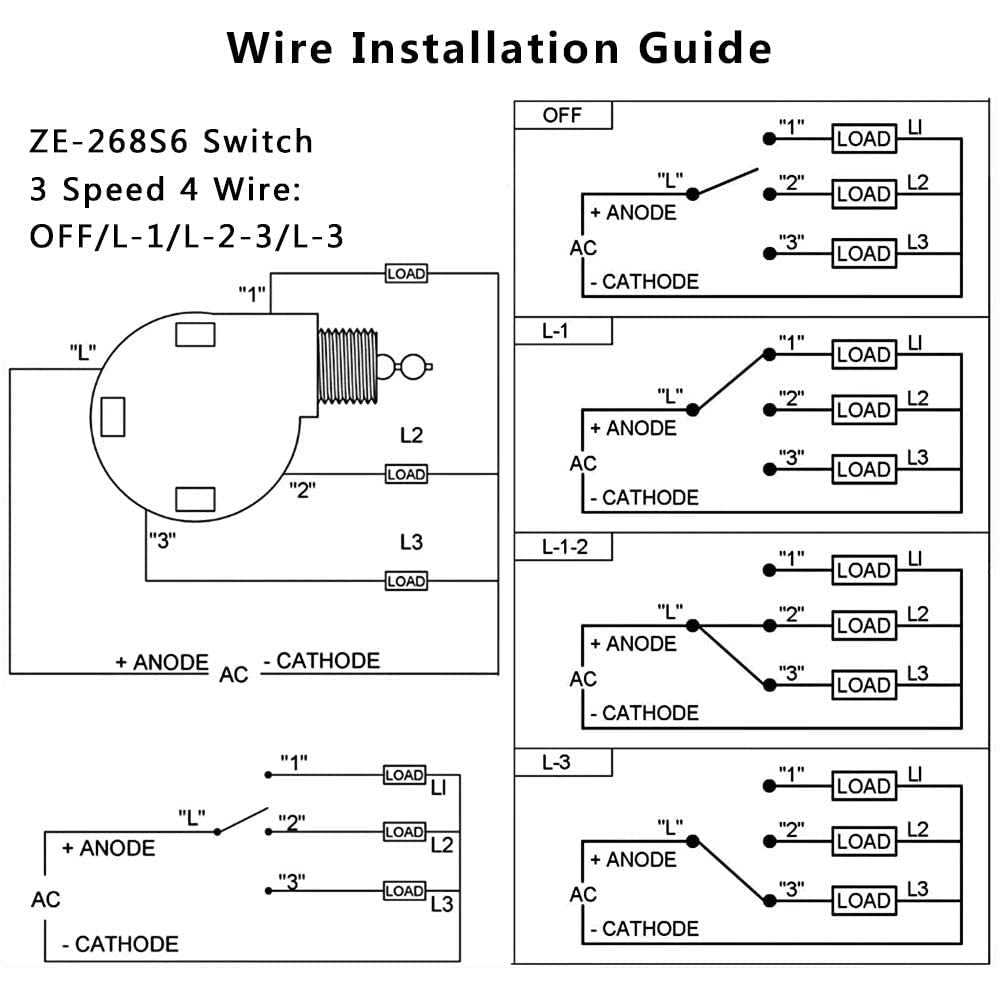

Inspect the control module housing and locate terminal markings stamped beside each contact point. Manufacturers typically label positions such as L, 1, 2, and 3 to represent incoming line power and the three motor speed outputs. Match conductor insulation colors with these labels before attaching them to the rotary speed controller.
Use a multimeter to verify continuity between contacts while rotating the speed selector so each terminal role becomes clear. Follow this quick identification process:
- L terminal – incoming line voltage from the household supply.
- Terminal 1 – connection leading to the motor coil that produces the lowest rotation speed.
- Terminal 2 – conductor supplying the medium rotation level.
- Terminal 3 – lead connected to the high-speed motor coil tap.
Confirm that each contact closes only at its intended selector position. Incorrect placement can cause the motor to stall or run at one speed only.
