Use the T568B standard for terminating 8-wire twisted pairs when assembling Ethernet links. This layout aligns the orange-white and orange pair at pins 1 and 2, providing optimal signal integrity for gigabit transmissions. For shorter runs under 50 meters, crossover layouts can be deployed to link devices directly without a switch.
Maintain consistent pair twisting up to the connector to reduce crosstalk and electromagnetic interference. Each pair’s color sequence should follow the selected standard from the termination point to ensure compatibility across routers, hubs, and patch panels. Avoid untwisting more than 0.5 inches near the plug.
Shielded versus unshielded variants matter depending on environmental noise. Shielded cables with grounded connectors are recommended in industrial or high-RF environments. For standard office deployments, unshielded twisted pairs provide sufficient performance while reducing installation complexity.
Test continuity and signal quality after completing connections. Use a network tester to verify pin-to-pin mapping and detect split pairs or misalignments. Proper labeling at both ends of the line prevents future troubleshooting errors and ensures reliable performance for high-speed data exchange.
Consider proper bend radius and strain relief during installation. Maintaining gentle curves and securing connectors prevents microfractures in copper conductors. Each segment should be routed to minimize tension, keeping the cable run within 100 meters for full gigabit bandwidth.
Wiring Blueprint for Category 5 Networks

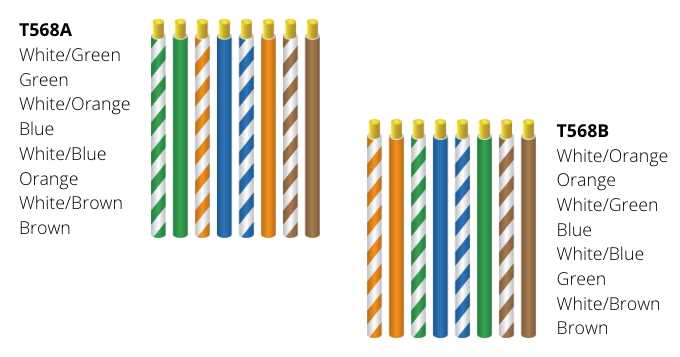

Use the T568B color sequence for standard Ethernet connectivity: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. This arrangement ensures optimal signal balance across all eight conductors.

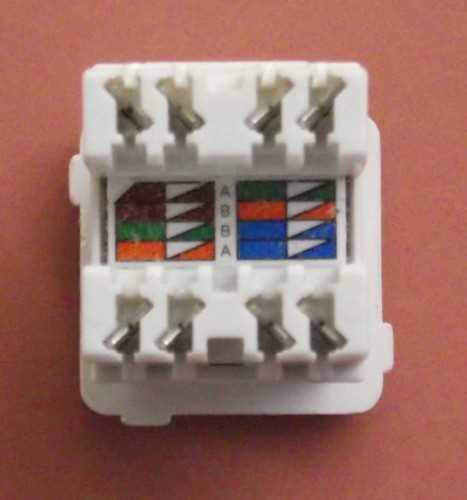

Terminate each connector precisely, maintaining a 0.5 cm strip of insulation removed. Excess conductor length can introduce crosstalk and reduce data integrity over distances exceeding 100 meters.
Shielded jacks reduce interference in environments with fluorescent lighting or heavy electrical equipment. Consider using shielded terminations in server rooms or industrial spaces.
- Check continuity with a cable tester after termination.
- Verify that pairs are not crossed or reversed, as misalignment can cause packet loss.
- Label each run for easier maintenance and future upgrades.
For installations requiring PoE (Power over Ethernet), ensure the orange and green pairs carry consistent polarity. Miswiring can damage powered devices.
When routing through walls, avoid sharp bends exceeding a 1-inch radius. Mechanical stress on the internal copper strands will degrade throughput and longevity.
Document every run, including wall outlets and patch panels. Maintaining a precise record speeds troubleshooting and reduces downtime in complex networks.

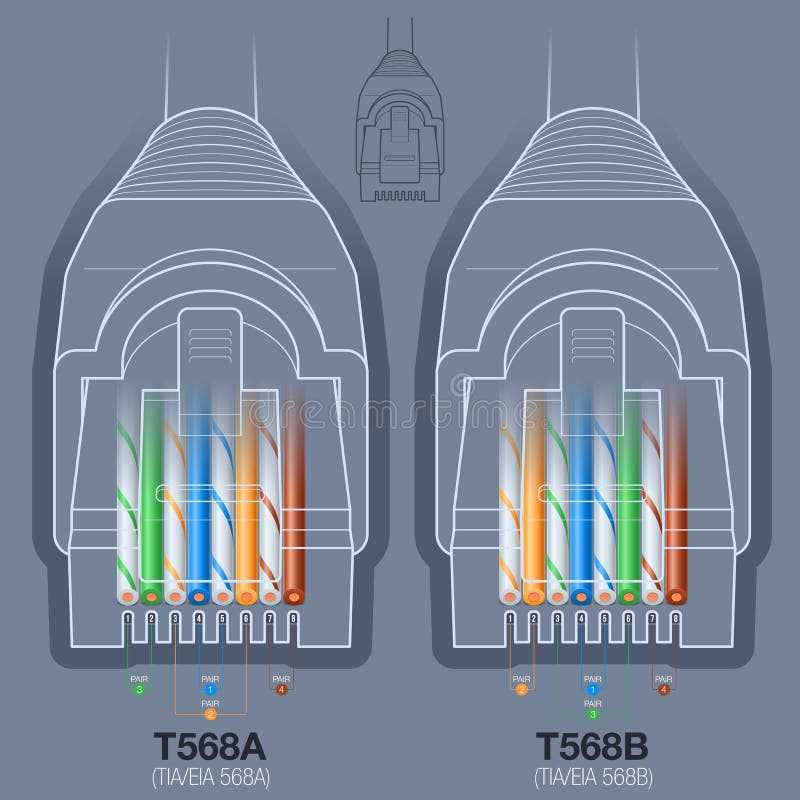

Choosing the Right Pinout for Your Cat 5 Cable
Use the T568B arrangement if you are connecting new devices in a network that already uses modern Ethernet standards; this layout assigns orange-white to pin 1 and green-white to pin 3, ensuring compatibility with most switches and routers.
For direct device-to-device connections without intermediate hubs, the T568A sequence can be applied. It positions green-white on pin 1 and orange-white on pin 3, which can prevent miscommunication between older equipment.
Crossed layouts should only be applied when linking two similar interfaces without auto-MDI/MDIX support. Swapping transmit and receive pairs avoids signal collision, placing the blue pair consistently on pins 4 and 5.
Verify that twisted pairs remain intact and untwisted segments do not exceed 0.5 inches near the connectors. Excessive untwisting increases crosstalk and degrades transmission over distances beyond 100 meters.
Labeling both ends of a cable according to the chosen scheme avoids confusion in patch panels. Using color-coded boots and printed identifiers speeds troubleshooting and reduces downtime in high-density installations.
When running multiple runs in the same conduit, stagger pinout patterns between adjacent cables to minimize electromagnetic interference. Keeping the brown and blue pairs at opposite sides can reduce coupling effects in dense bundles.
