Connect the compressor directly to a dedicated 240V circuit with a minimum 20-amp breaker. Ensure the capacitor is matched to the manufacturer’s specifications, typically 35-45 microfarads for residential setups. Use color-coded conductors: black for hot, white for neutral, and green or bare copper for ground to prevent miswiring.
Install a fused disconnect switch within sight of the exterior condenser. This switch should handle at least 30% above the compressor’s full-load amperage. Verify that contactor terminals are tightened to 12–15 lb-ft torque to avoid arcing or overheating under peak operation.
Run thermostat and sensor wiring separately from high-voltage lines. For distances over 50 feet, use 18/5 shielded cable to maintain signal integrity. Label each connection clearly at both ends to facilitate troubleshooting and future maintenance without confusion.
In multi-speed fan configurations, verify the connection sequence from the transformer to the blower motor. Capacitor wiring must match the fan’s specified microfarad rating, as mismatched values reduce efficiency and can damage the motor winding over time.
Before energizing the system, measure resistance across the compressor windings and check voltage at the terminal block. Ensure the control board is oriented correctly and that all safety interlocks, such as high-pressure and low-pressure switches, are installed in series with the control circuit to prevent operational hazards.

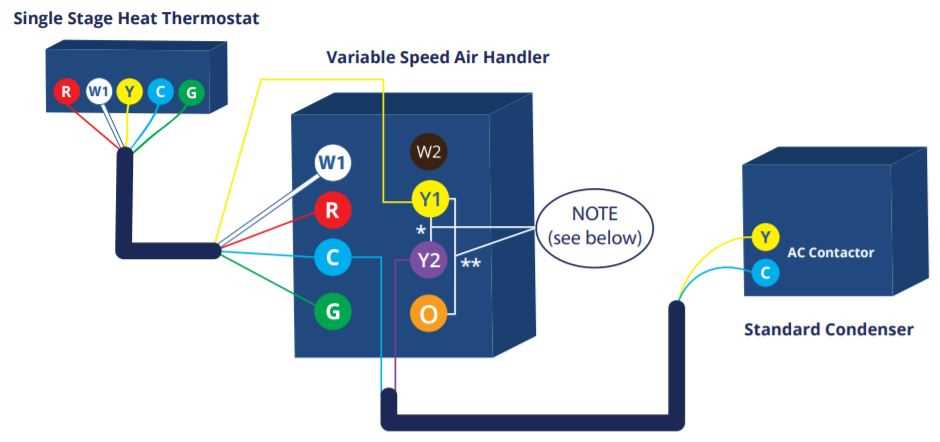

Wiring Layout for AC System
Connect the thermostat to the compressor relay using a 16-gauge copper conductor, ensuring the R wire links directly to the power terminal and the Y wire to the cooling relay. Ground all metallic components with a dedicated green conductor, avoiding shared circuits. Use wire nuts rated for 600V for all splices, and secure connections inside a junction box with strain relief clamps. Confirm voltage between L1 and L2 reads 240V before energizing the system.
For the fan assembly, run a separate line from the contactor to the motor terminals labeled F1 and F2. Install a 15-amp breaker on the control side and a 30-amp breaker for the compressor side to prevent overload. Follow this sequence:
- Disconnect main power.
- Attach R to the transformer input.
- Connect C to the common side of the thermostat.
- Link Y to the contactor coil.
- Check for proper capacitor orientation and motor rotation.
After completing the connections, verify continuity with a multimeter and ensure no terminals are loose before restoring power.
Identifying and Connecting Power Supply Wires Safely
Always turn off the main breaker before handling any electrical leads. Use a non-contact voltage tester to confirm that each conductor is de-energized. Label wires with colored tape corresponding to line (black or red), neutral (white), and ground (green or bare copper) before loosening any terminals.
Inspect insulation for cracks or frays. Replace any compromised cables, as even minor damage can trigger shorts or arcing. Keep conductors separated by at least half an inch inside junction boxes to prevent accidental contact between hot and neutral lines.
When attaching power cables to terminals, tighten screws until firm but avoid over-torquing. Over-tightened connections can deform terminal plates, increasing resistance and heating. Use a torque screwdriver calibrated to the manufacturer’s specifications whenever possible.
Grounding requires connecting the green or bare conductor directly to the chassis screw or grounding bus. Do not rely on metallic conduits alone as a return path. Continuity should be checked with a multimeter reading under 1 ohm before energizing the system.
After all connections are secure, gently tug each wire to ensure it is seated correctly. Close the access panel and restore power gradually while monitoring for unusual sounds or smells. Any irregularity should prompt immediate shutdown and re-inspection of all fastenings and cable routing.
